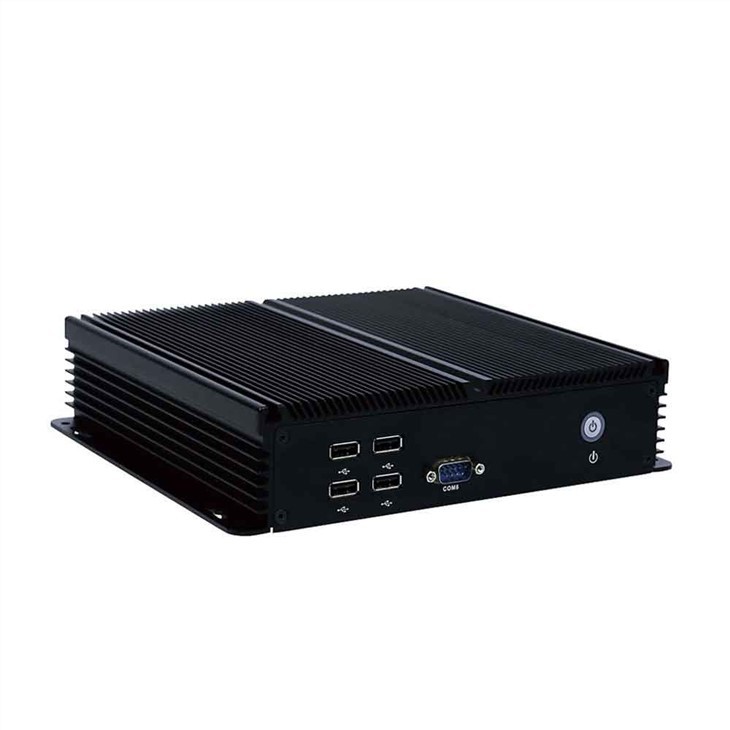

Intel 4th I5 4300U Fanless Industrial Pc
◇ Txhawb Intel Core i5 4300U dual core processor
◇ Max. Txhawb DDR3L 8G RAM
◇ Txhawb 1 * MSATA Qhov, 1 * 2.5 "HDD
◇ Txhawb WIFI / 3G / 4G (Xaiv ib qho ntawm peb)
◇ Txhawb 6 * COM (COM3 RS232/422/485 yeem)
◇ Txhawb OS:
Xa kev nug
Product Details ofIntel 4th I5 4300U Fanless Industrial Pc

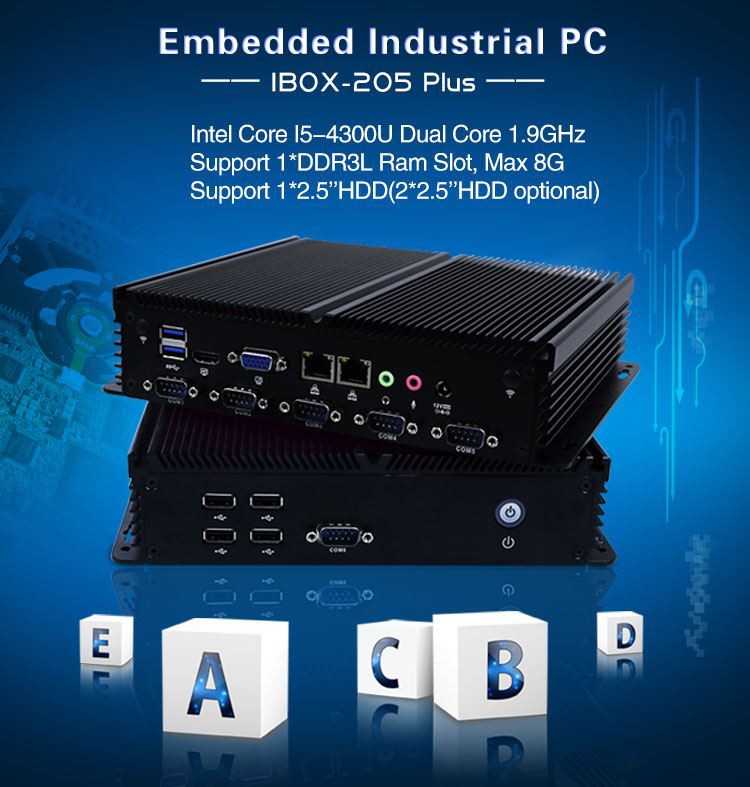

Lub Siab kawg IBOX-205 Ntxiv I5 4300U embedded industrial pc yog ib qho txaus siab rau ib qho ntawm cov tshuab computer, thiab tus nqi pheej yig. Tsim los ntawm Intel Core i5 4300U dual core plaub-xov xov processor, nws nruab DDR3L 1333/1600MHz SODIMM RAM Slot, Max. Txhawb 8GB nco, kev koom ua ke Intel HD Graphics 4400 core graphics card, 1 * VGA zaub interface, 1 * HDMI high-txhais zaub interface (txhawb synchronous / asynchronous dual zaub), 1 * MINI PCIE Slot (WIFI / 3G / 4G Yeem), Embedded SIM Slot, txhawb 1 * MSATA qhov, 1 * 2.5 nti hard drive bay (optionally txhawb 2 * 2.5 nti hard drive bay).
Qauv | IBOX-205 Ntxiv |
Xim | Dub（Xim tuaj yeem kho tau） |
Khoom siv | High-zoo txhuas txhuas,ntooxidation ntawm anodic |
Processor | Onboard Intel Core i5 4300U（dualcore quad threading,1.9gz ua,Max. Turbo2.9gz ua）; |
RAM | Txhawb 1 * DDR3L 1333 / 1600MHz SODIMM RAM Qhov,Max. Txhawb 8 GB |
BIOS | AMI UEFI BIOS |
Zaub Chip | Kev koom ua keIntel HD Graphics 4400 |
Display Port | 1 * VGA,1 * HDMI chaw nres nkoj（Txhawb synchronous thiabasynchronous dual zaub） |
Pem hauv ntej I/O | 4 * USB2 0,1 * COM,1*Hloov fais fab; |
Rov qab I/O | 2*USB3.0,5 * COM（COM3 RS232/422/485 yeem）,2 * 1000M LAN |
1 * VGA,1 * HDMI chaw nres nkoj,1 * DC12V input,1 * Mic,1 * Kab tawm | |

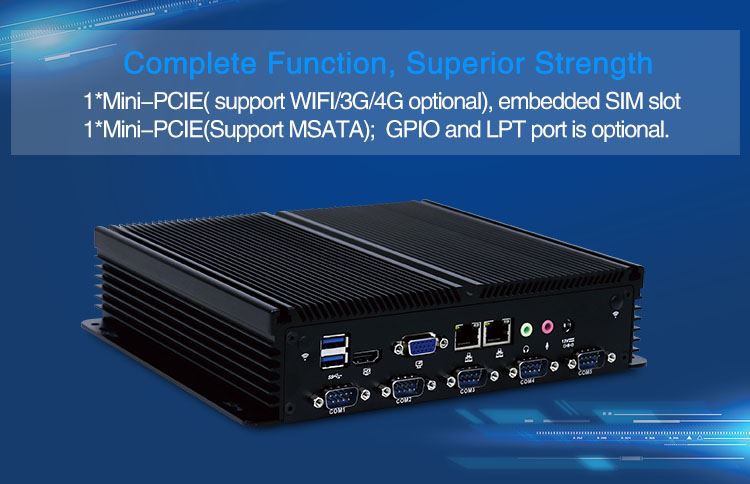

Expansion Qhov | Txhawb 1 * MINI PCIE Slot（Txhawb MSATA）; |
Txhawb 1 * MINI PCIE Slot（WIFI / 3G / 4G yeem）,Embedded SIM Slot; | |
Xaiv qhov chaw nres nkoj:GPIO,LPT,PS/2 (Standard version tsis suav nrog cov chaw nres nkoj) | |
Network | 2*Intel i211-AT 1000M LAN |
Cia | Txhawb 1 * MSATA Qhov,1 * 2.5" HDD（2 * 2.5" HDD xaiv tau） |
Input voltage | Txhawb DC 12V Input |
Lwm Txoj Haujlwm | Nws pib fais fab thaum muaj hluav taws xob,Timing khau raj,Wake ntawm LAN,PXE khau raj,Saib xyuas（0-255 qib）(Standard version tsis teeb cov haujlwm no) |
Ua haujlwm Temp | 0 degree-ntxiv 50 degree（Kev lag luamHDD）,-20 degree-ntxiv rau 60 degree（Kev lag luamSSD）,Nto cua ntws |
Ua haujlwm av noo | 0 feem pua-95 feem puatsis-condensing |
Daim ntawv pov thawj | CE, CCC, FCC Chav A, ROHS |

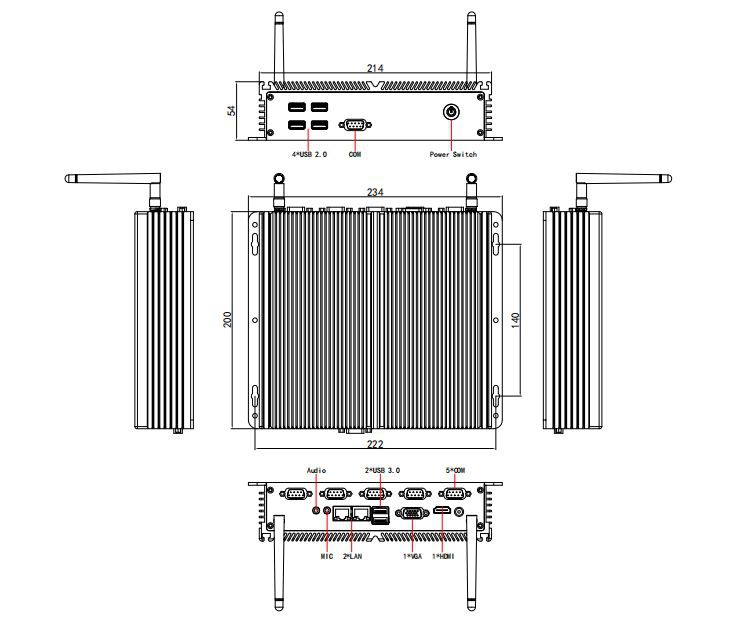

Dimension | 234 * 200 * 54mm |
Net nyhav | 2 0kg |
Daim ntawv thov | Industrial Automation, Kev Kho Mob, Logistics Transportation, Warehouse, Electronic Education thiab lwm yam. |
Cov lus qhia sov: Yog tias koj txaus siab rau qhov no intel core I5 4300U embedded industrial pc, thiab xav paub ntau ntxiv, xws li cov lus hais, khoom, kev daws teeb meem, thiab lwm yam, peb kuj muaj lwm cov khoom lag luam, xws li mini pc, industrial pc, network sever, thiab lwm yam., txais tos sab laj rau kuv 5 4300U embedded industrial pc kom tau txais cov ntsiab lus ntxiv, Jessie Wang tuaj yeem muab kev pab ntxiv rau koj.
Email:jessie@iwilltech.cn
Skype:iwilljessie ua
