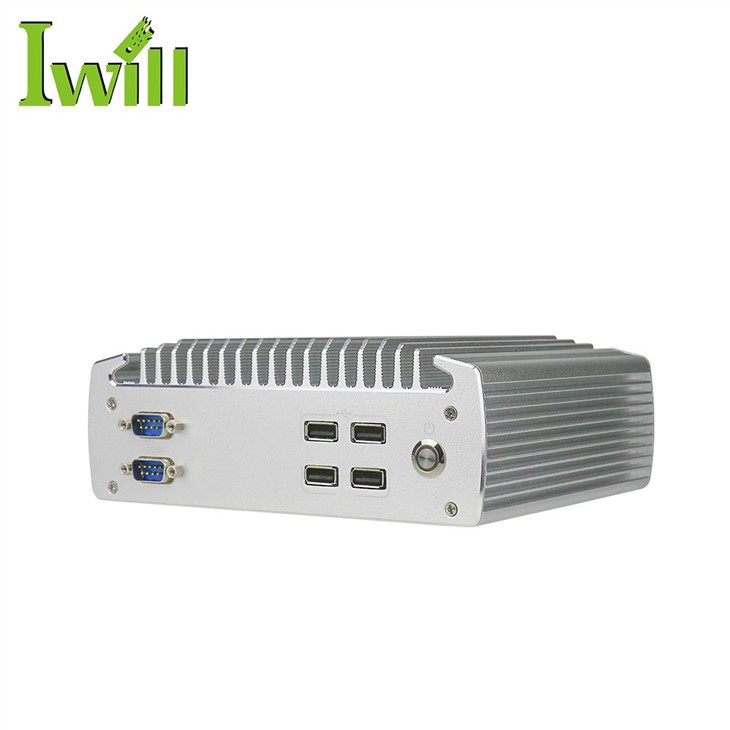

Embeded Industrial Computer
◇ Txhua tus qauv txhuas, tsis muaj kiv cua tsim;
◇ Txhawb Intel Celeron J1900 quad core processor;
◇ Max. Txhawb DDR3L 8G RAM;
◇ Txhawb 1 * MSATA Qhov, 1 * 2.5 "HDD;
◇ Txhawb 1 * Mini PCIE Slot;
◇ Txhawb 6 * COM (COM1, COM2 RS232 lossis 485 Xaiv);
◇ Txhawb OS:
Xa kev nug
Product Details ofEmbeded Industrial Computer

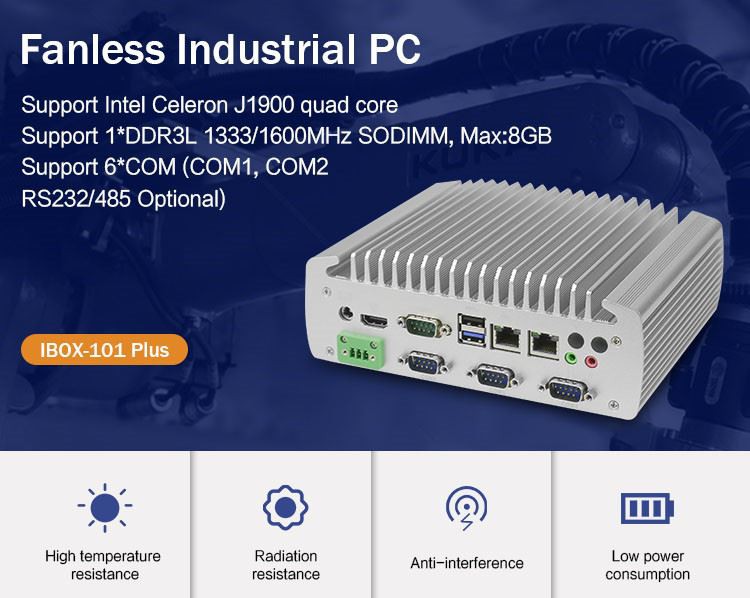

IBOX-101 Plus yog lub tshuab hluav taws xob tsis tshua muaj hluav taws xob tsis muaj hluav taws xob hauv computer. Onboard Intel Celeron J1900 (Quad core quad threading, 1.99GHz, TDP: 10W), Kev them nyiaj yug 1 * DDR3L 1333/1600MHz SODIMM RAM Slot, Max turbo 8GB, Txhawb 6 * COM (COM1, COM2 RS232/485) Txhawb 1 * Mini PCIE Slot; Txhawb 1 * MSATA qhov, 1 * 2.5 "HDD;
embedded industrial computer | |
Qauv | IBOX-101 Ntxiv |
Xim | Silver (xim tuaj yeem kho tau) |
Khoom siv | High-zoo tag nrho txhuas, nto anodic oxidation |
Processor | Onboard Intel Celeron J1900 (Quad core quad threading, 1.99GHz, TDP: 10W) |
RAM | Txhawb 1 * DDR3L 1333 / 1600MHz SODIMM RAM Qhov, Max turbo 8GB |
BIOS | AMI UEFI BIOS |
Zaub Chip | Integrated Intel HD Graphics |

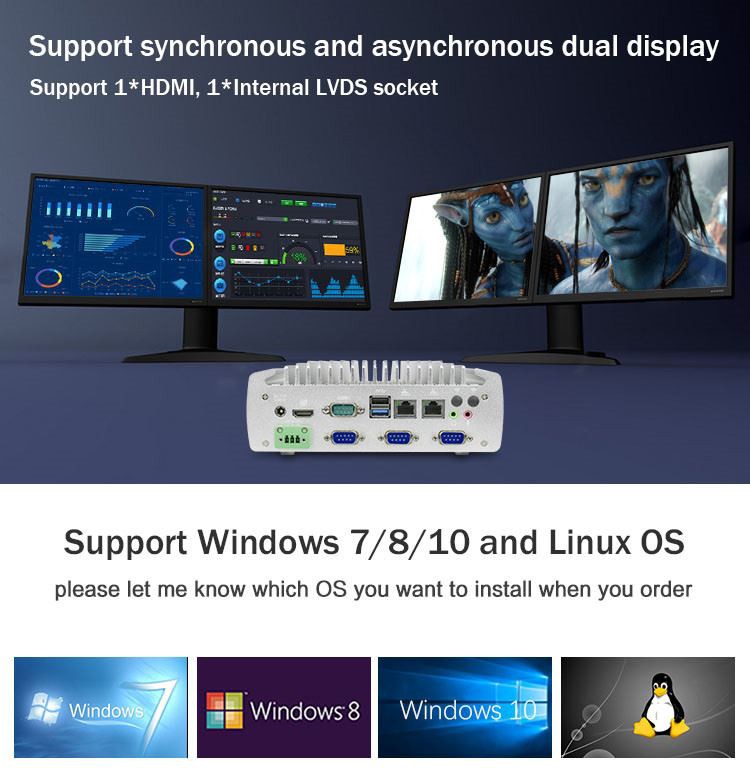

Display Port | 1 * HDMI, 1 * Built-in LVDS (Kev them nyiaj yug synchronous thiab asynchronous dual zaub) |

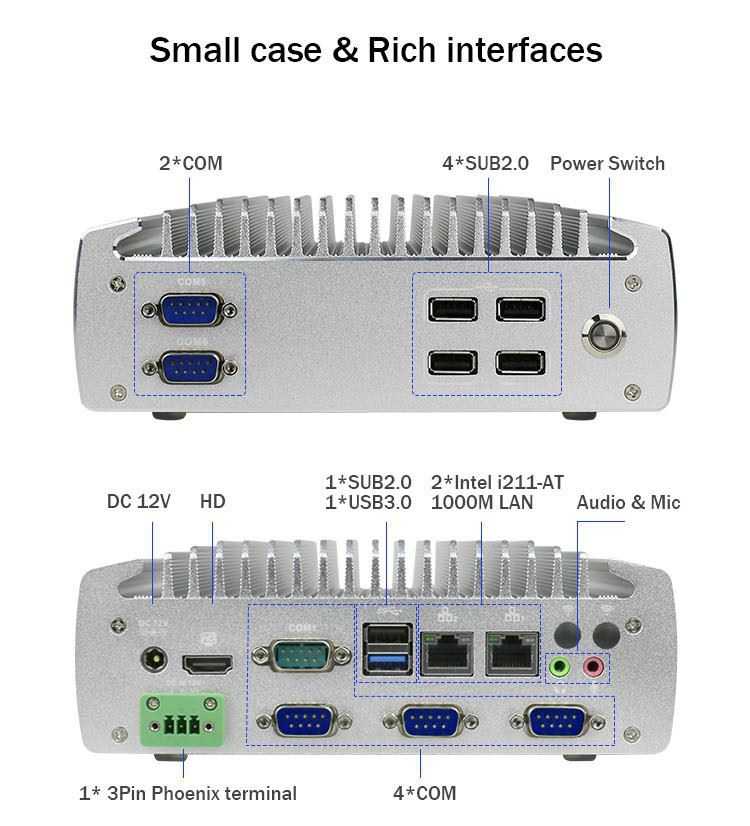

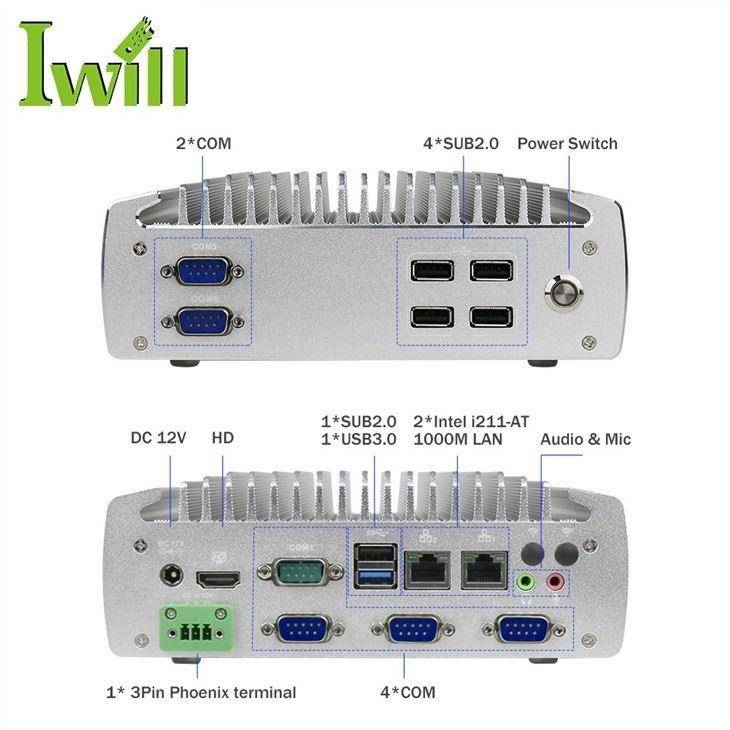

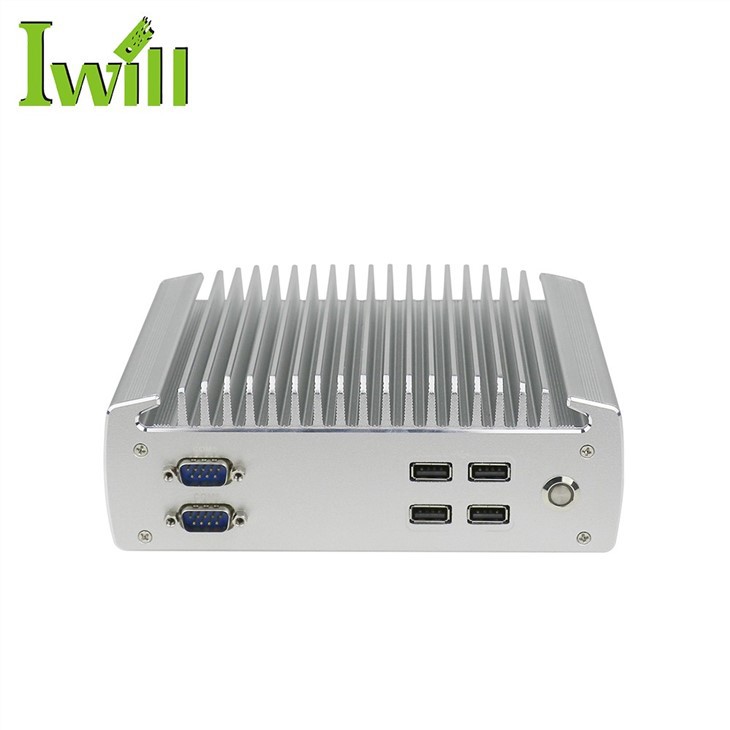

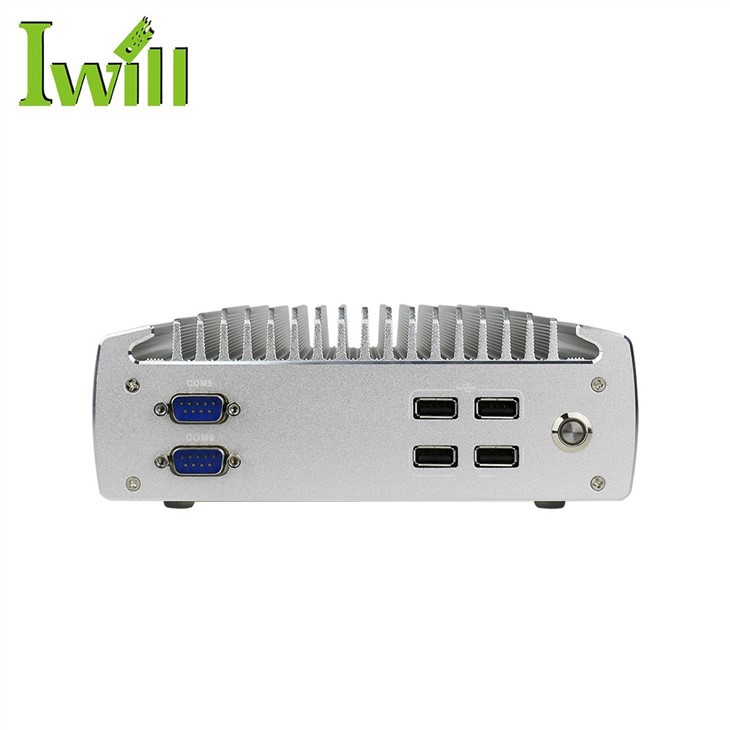

Pem hauv ntej I/O | 4*USB2.0, 2*COM, 1*Power Switch |
Rov qab I/O | 1*USB3. |
2 * 1000M LAN, 1 * HDMI, 1 * DC 12V Input, 1 * Mic, 1 * Kab Tawm | |

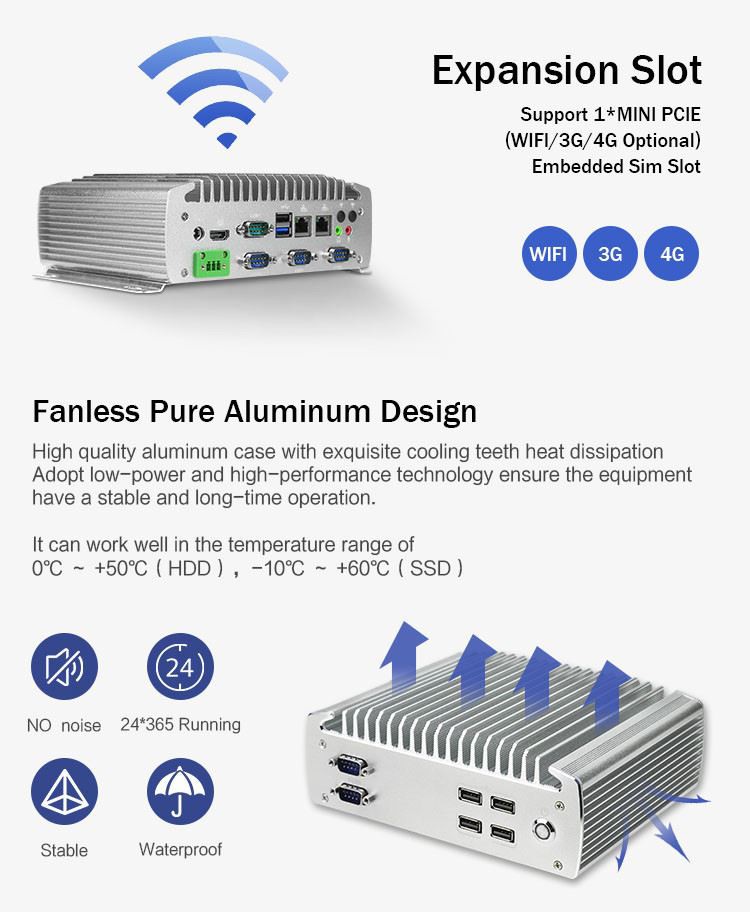

Expansion Qhov | Txhawb 1 * MINI PCIE Slot (Support MSATA) |
Txhawb 1 * MINI PCIE Slot (WIFI / 3G / 4G yeem), Embedded SIM Slot | |
Network | 2*Intel i211-AT 1000M LAN |
Cia | Txhawb 1 * MSATA Qhov, 1 * 2.5 "HDD |
Input voltage | Txhawb DC 12V Input |
Lwm Txoj Haujlwm | Pib lub hwj chim thaum muaj hluav taws xob, Timing khau raj, Wake ntawm LAN, PXE khau raj, Watchdog (0-255 qib) (Standard version tsis teeb tsa cov haujlwm no) |
Ua haujlwm Temp | 0 degree - ntxiv rau 50 degree (Commercial HDD), -20 degree - ntxiv rau 60 degree (Industrial SSD), Surface air flow |
Ua haujlwm av noo | 5 feem pua - 95 feem pua tsis-condensing |

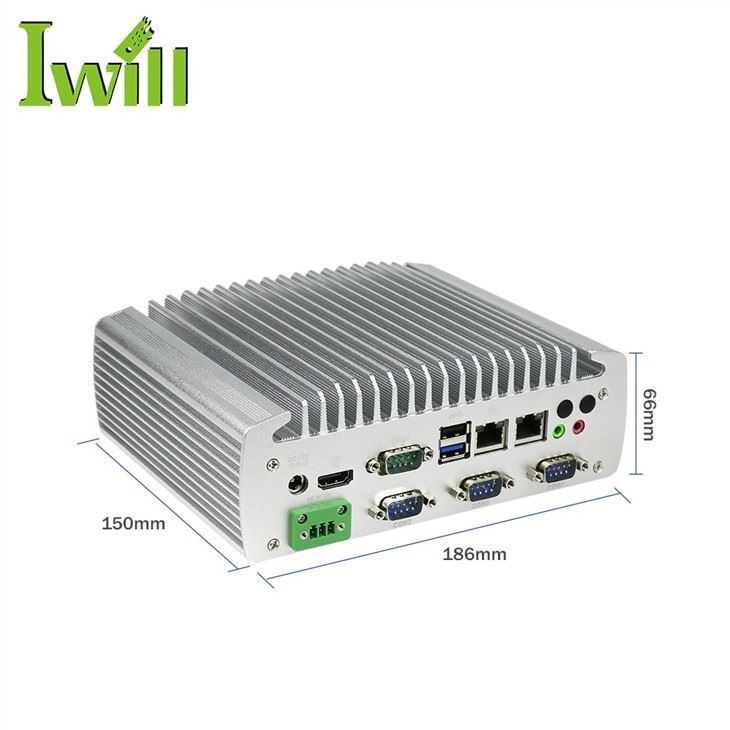

Dimension | 186 * 150 * 66mm 【Tsis suav nrog cov brackets】 |
Net nyhav | 1.6kg 【Tsis suav nrog cov brackets】 |
101 ntxiv yog qhov pheej yig dua ntawm lub tshuab computer. Nws yog tus qauv yooj yim ntawm kev lag luam computer. Nws yog Intel celeron J1900 quad-core processor. Cov ntaub ntawv yog dawb. Ib qho Intel i211-AT Gigabit Ethernet chaw nres nkoj, ib qho HDMI cov lus txhais tau zoo interface, thiab ib lub qhov (socket) built-in LVDS (txhawb synchronous / asynchronous dual zaub).
thaum koj muaj txog kev lag luam project koj tuaj yeem ntseeg thiab xaiv Iwillminipc rau order.besides, peb muab indsutrial embedded system customized.Zoo siab txais tos rau kev sab lajJessie Wangntawm professional!
