Pheej yig Mini PC
◇ Mini PC los nrog Intel Celeron J1900 / Intel Pentium N3540 Quad core CPU;
◇ Integrated Intel HD Graphics;
◇ Txhawb 1 * DDR3L RAM qhov, Max. Txhawb 8GB;
◇ 1*VGA,1*HD,1*USB3.0,5*USB2.0,1*RS232 COM;
◇ 1 * MINI PCIE Slot (WIFI / BT yeem);
◇ Txhawb OS:
Xa kev nug
Product Details ofPheej yig Mini PC

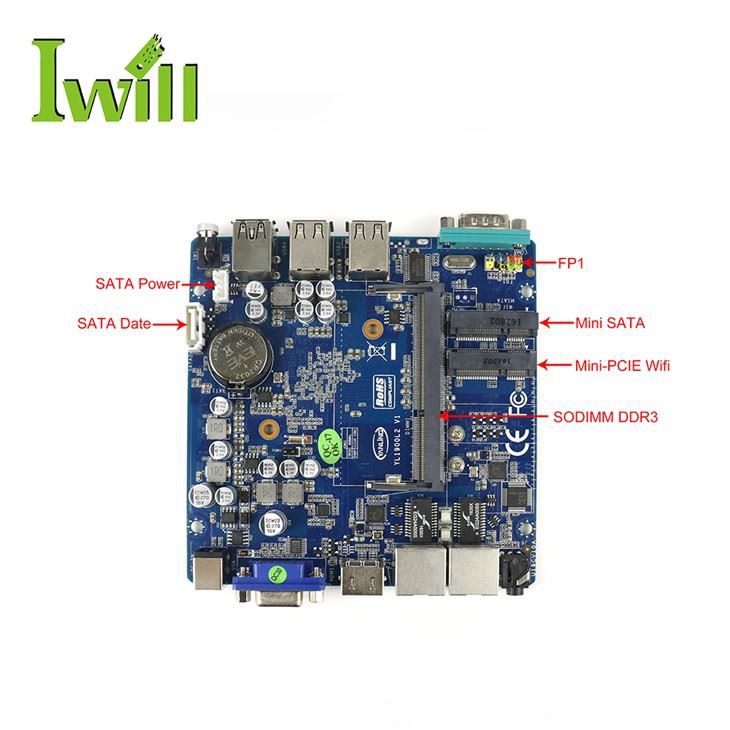

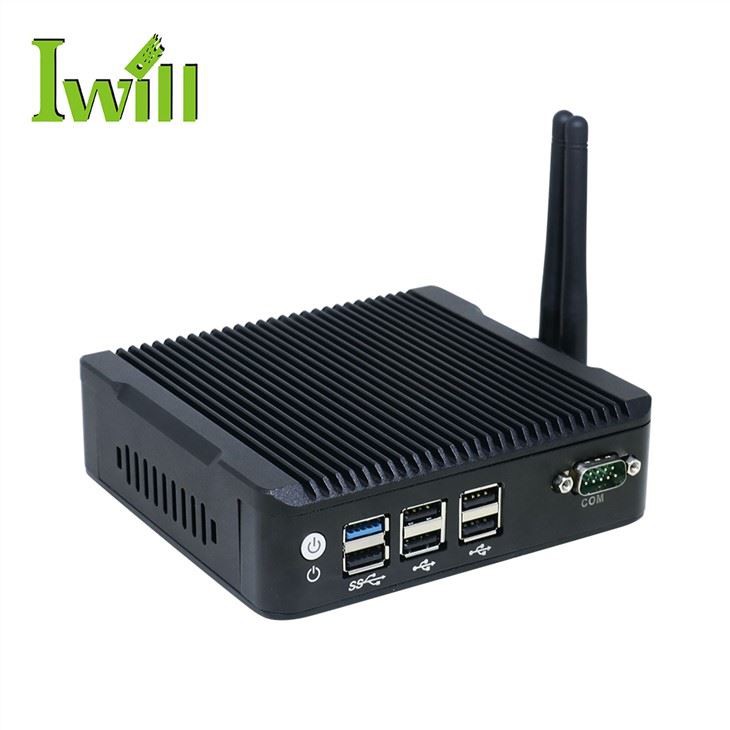

NANO N3 yog ib qho tsis tshua muaj hluav taws xob tsis tshua muaj hluav taws xob pheej yig mini PC. Nws siv Intel® Celeron™ J1900 / Intel Pentium N3540 quad core processor, txhawb Windows 7/8/10 & Linux OS thiab lwm yam, Integrated Intel HD Graphics, 2 * 10/100/1000M RTL8111E 1000M LAN, Txhawb 1 * 3DDR3/L 1 1600MHz SODIMMRAM qhov, Max. Txhawb 8GB, txhawb 1 * MSATA thiab 1 * 2.5 nti HDD, yooj yim heev rau siv.
Specification
| Module | Nano-N3 pheej yig Mini PC |
Processor | Intel Celeron J1900 (Quad core quad threading, 2MB Thib Ob Cache 1.99GHz) |
| Intel Pentium N3540 (Quad core quad threading, 2MB cache, 2..16GHz, Max turbo 2.66GHz) | |
| Zaub Chip | Intel HD Graphics, txhawb VGA, HDMI |
| RAM | 1 * DDR3L Memory Slot 1333/1600MHz, Max. Txhawb 8 GB |
| LAN | 2 * 10/100/1000M RTL8111E LAN |
| Cia | Txhawb 1 * MSATA, 1 * 2.5 nti HDD |
| Kev nthuav dav | Txhawb 1 * Mini PCIE (WIFI / BT Yeem) |
| USB | Txhawb 1*USB3.0 thiab 5*USB2.0 |
| COM | Txhawb 1 * RS232 COM |
| Dimension | 134 * 126 * 38.5 hli |
| Qhov hnyav | 1 KG |
| Fais fab mov | DC 12 V |

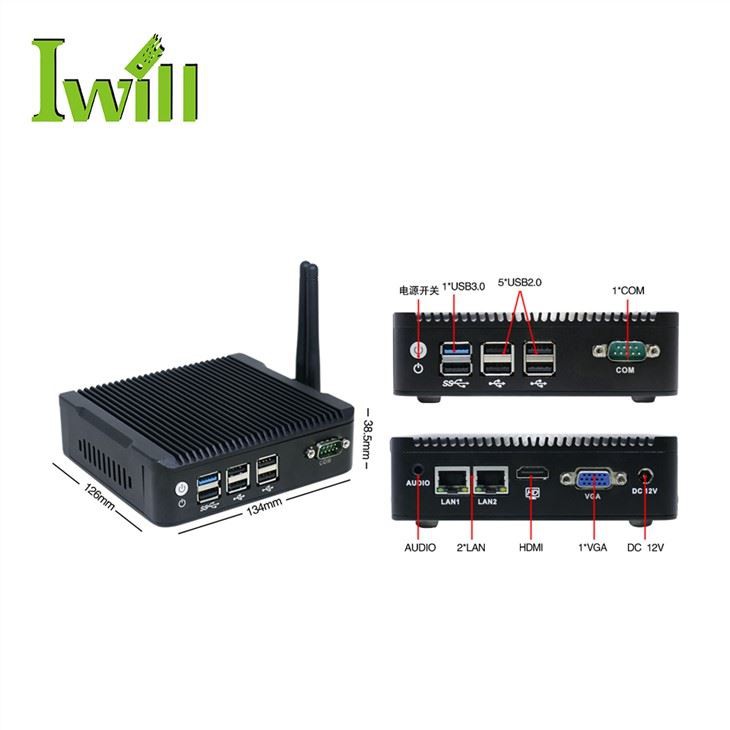

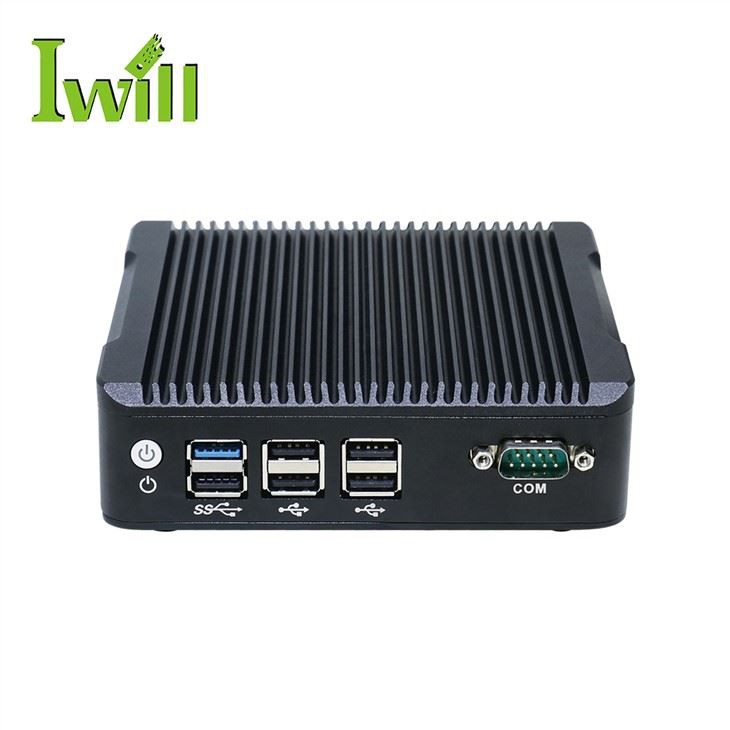

Pem hauv ntej I/O | 1 * Fais fab hloov,1*USB3.0,5 * USB2 0,1 * RS232 COM |

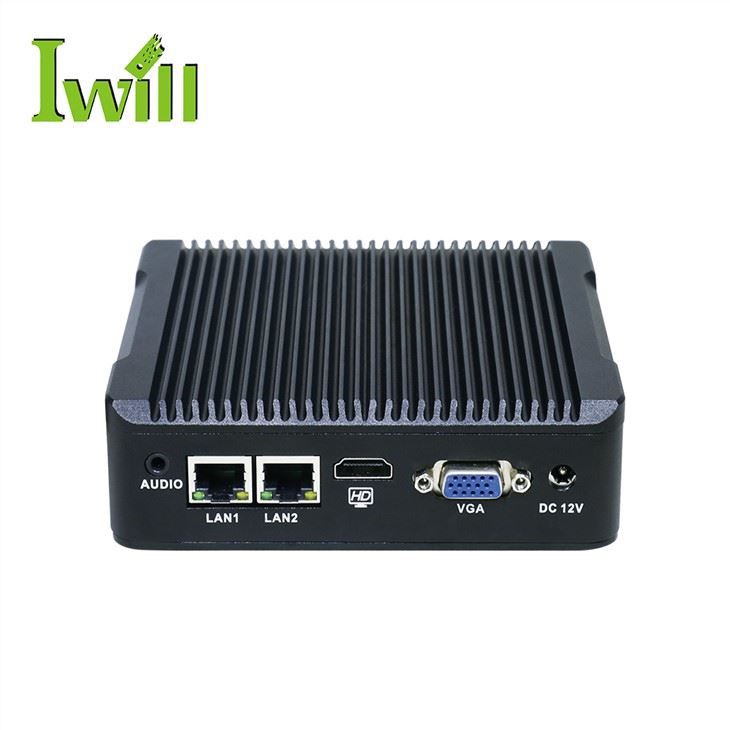

Rov qab I/O | 1* Audio,2 * RJ45 LAN,1 * VGA,1 * HDMI chaw nres nkoj,1 * DC Input |
Expansion Qhov | Txhawb 1 * MINI PCIE Slot（WIFI thiab BluetoothXaiv tau） |
Txhawb 1 * MINI PCIE Slot（Txhawb MSATA） | |
InputVoltage | Txhawb DC 12V Input |
Ua haujlwm av noo | 5feem pua - 95 feem pua tsis-condensing |
| Ua haujlwm Temp | -10 degree -50 degree |
Nta
1. Txhawb synchronous thiab asynchronous dual zaub
Nano-N3 yog nruab nrog puv HD 1080p dual zaub, ua ke nrog Intel HD cov duab, thiab txhawb nqa dual HD ports,
2. Kev ua haujlwm tsis cuam tshuam 7 * 24 teev hauv ib hnub!
Muaj zog cua sov dissipation muaj peev xwm, yuav luag tsis muaj suab nrov
3. Me me thiab kev ua haujlwm siab
Qhov loj me yog 134 * 126 * 38.5 mm, thiab lub khoos phis tawj tuaj yeem muab tso rau ntawm lub monitor los ntawm VESA bracket, yog li qhov chaw me me.
N3 yog cov khoom muag zoo tshaj plaws ntawm IWILL, nrog kev siv hluav taws xob tsawg, lub cev compact thiab tsis muaj qhov chaw (134 * 126 * 38.5mm), nws yog qhov kev xaiv zoo tshaj plaws rau chaw ua haujlwm. Cov ntaub ntawv yog ua los ntawm tag nrho cov txhuas alloy qauv, kiv cua tsim, txhawb ib MSATA, ib tug 2.5-inch hard disk qhov, txhawb DC12V input, ua hauj lwm av noo 0 degree ~ ntxiv rau 50 degree (commercial HDD ), -20 degree ~ ntxiv rau 50 degree (kev lag luam SSD), huab cua ntws ntawm qhov chaw.
Cov lus qhia sov: Yog tias koj txaus siab rau qhov pheej yig Mini PC no, thiab xav paub ntau ntxiv, xws li cov lus hais, khoom, kev daws teeb meem, thiab lwm yam, txais tos hu rau!
