12.1 Nti Muaj Vaj Huam Sib Luag PC Windows 11
Txais Aluminium alloy chassis, 12.1 nti fanless vaj huam sib luag PC
Intel 8th core i5 / i7 Quad core industrial vaj huam sib luag PCs
Txhawb TPM2.0, Windows 11 OS
6 * COM yeem, 2 * RS232/422/485 COM
Xa kev nug
Product Details of12.1 Nti Muaj Vaj Huam Sib Luag PC Windows 11
Product Overview

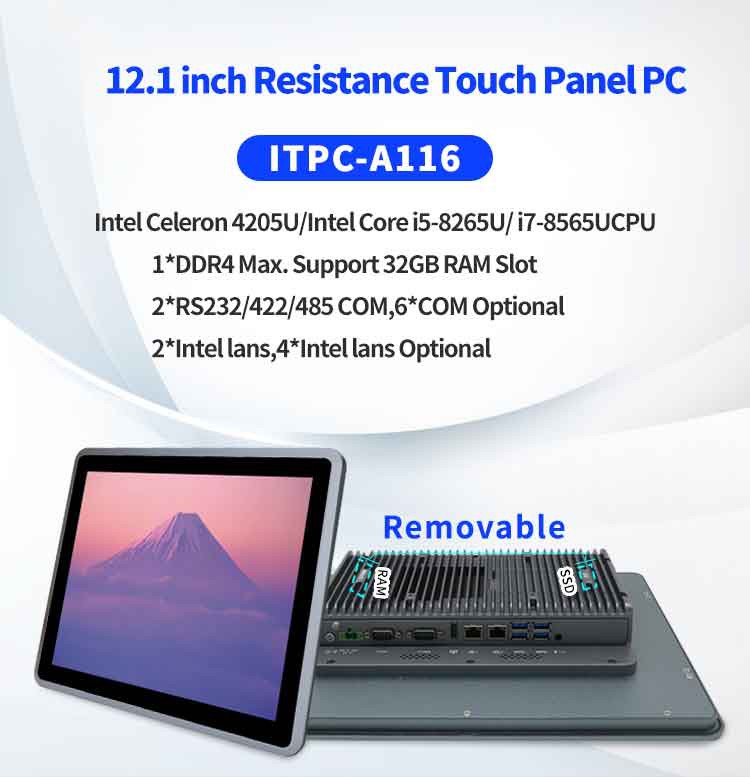

ITPC-A116 yog kiv cua tsis muaj zog kov muaj vaj huam sib luag pc, vaj huam sib luag pc txais Intel Core i5 / i7 quad-core processor, txhawb Windows 10, Windows 11, Linux operating systems, hard disk txhawb M.2 thiab 2.5-nti hard disk , uas yog heev yooj yim mus use.

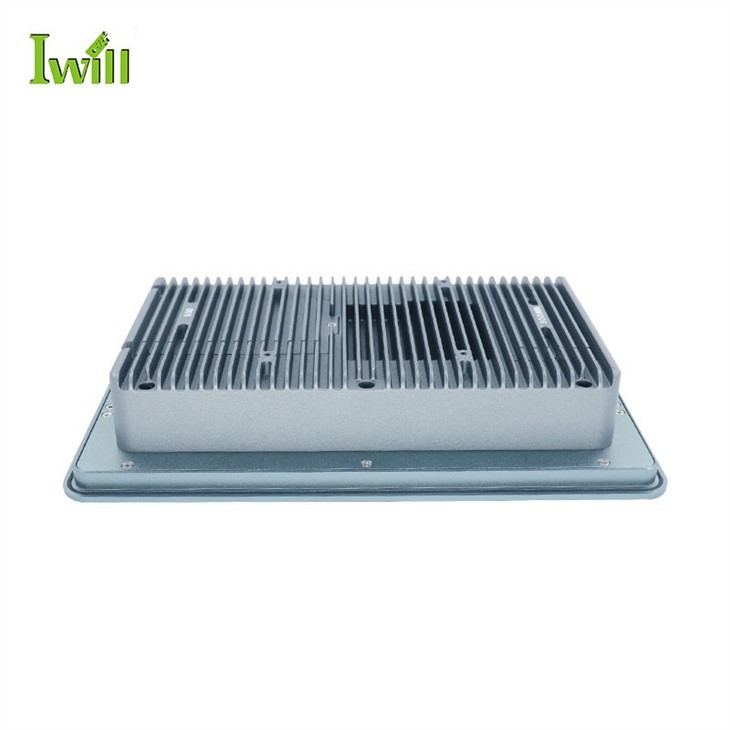

Lub kov muaj vaj huam sib luag pc yog tsim los ntawm cov ntaub ntawv txhuas ntshiab, cov qauv tsis muaj kiv cua, zoo plua plav, cua sov dissipation, tiv thaiv kev co thiab EMC kev ua tau zoo, kev ntseeg siab, thiab muaj zog ib puag ncig.
Specification
Qauv | TSI-A116 |
Xim | Titanium grey (xim tuaj yeem hloov kho) |
Khoom siv | Aluminium alloy chassis |
Processor | Intel Celeron 4205U (Dual core dual threads, 1.8Ghz, 2MB Cache); |
| Intel Core i5-8265U (Quad core yim threads, 1.6Ghz, Max turbo3.9Ghz, 6MB Cache); | |
| Intel Core i7-8565U (Quad core yim threads, 1.8Ghz, Max turbo4.6Ghz, 8MB Cache); | |
RAM | Txhawb 1 * DDR4 2133/2400 SODIMMMemory Slot, Max. Txhawb 32GB |
BIOS | AMI EFI BIOS |
Zaub Chip | IntegratedIntelUHD Graphics |
Display Port | 1 * HDMI, 1 * LVDS (Kev txhawb nqa synchronous thiab asynchronous dual zaub) |

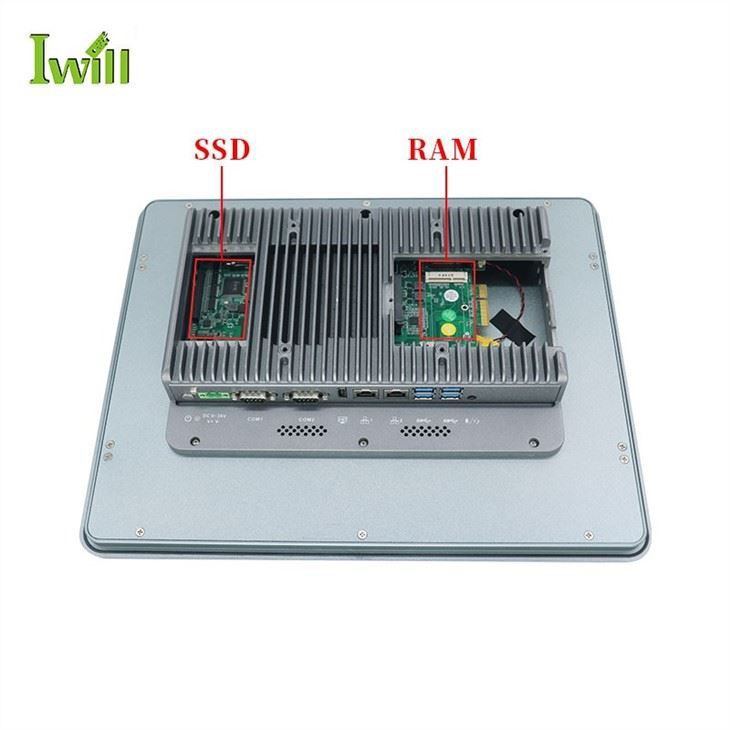

Cia | Onboard 1 * M.2 2280 qhov (SATA raws tu qauv), 1 * 2.5 "HDD, Txhawb RAID 0/1 |
ExpansionSlot | Kev them nyiaj yug 1 * Mini PCIE qhov (Txhawb WIFI / Bluetooth / 3G / 4G Yeem, embedded SIM qhov) |

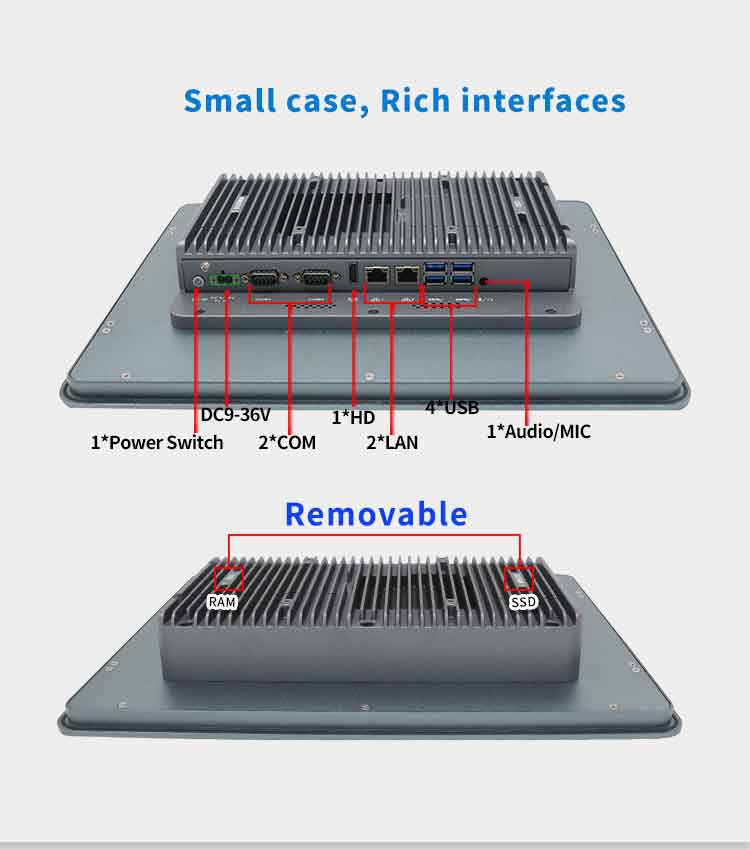

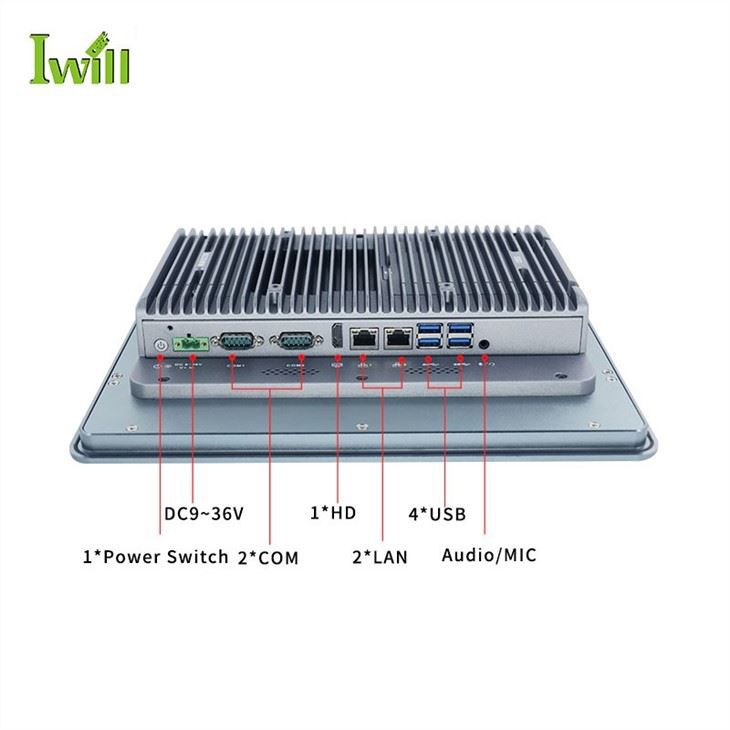

I/O | 1 * HDMI, 2 * COM (COM1& COM2 RS232 / RS422 / RS485 Yeem, 6 * COM Optional), 1 * Fais Fab Hloov |
1 * 2Pin fais fab mov phoenix connector, 1 * Suab (Kev them nyiaj yug Mic thiab hais lus tib lub sijhawm), 4 * USB 3.0, 2 * Intel 1000M LAN (4 * LAN Yeem) | |
Lwm Txoj Haujlwm | TPM2.0 kev ruaj ntseg encryption, Nws pib lub zog thaum muaj hluav taws xob, Timing khau raj, Wake ntawm LAN, PXE khau raj, Watchdog (0～255 qib) (Standard version tsis teeb tsa cov haujlwm no) |
ExpansionFunction | GPIO (8 Input 8 Output), 2 * LAN, 4 * COM, 2 * USB2.0 (Standard version tsis suav nrog cov chaw nres nkoj) |

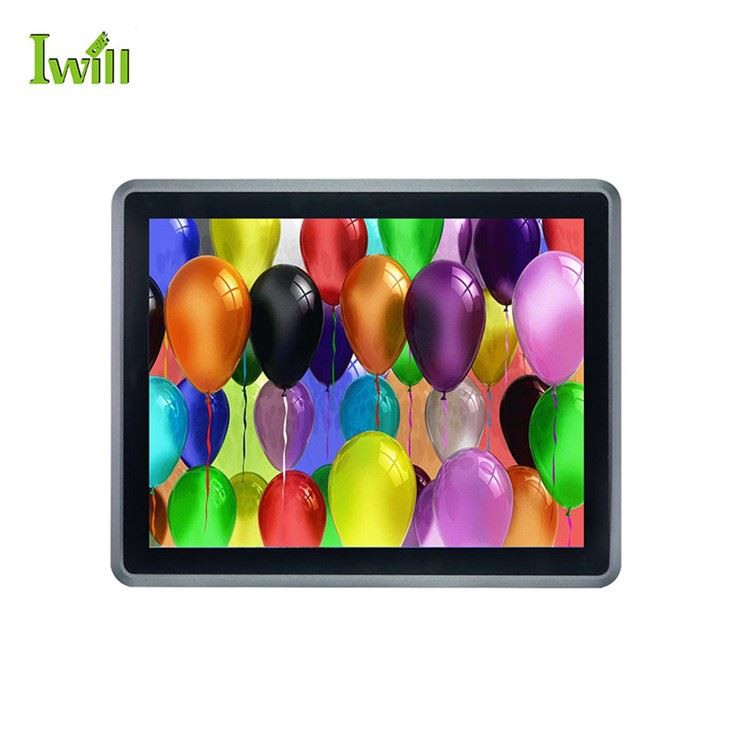

LCD | Loj: 12.1 nti TFT-LCD; Brightness: 350 cd / m2; Viewing Angle: Full Angle Piv txwv: 4: 3; Kev daws teeb meem: 1024 * 768; |
Kov npo | Muaj qib multi-touchresistancetouch npo, Lub Neej Lub Sijhawm: ntau tshaj 50000 Thousand Times; |
Hais lus | Ob lub 8-ohm2-watt hais lus |
Input voltage | DC9V ~ 36Vwide voltage Input, txhawb cov ncej zoo thiab tsis zoo electrode txuas rov qab tiv thaiv; |
Ua haujlwm Temp | 0 ℃ ~ +50 ℃ (Kev lag luam), -20 ℃ ~ + 60 ℃ (IndustrialSSD), Surfaceairflow |
Ua haujlwm av noo | 5% ~ 95% tsis-condensing |

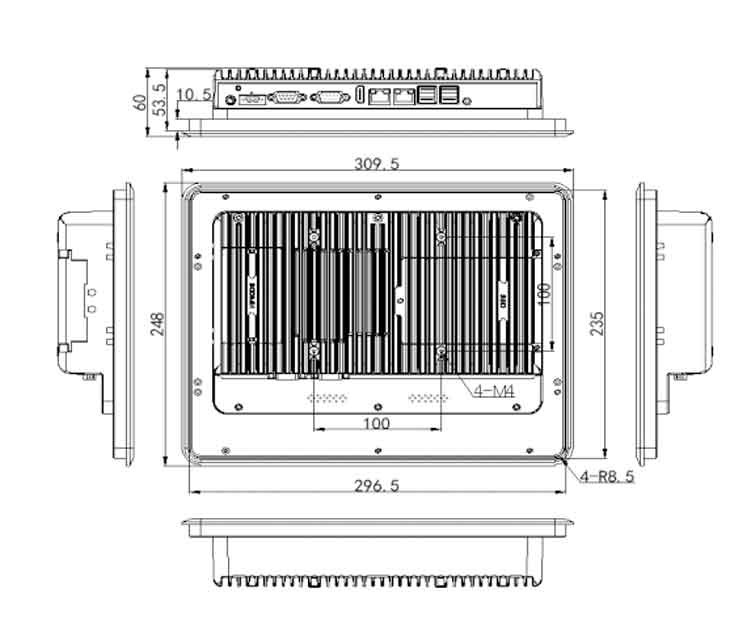

Dimension | 309.5 * 248 * 60 hli |
Embedded Installation | 298.5 * 237 hli |
Qhov hnyav | 2.9kg ib |
Kev thauj mus los
Lub pob 12.1 Vaj Huam Sib Luag PC txhawb nqa av, hiav txwv, thiab huab cua thauj mus rau txhua qhov chaw.
Kev ceeb toom sov: Nws yuav tsum tsis txhob muab tso rau hauv lub cabins qhib thiab cov tsheb thauj khoom thaum lub sij hawm thauj mus los ntev, thiab yuav tsum tsis txhob muab khaws cia rau hauv qhov chaw qhib cua thaum nruab nrab ntawm kev thauj mus los. , Thaum lub sij hawm kev thauj mus los, nws tsis raug tso cai rau nkoj nrog cov khoom tawg, tawg, lossis corrosive hauv tib lub tsheb (lossis lwm yam kev thauj mus los), thiab cov khoom tsis raug tso cai los ntawm cov nag, daus los yog kua dej thiab ntub dej los ntawm cov daus. los yog kua tshuaj Thiab mechanical puas.
Cia
Lub 12.1 nti Industrial pc yuav tsum tau muab cia rau hauv lub thawv ntim khoom thaum lub sijhawm cia. Lub ambient kub ntawm lub warehouse qhov twg cov khoom yog khaws cia yog 0 ℃ ~ 40 ℃, thiab cov txheeb ze humidity yog 20% ~ 85%. Txhua yam khoom siv phom sij, cov khoom siv hluav taws xob thiab cov khoom tawg thiab cov tshuaj corrosive tsis raug tso cai nyob rau hauv lub tsev rau khoom, thiab tsis muaj zog txhua yam kev co, poob siab thiab muaj zog magnetic teb. Lub thawv ntim khoom yuav tsum tau cushioned tsawg kawg 10cm deb ntawm av thiab tsawg kawg 50cm deb ntawm phab ntsa, qhov chaw tshav kub, qhov chaw txias, qhov rais lossis cua nkag.
Ceev faj txog kev pheej hmoo ntawm kev puas tsuaj rau cov khoom siv! Thaum thauj lub tshuab nyob rau hauv cov huab cua txias, yuav tsum paub txog qhov kub thiab txias hloov. Nyob rau hauv rooj plaub no, xyuas kom meej tias tsis muaj cov tee dej (condensation) raug tsim los ntawm lossis hauv lub cuab yeej. Yog tias cov ntaub ntawv condensation ntawm lub cuab yeej, tos tsawg kawg 12 teev ua ntej qhib lub cuab yeej.
FAQ
Lus Nug: Koj puas tuaj yeem muab kuv lub npe (logo) tso rau ntawm cov khoom no?
Teb: Yog, .Peb tuaj yeem txhawb OEM / ODM kev pabcuam, cov txheej txheem ntawm kev hloov kho raws li hauv qab no:
1: muab koj cov kev xav tau tshwj xeeb.
2: peb tus kws tsim qauv kos duab tsim qauv.
3: koj paub meej tias tus qauv tsim.
4. peb pib tsim nws.
Lus Nug: Kuv yuav tau them nyiaj npaum li cas rau koj qhov kev pabcuam OEM?
Teb: Koj yuav tsum them ntxiv 500 $, tab sis peb yuav xa rov qab 500 $ rau koj thaum koj xaj ntau dua 100 daim.
Nqe Lus Nug: Koj txais txoj kev them nyiaj dab tsi?
Teb: T / T, Western Union, PayPal.
Lus Nug: Yam tsawg kawg nkaus Order Quantity (MOQ) yog dab tsi?
Teb: Peb tuaj yeem muag ib daim qauv rau koj qhov kev kuaj.
Lus Nug: Lub sijhawm ua haujlwm ntawm koj cov khoom yog dab tsi?
Teb: 1-3 hnub rau ib qho qauv, 15 hnub ua haujlwm rau ntau qhov ntau.
Yog tias xav tau 12.1 inch Fanless Resistance Touch Panel PC, pls hu rau peb:jessie@iwilltech.cn
Cim npe nrov: 12.1 nti industrial vaj huam sib luag pc windows 11, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, lag luam wholesale, yuav, nqe, pheej yig, kev muag, ua nyob rau hauv Suav teb
