N15
Qauv | N15 |
Xim | Dub(Xim tuaj yeem kho tau) |
Khoom siv | High-zoo txhuas txhuas，ntooxidation ntawm anodic |
Processor | Onboard Intel Core i5 8250U（Quad core yimxov，1.6 GHz，Max turbo3.4GHz，Cache 6 MB）； |
Onboard Intel Core i7 8550U（Quad core yimxov，1.8GHz ceev，Max turbo4.0GHz，Cache 8 MB） | |
RAM | Txhawb 1 * DDR4 2133/2400 SODIMM RAM Slot，Max. Txhawb 16 GB |
BIOS | AMI EFI BIOS |
Zaub Chip | Kev koom ua keIntel HD Graphics 620 |
Display Port | 1* NP，1 * HDMI chaw nres nkoj |

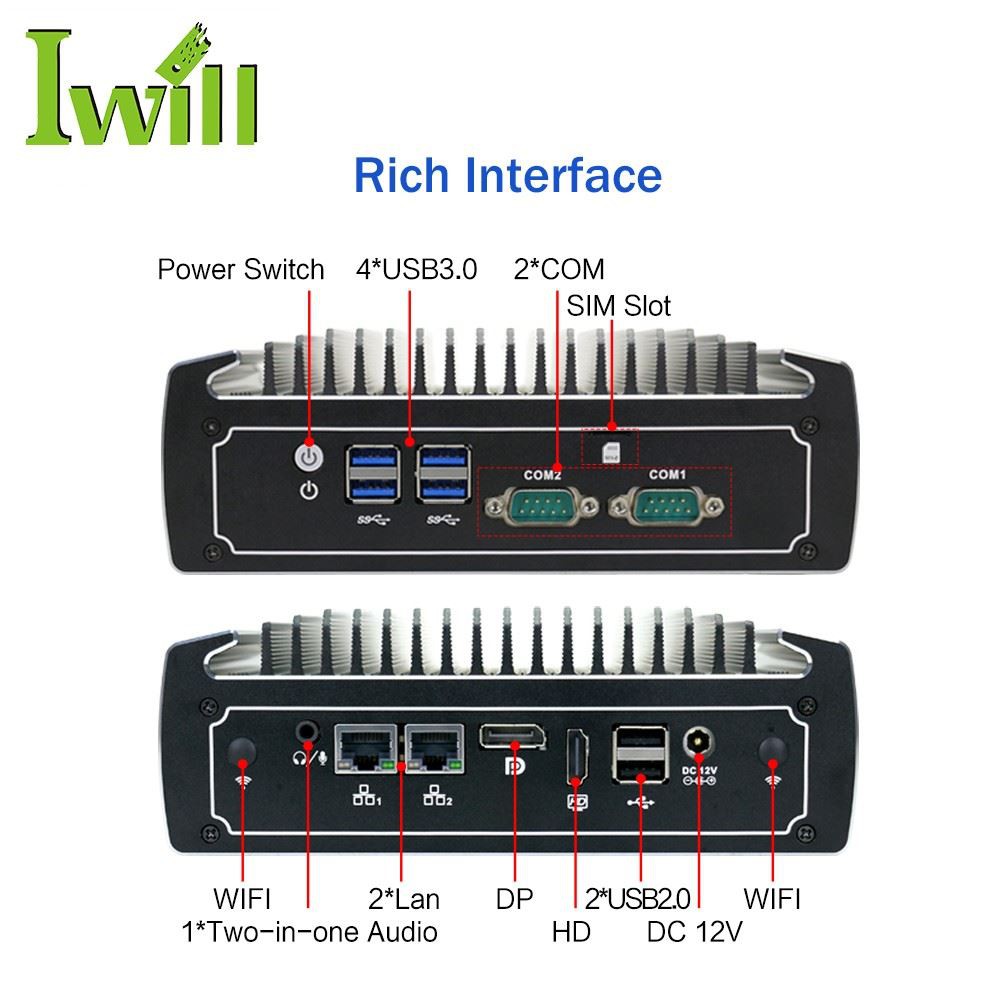

Pem hauv ntej I/O | 2 * COM（COM2 RS232/485 yeem），4 * USB 3.0，1*Hloov fais fab，1 * SIM slot |
Rov qab I/O | 1 * DC，2 * USB 2.0，1 * HDMI chaw nres nkoj，1* NP，2 * Intel 1000M LAN, |
1 * Suab (Txhawb Mic thiab hais lus tib lub sijhawm) | |
Expansion Qhov | Txhawb 1 * M.2 2280 Qhov（Tau tshaj PCIE X4 thiab SATA teeb liab） |
Txhawb 1 * MINI PCIE Slot（WIFI / 3G / 4G yeem），SIM Slot rau pem hauv ntej phaj | |
Network | 2 * Intel i211-AT 10/100/1000M LAN |
Cia | Txhawb 1 * M.2 2280 Qhov，1 * 2.5 "HDD |
Input voltage | Txhawb DC 12V Input |
Lwm Txoj Haujlwm | Nws pib fais fab thaum muaj hluav taws xob、Timing khau raj、Wake ntawm LAN、PXE khau raj、Saib xyuas（0～255 qib）(Standard version tsis teeb tsa cov haujlwm no) |
Ua haujlwm Temp | 0℃ ～+40℃（Kev lag luam HDD），-20℃ ～+50℃（Muaj SSD），Surfaceairflow |
Ua haujlwm av noo | 5% ～95% tsis-condensing |
Dimension | 186 * 126.5 * 66 hli |
Net nyhav | 1.3 kg ib |
N3022
Qauv | NanoN3022 |
Xim | Dub(xim tuaj yeem kho tau) |
Khoom siv | High-zoo txhuas txhuas |
Processor | IntelCore i3 10110U(Dual core 4 threads,2.1g, max. Turbo 4.1G, 4MB Cache) |
IntelCore i5 10210U(Quad core 8 threads,1.6g, max. Turbo 4.2G, 6MB Cache) | |
CPUKev tsim vaj tsev | Lub pas dej Comet |
RAM | Txhawb 1 * DDR42666/2933SODIMM nco qhov, Max. Txhawb 32GB |
BIOS | AMI EFI BIOS |
Zaub Chip | Intel UHD Graphics rau 10th Gen Intel processors |
Display Port | 1*DP,1 * HDMI chaw nres nkoj |
Pem hauv ntej I/O | 2 * COM (2 * COM RS232 / 485 yog xaiv tau), 4 *USB3.0, 1*Hloov fais fab, 1 * SIM slot |
Rov qab I/O | 1 * DC-hauv 12V, 2*USB2.0, 1 * HDMI, 1 * DP, 2 * Intel 1000M LAN, |
1* Audio(Txhawb Mic thiabHais lus tib lub sijhawm) | |
Expansion Qhov | Txhawb 1 * M.2 2280 qhov (Support M.2 PCIE X4 thiab M.2 SATA SSD); |
Txhawb 1 * MINI PCIE qhov (WIFI / 3G / 4G xaiv ib qho los ntawm peb), embedded SIM socket; | |
Network | 2*Inteli211-TSI10/100/1000MLAN |
Cia | Txhawb nqa1* M.2 2280 qhov,1*2.5"HDD, txhawb RAID 0/1 |
Fais fab mov | DC12V |
Dimension | 186 *126.5 *66 mm |
Net nyhav | Net nyhav |
