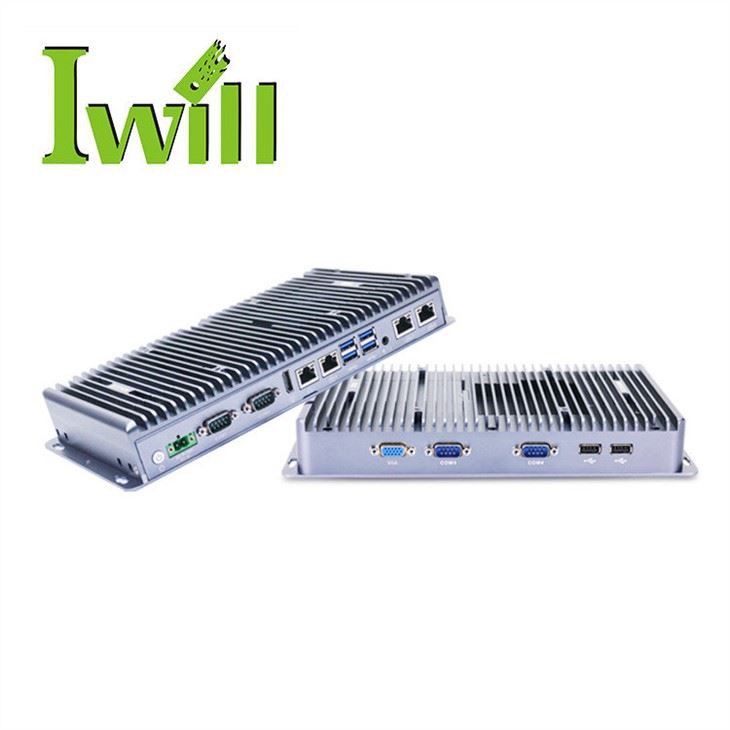

I5 I7 Fanless Industrial PC

Qauv

IB-3046

Xim

Titanium grey (Xim tuaj yeem kho tau)

Khoom siv

Aluminium alloy chassis

Txheej txheem

Onboard Intel Celeron 4205U (Dual core dual threads, 1.8Ghz, 2MB Cache)

Onboard Intel Core i5-8265U (Quad core yim threads, 1.6Ghz, Max turbo 3.9Ghz, 6MB Cache)

Onboard Intel Core i7-8565U (Quad core yim threads, 1.8Ghz, Max turbo 4.6Ghz, 8MB Cache)

RAM

Txhawb 1*DDR4 2133/2400 SODIMM Nco qhov, Max. Txhawb 32GB

BIOS

AMI EFI BIOS

Zaub Chip

Kev koom ua ke Intel UHD Graphics

Zaub Chaw nres nkoj

1*VGA, 1*HDMI (Txhawb synchronous thiab asynchronous dual zaub)

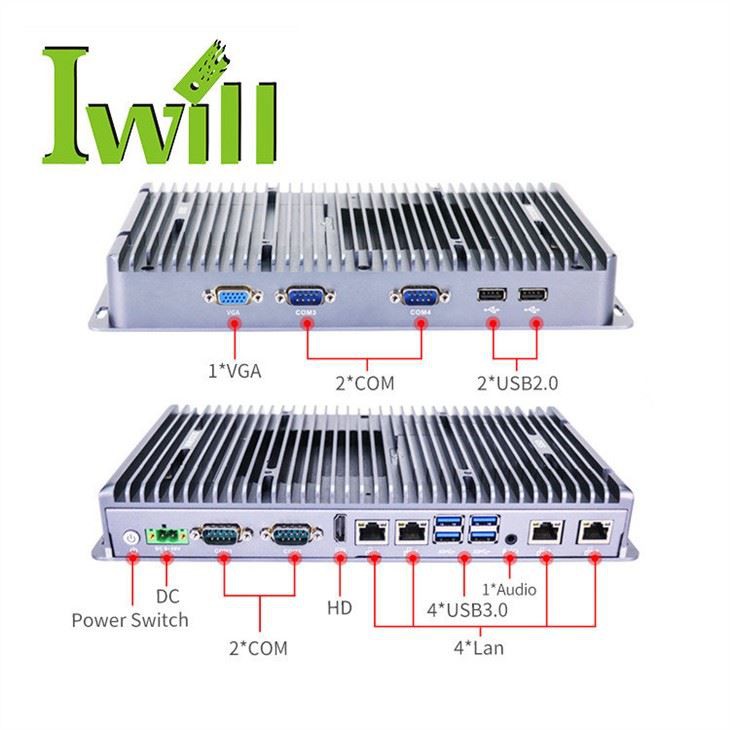

Pem hauv ntej I/O

2*USB2.0, 2*COM, 1*VGA

Tsheb I/O

4*Intel 1000M LAN, 4*USB3.0, 1*HDMI, 1*Suab (Txhawb Mic thiab Hais Lus tib lub sijhawm)

2*COM (COM1, COM2 RS232/RS422/RS485 Yeem), 1*2Pin fais fab mov phoenix txuas, 1*Lub Hwj Huam Hloov

Nthuav dav

Txhawb 1*M.2 M-Key 2280 qhov (Txhawb SATA raws tu qauv)

Txhawb 1*MINI PCIE Qhov (WIFI/3G/4G Yeem; xaiv ib los ntawm peb), kos SIM Qhov

Nthuav Tawm Chaw Nres Nkoj: GPIO (8 Kev Tawm Tswv Yim 8 Tawm), 2*COM, 1*USB2.0 (Tus qauv tsis yog' tsis suav nrog cov chaw nres nkoj no)

Network

4*Intel i211-AT 10/100/1000M LAN

Cia

1*M.2 2280 qhov, 1*2.5" HDD, Txhawb RAID 0/1

Cov tswv yim Voltage

DC 9V ～ 36V dav qhov hluav taws xob tawm tswv yim, txhawb tus ncej zoo thiab tsis zoo electrode txuas kev tiv thaiv thim rov qab

Lwm Txoj Haujlwm

TPM2.0 kev ruaj ntseg encryption, Pib lub zog thaum muaj hluav taws xob, Timing boot, Wake ntawm LAN, PXE khau raj, Watchdog (0 ～ 255 qib) (Tus qauv tsis ua' t teeb tsa cov haujlwm no)

Ua hauj lwm Temp

0 ℃ ～ +50 ℃ (Commercial HDD), -20 ℃ ～ + ℃ 60 ℃ (Muaj SSD), Huab cua saum npoo av

Ua Haujlwm Vaum

5% ～ 95% tsis-condensing

Daim ntawv pov thawj

CE, CCC, FCC Class A, ROHS

Loj

280*143*40 hli

Qhov hnyav

1.45kg

Daim ntawv thov

Muaj Automation, Kho Mob, Tau Txais Cov Ntaub Ntawv, Motion Control, Kev Siv Tsheb thiab lwm yam.
