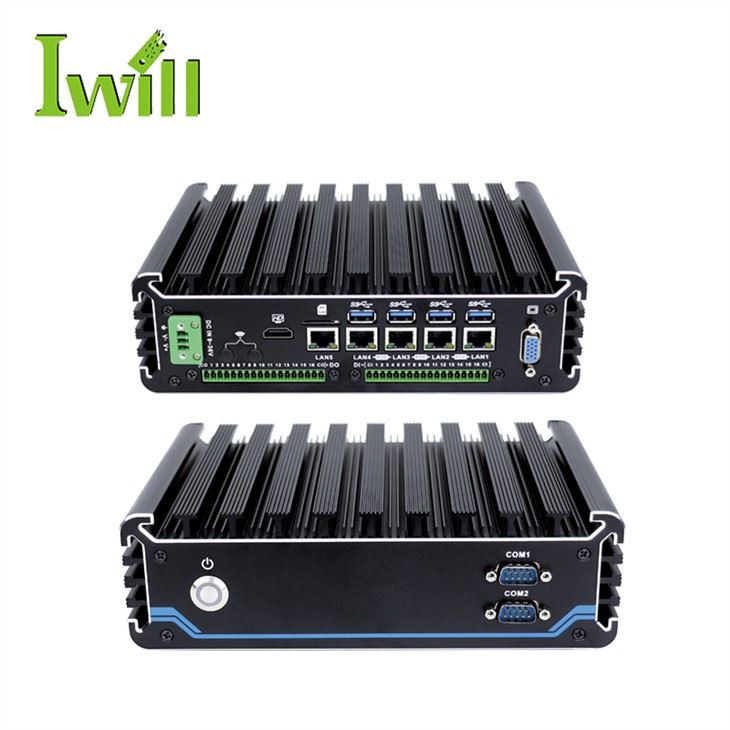

I3 I5 I7 Muaj PC nrog POE

Qauv

IB-603

Xim

Dub (Xim tuaj yeem kho tau)

Khoom siv

Zoo siab txhua yam txhuas, nto anodic oxidation

Txheej txheem

Onboard Intel Celeron 3855U (Dual core dual threading, 1.6 GHz)

Onboard Intel Core i3 6100U (Dual core quad threading, 2.3 GHz)

Onboard Intel Core i5 6200U (Dual core quad threading, 2.3GHz, Max turbo 2.8GHz)

Onboard Intel Core i7 6500U (Dual core quad threading, 2.5GHz, Max turbo 3.1GHz)

CPU Architecture

Skylake-UA

RAM

Txhawb 1*DDR4 1866/2133 SODIMM RAM Qhov, Max. Txhawb 16GB

BIOS

AMI EFI BIOS

Zaub Chip

Kev koom ua ke Intel HD Graphics 510 /520

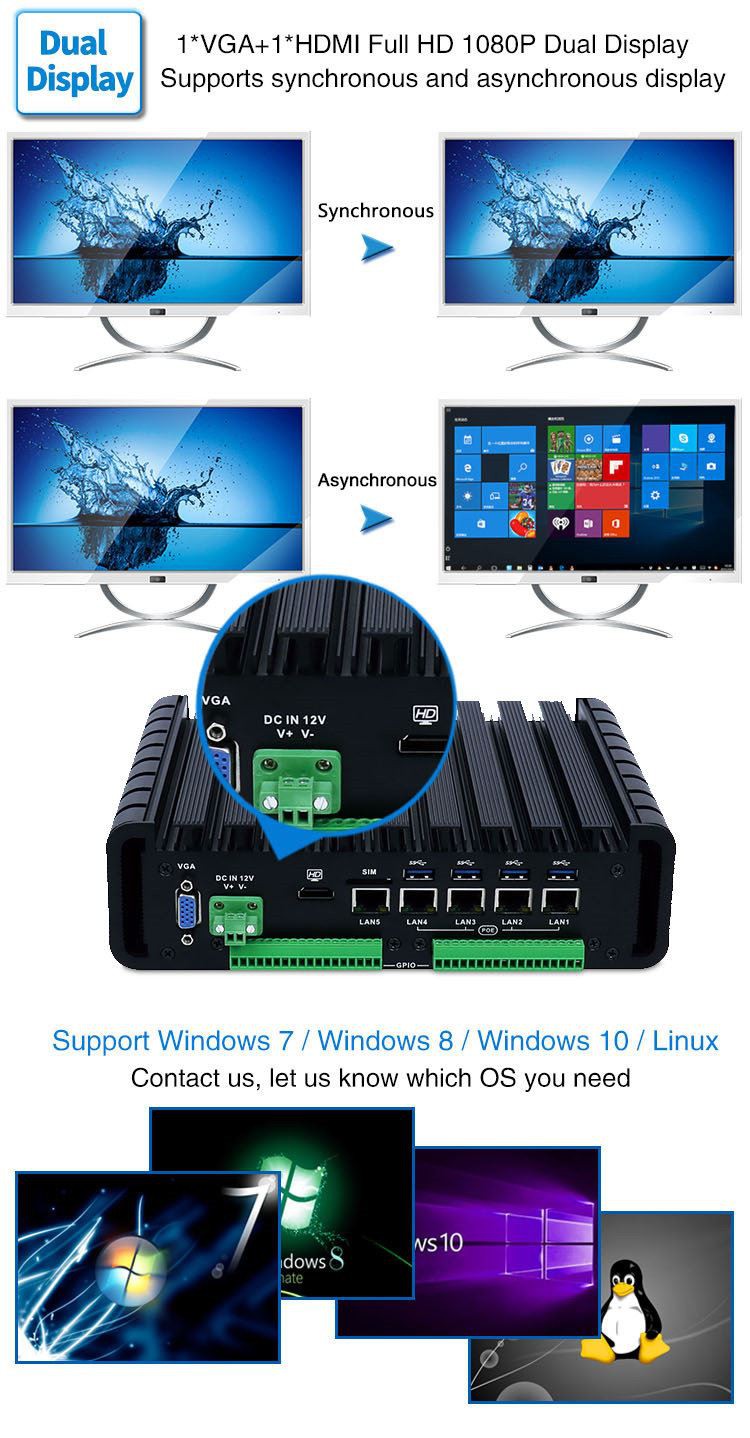

Zaub Chaw nres nkoj

1*VGA, 1*HDMI

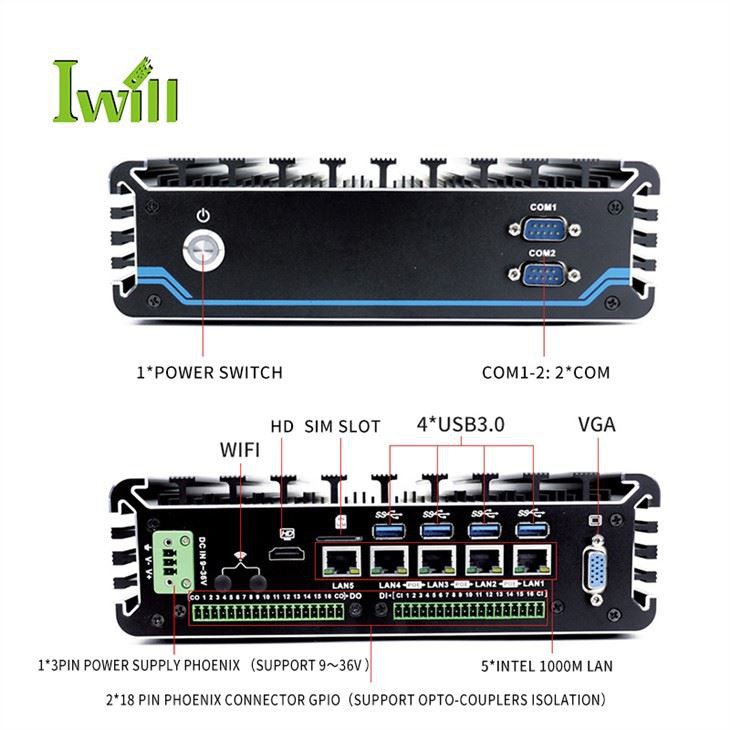

Pem hauv ntej I/O

2*COM, 1*Hwj chim Hloov

Tsheb I/O

4*USB3.0, 1*VGA, 1*HDMI, 1*3 PIN Power Supply Phoenix Connector (Txhawb 9 ～ 36V dav qhov hluav taws xob nkag)

5*Intel 1000M LAN, 2*18 PIN Phoenix Connector GPIO (Txhawb Kev Sib Txuas Opto-couplers)

Kev nthuav dav qhov

Kev them nyiaj yug 1*MINI PCIE Qhov (WIFI/3G/4G Yeem Xaiv), Tso SIM SIM

Txhawb 1*MINI PCIE Qhov (Txhawb MSATA)

Network

5*Intel i211-AT 1000M LAN (Txhawb 4*802.3af tus qauv POE LAN)

Cia

1*MSATA Qhov, 1*2.5" HDD

Hwj chim Mov

Txhawb DC 9 ～ 36V dav qhov hluav taws xob nkag

Lwm Txoj Haujlwm

Pib lub zog thaum muaj hluav taws xob, Sijhawm khau raj, Tsim ntawm LAN, PXE khau raj, Watchdog (0 ～ 255 qib) (Cov qauv txheej txheem tsis' t teeb tsa cov haujlwm no)

Ua hauj lwm Temp

0 ℃ ～ +50 ℃ (Commercial HDD), -20 ℃ ～ + ℃ 60 ℃ (Muaj SSD), Huab cua saum npoo av

Ua Haujlwm Vaum

5% ～ 95% tsis-condensing

Daim ntawv pov thawj

CE, CCC, FCC Class A, ROHS

Qhov ntev

230*166*68mm (Tsis suav nrog bracket)

Net Nyhav

2.3 kg (Tsis suav nrog bracket)

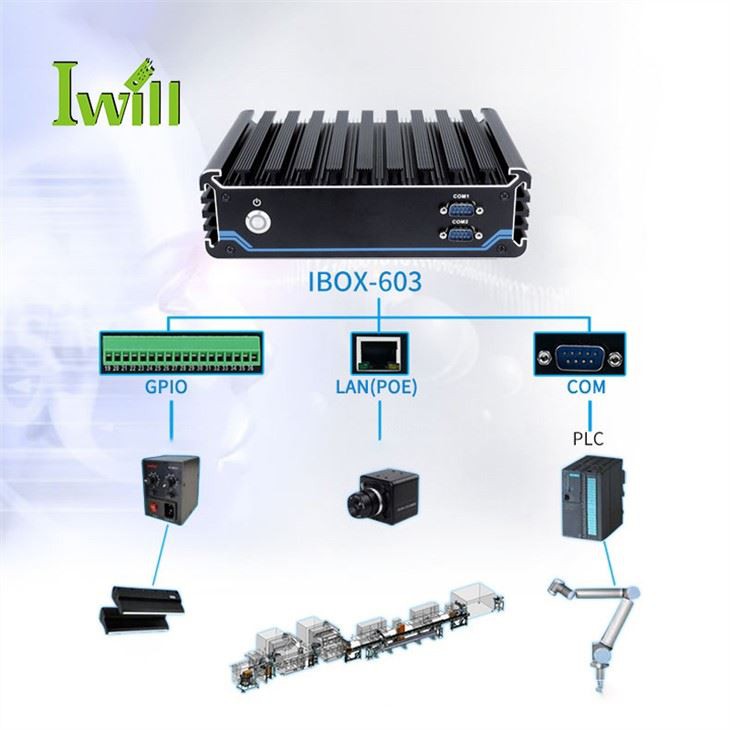

Daim ntawv thov

Kev lag luam automation, Tshuab pom kev, Kev lag luam thauj mus los, Kev saib xyuas lub zog, thiab lwm yam.
