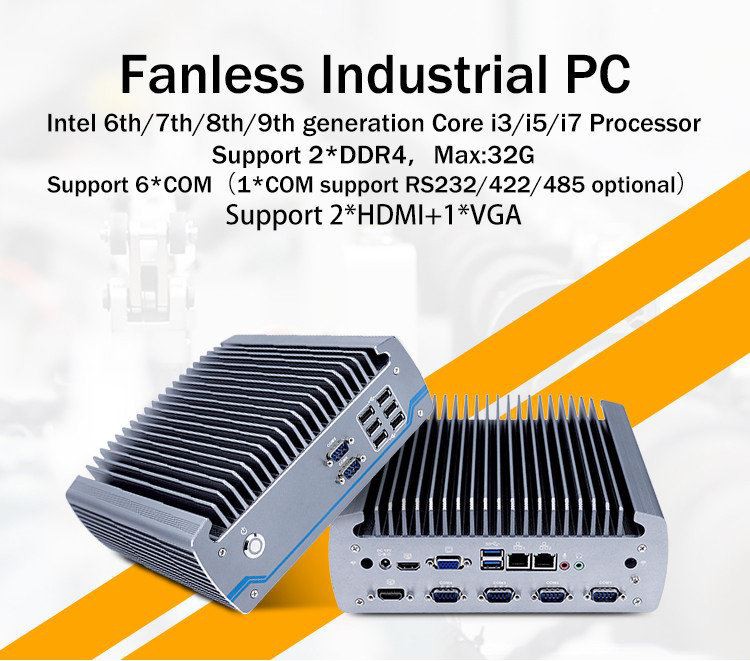

I3 I5 I7 Muaj PC nrog 2 HDMI

Qauv

IB-605

Xim

Titanium grey (lwm yam xim tuaj yeem kho tau)

Khoom siv

Zoo tshaj txhua yam txhuas, Nto anodic oxidation

Txheej txheem

Intel Core i3 8100T (plaub tus tub ntxhais, 4 xov, 3.1 GHz)

Intel Core i5 8500T (6 core, 6 threads, 2.1 GHz, Maximum Turbo 3.5 GHz)

Intel Core i7 8700T (6 core, 12 threads, 2.4 GHz, Maximum Turbo 4.0 GHz)

Chip

Intel H310 Cov

Nco

Txhawb 2*DDR4 2133/2400 SODIMM qhov, Max: 32GB

BIOS

AMI EFI BIOS

Zaub Chip

Kev koom ua ke Intel HD Graphics 630

Zaub Chaw nres nkoj

1*VGA, 2*HDMI (Txhawb synchronous thiab asynchronous dual zaub)

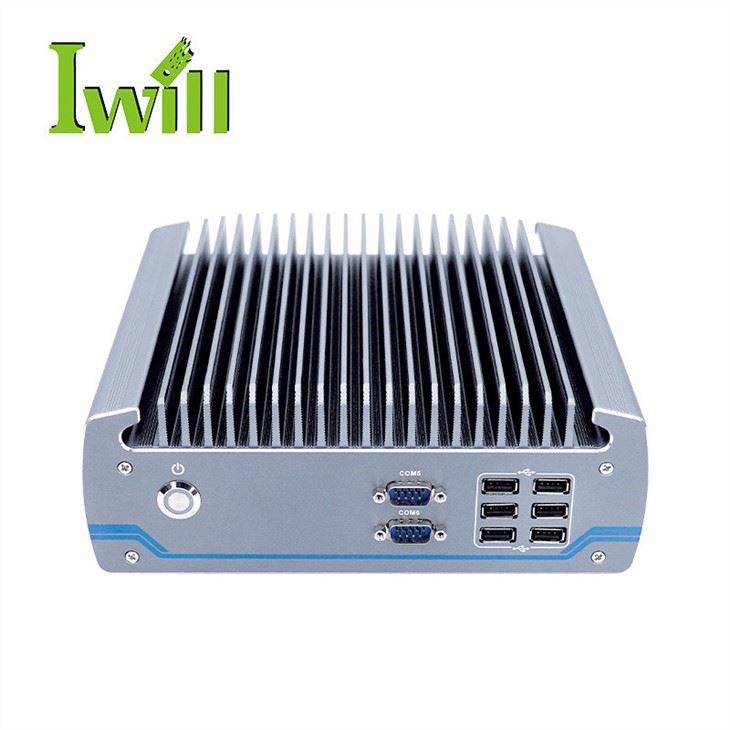

Pem hauv ntej I/O

6*USB2.0, 2*COM, 1*Hwj chim Hloov

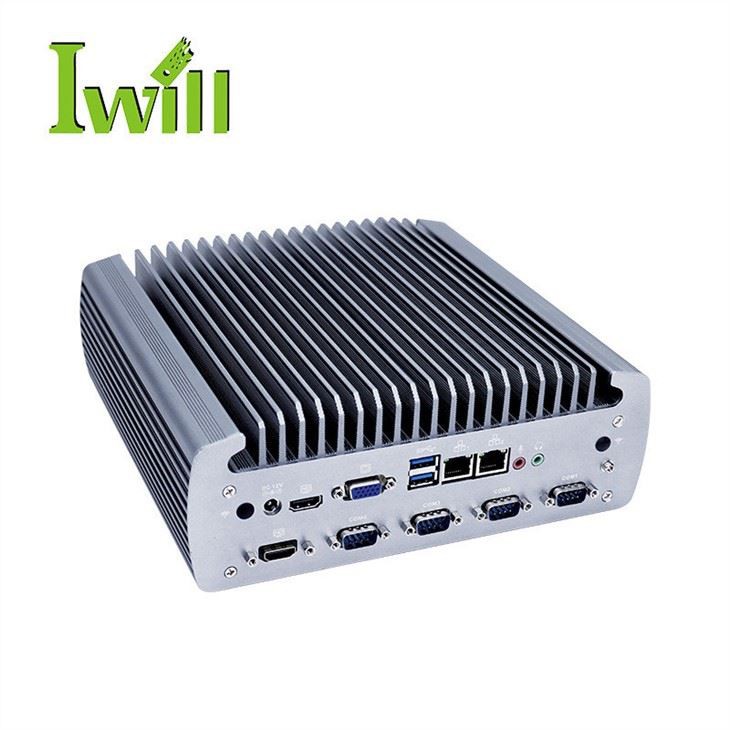

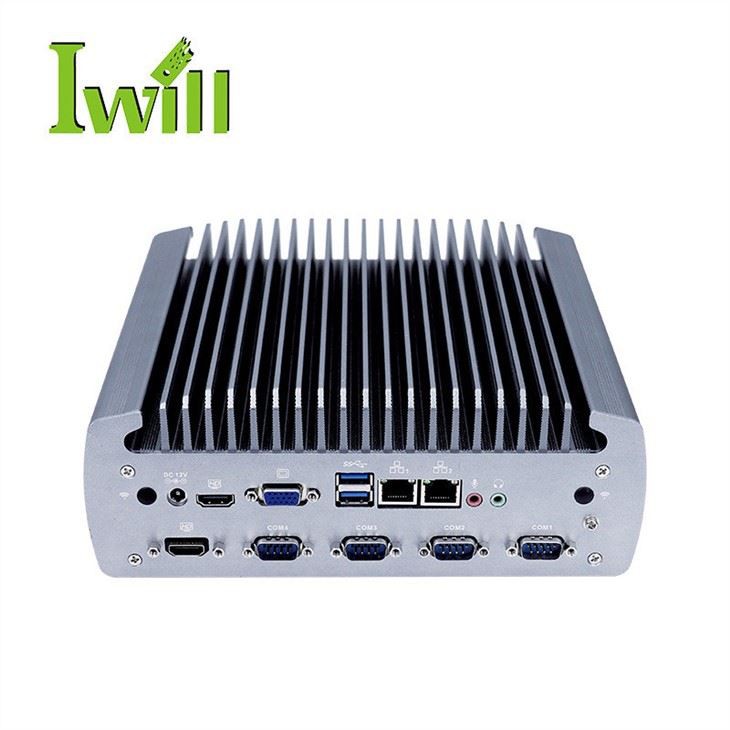

Tsheb I/O

2* USB3.0, 2* 1000M LAN, 1* VGA, 2* HDMI, 1* Mic, 1* Kab Tawm

4*COM (COM2*RS232/RS422/485 Yeem), 1*DC

Kev nthuav dav qhov

Txhawb 1*M.2 2280 qhov (Tau tshaj: PCIE thiab SATA teeb liab)

Txhawb 1*MINI PCIE qhov (Txhawb WIFI/Bluetooth)

Nthuav Tawm Chaw Nres Nkoj: GPIO (4 Lub Tswv Yim*4 Cov Zis)

Network

2*RTL8111H 1000M LAN

Cia

Txhawb 1*M.2 2280 qhov, 1*2.5" HDD (2*2.5" HDD Xaiv tau)

Hwj chim Mov

Kev them nyiaj yug DC 12 ～ 19V (DC 9 ～ 36V dav voltage yeem)

Lwm Txoj Haujlwm

Pib lub zog thaum muaj hluav taws xob, Sijhawm khau raj, Tsim ntawm LAN, PXE khau raj, Saib Xyuas (0 ～ 255 qib)

Ua hauj lwm Temp

0 ℃ ～ +50 ℃ (Commercial HDD), -20 ℃ ～ + ℃ 60 ℃ (Muaj SSD), Huab cua saum npoo av

Ua Haujlwm Vaum

5% ～ 95% Tsis-condensing

Daim ntawv pov thawj

CE, CCC, FCC Class A, ROHS

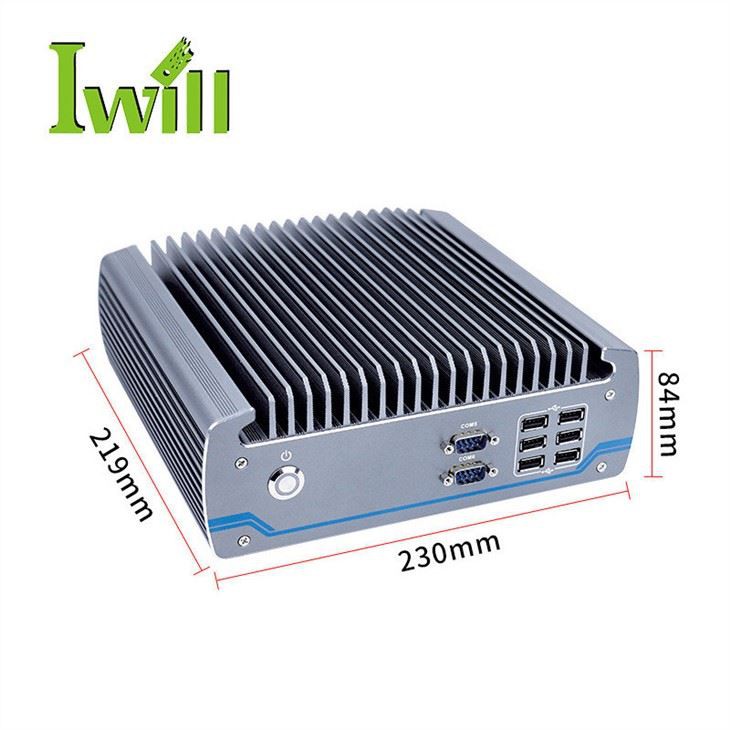

Qhov ntev

230 * 219 * 84 mm (tsis suav nrog phab ntsa bracket)

Qhov hnyav

4.0 kg (tsis suav nrog phab ntsa bracket)

Daim ntawv thov

Kev Lag Luam Kev Lag Luam, Kev Kho Mob, Kev Tshawb Fawb Cov Ntaub Ntawv, Kev Tswj Tsab Ntawv, Kev Siv Tsheb thiab lwm yam.
