I5 Muaj PC nrog GPIO

Qauv

IBOX-706 Ntxiv

Xim

Titanium grey (Xim tuaj yeem kho tau)

Khoom siv

Zoo siab txhua yam txhuas, nto anodic oxidation

Txheej txheem

Intel Celeron 3865U (Dual core dual threads, 1.8 GHz)

Intel Core i5 7200U (Dual core quad threads, 2.5GHz, Max turbo 3.1GHz), i5-6200U Xaiv tau

CPU Architecture

Skylake-U / KabyLake-U

RAM

Txhawb 1*DDR4 1866/2133 SODIMM RAM Qhov, Max. Txhawb 16GB

BIOS

AMI EFI BIOS

Zaub Chip

Kev koom ua ke Intel HD Graphics 510/520

Zaub Chaw nres nkoj

1*VGA, 1*HDMI

Pem hauv ntej I/O

2*USB3.0, 2*USB2.0, 1*10PIN GPIO Phoenix Connector (3.3V lossis 5V yeem)

1*RST Khawm, 1*Built-in SIM Slot, 1*Power Switch, 1*4PIN hloov teeb liab Phoenix Connector

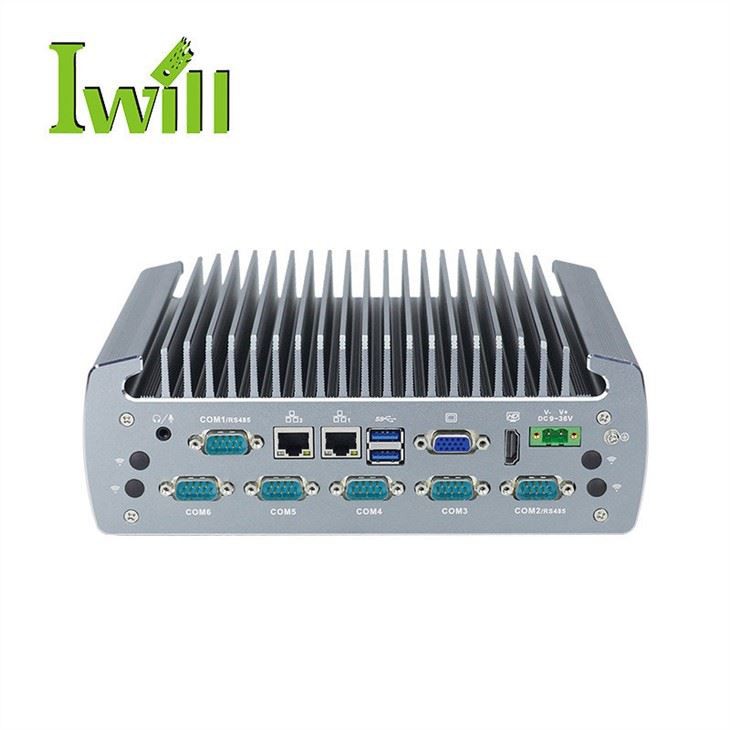

Tsheb I/O

2*USB3.0, 2*Intel 1000M LAN, 1*VGA, 1*HDMI

1*Suab (Txhawb Mic thiab Hais Lus tib lub sijhawm), 6*COM (COM1, COM2 RS232/RS422/485 Yeem tau), 1*2PIN Lub Hwj Huam Txuas Txuas Phoenix

Kev nthuav dav qhov

Txhawb 1*M.2 2280 Qhov (Txhawb NVME raws tu qauv thiab SATA npav)

Txhawb 1*M.2 Qhov (Txhawb 3G/4G, Sab Nraud SIM Qhov)

Kev them nyiaj yug 1*MINI PCIE Qhov (WIFI/Bluetooth/3G/4G, Embedded SIM Qhov)

Yeem Ports: 10*COM, LPT, 2*USB2.0 (Cov qauv txheem tsis' tsis suav nrog cov chaw nres nkoj no)

Network

2*Intel i211-AT 1000M LAN

Cia

1*M.2 2280 Qhov, Onboard 1*2.5" HDD (2*2.5" HDD Yeem, Txhawb RAID0/1)

Cov tswv yim Voltage

Txhawb DC 9 ～ 36V dav qhov hluav taws xob nkag, Txhawb tus ncej zoo thiab tsis zoo electrode txuas kev tiv thaiv thim rov qab

Lwm Txoj Haujlwm

Pib lub zog thaum muaj hluav taws xob, Sijhawm khau raj, Tsim ntawm LAN, PXE khau raj, Watchdog (0 ～ 255 qib) (Cov qauv txheej txheem tsis' t teeb tsa cov haujlwm no)

Ua hauj lwm Temp

0 ℃ ～ +50 ℃ (Commercial HDD), -20 ℃ ～ + ℃ 60 ℃ (Muaj SSD), Huab cua saum npoo av

Ua Haujlwm Vaum

5% ～ 95% tsis-condensing

Daim ntawv pov thawj

CE, CCC, FCC Class A, ROHS

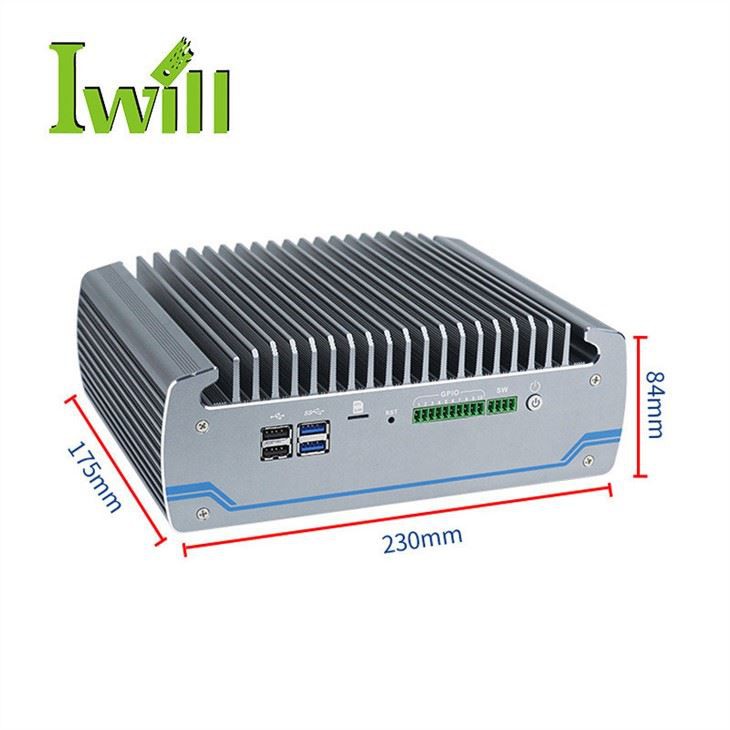

Qhov ntev

230 * 175 * 84mm (Tsis suav nrog cov kab zauv)

Net Nyhav

2.8 kg (Tsis suav nrog cov zauv)

Daim ntawv thov

Muaj Automation, Kho Mob, Tsheb thauj mus los Logistics, Warehouse, Kev Kawm Hauv Hluav Taws Xob thiab lwm yam.
