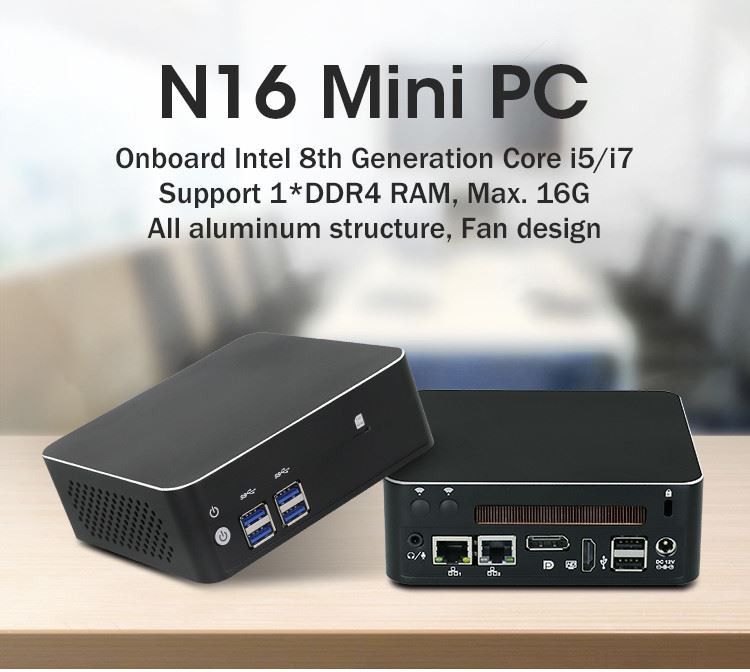

I5 I7 Mini PC nrog Ntxuam

Qauv

N16

Xim

Dub (Xim tuaj yeem kho tau)

Khoom siv

Zoo tshaj txhua yam txhuas, Nto anodic oxidation

Txheej txheem

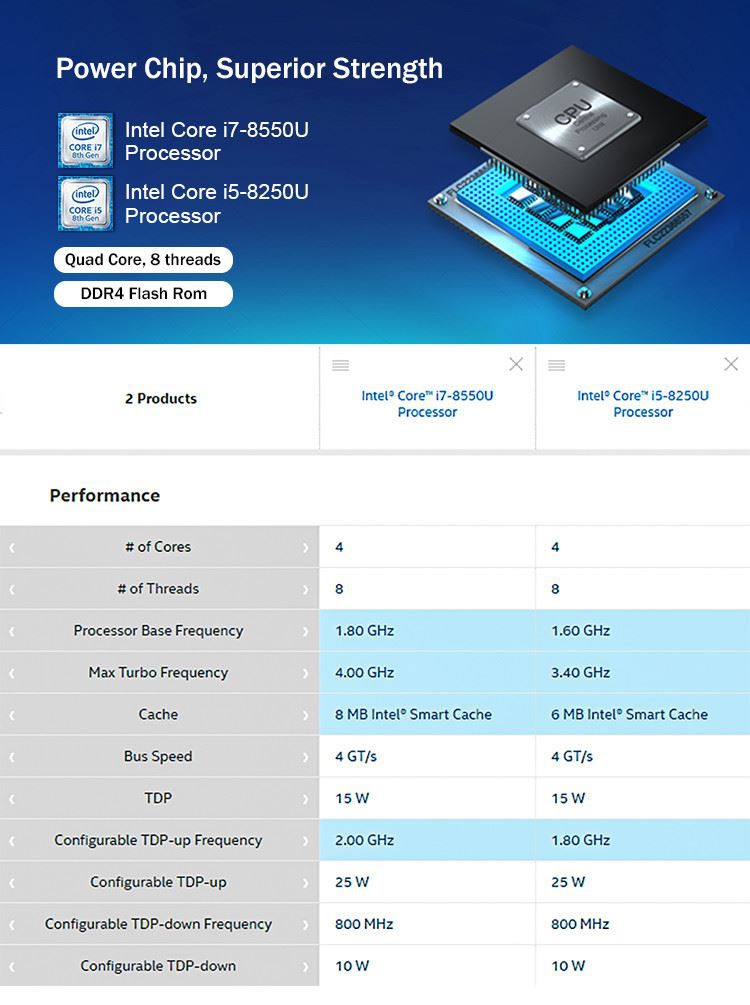

Onboard Intel Core i5 8250U (plaub core, 8 threads, 1.6GHz, Max. Turbo 3.4G, 6MB Cache)

Onboard Intel Core i7 8550U (plaub core, 8 threads, 1.8GHz, Max. Turbo 4.0G, 8MB Cache)

RAM

Txhawb 1*DDR4 2133/2400 SODIMM RAM qhov, Max. 16GB ib

BIOS

AMI EFI BIOS

Zaub Chip

Kev koom ua ke Intel HD Graphics 620

Zaub Chaw nres nkoj

1*DP, 1*HDMI

Pem hauv ntej I/O

4*USB3.0, 1*Hloov Hloov Hluav Taws Xob, 1*SIM Qhov

Tsheb I/O

1*DC, 1*HDMI (Txhawb 4096x2304@24Hz), 1*DP (Txhawb 4096x2304@60Hz)

2*USB2.0, 1*Suab (Txhawb Mic thiab Hais Lus tib lub sijhawm), 2*Intel 1000M LAN

Kev nthuav dav qhov

Txhawb 1*M.2 2280 Qhov (Tau tshaj PCIE X4 thiab SATA teeb liab)

Txhawb 1*MINI PCIE Qhov (WIFI/3G/4G Yeem), SIM Qhov rau ntawm phaj pem hauv ntej

Network

2*Intel i211-AT 10/100/1000M LAN

Cia

Txhawb 1*M.2 2280 Qhov, 1*2.5" HDD

Cov tswv yim Voltage

Txhawb DC 12V Tswv Yim

Lwm Txoj Haujlwm

Pib lub zog thaum muaj hluav taws xob, Sijhawm khau raj, Tsim ntawm LAN, PXE khau raj, Saib Xyuas (0 ～ 255 qib)

Ua hauj lwm Temp

0 ℃ ～ +40 ℃ (Commercial HDD), -10 ℃ ～ +50 ℃ (Muaj SSD), Cov huab cua ntws ntws

Ua Haujlwm Vaum

5% ～ 95% tsis-condensing

Daim ntawv pov thawj

CE, CCC, FCC Class A, ROHS

Qhov ntev

133 * 128 * 46 hli

Net Nyhav

0.65kg ib

Daim ntawv thov

Chaw Ua Haujlwm, HD Media, Kev Kawm Hauv Hluav Taws Xob thiab lwm yam.
