I5 I7 Muaj PC nrog 2 PCI

Qauv

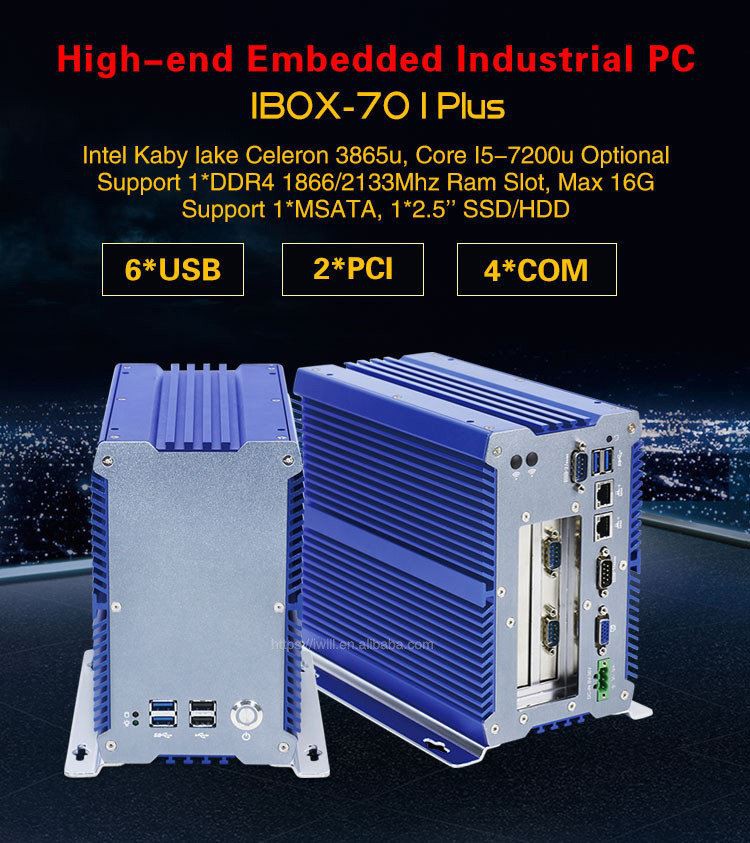

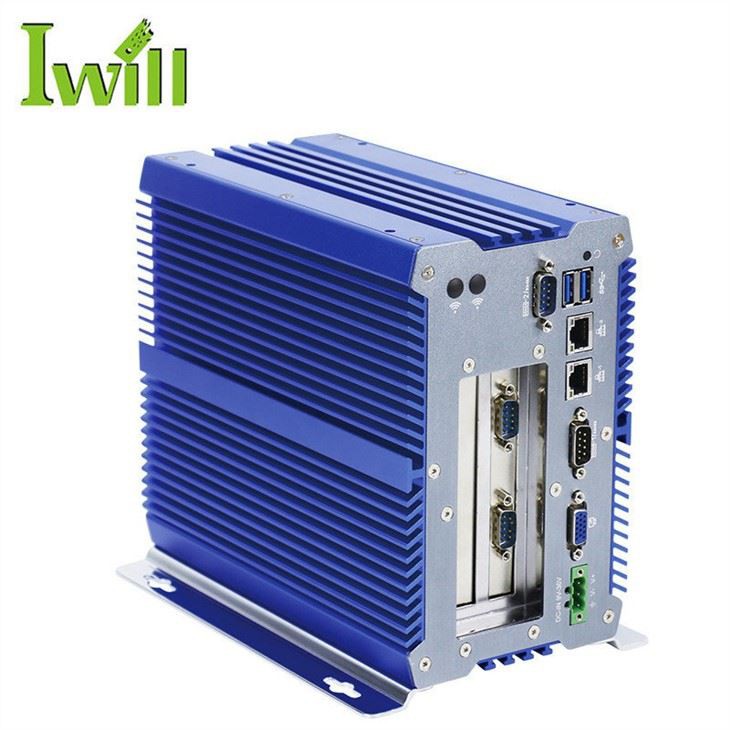

IBOX-701 Ntxiv

Xim

Xiav (xim tuaj yeem kho tau)

Khoom siv

Zoo siab txhua yam txhuas

Txheej txheem

Intel Celeron 3865U dual core 1.8GHz, 2MB thib peb cache

Intel Core i5 7200U dual core 2.5G, max turbo boost 3.1G, lub zog 15W)

CPU Architecture

KabyLake-UA

Ram

Txhawb 1*DDR4 1866/2133MHz, max 16GB

BIOS

SPI AMI EFI BIOS

Zaub Chip

Integrated Intel HD Graphics Card 620

Zaub Chaw nres nkoj

1*VGA, (tuaj yeem ua rau HDMI chaw nres nkoj)

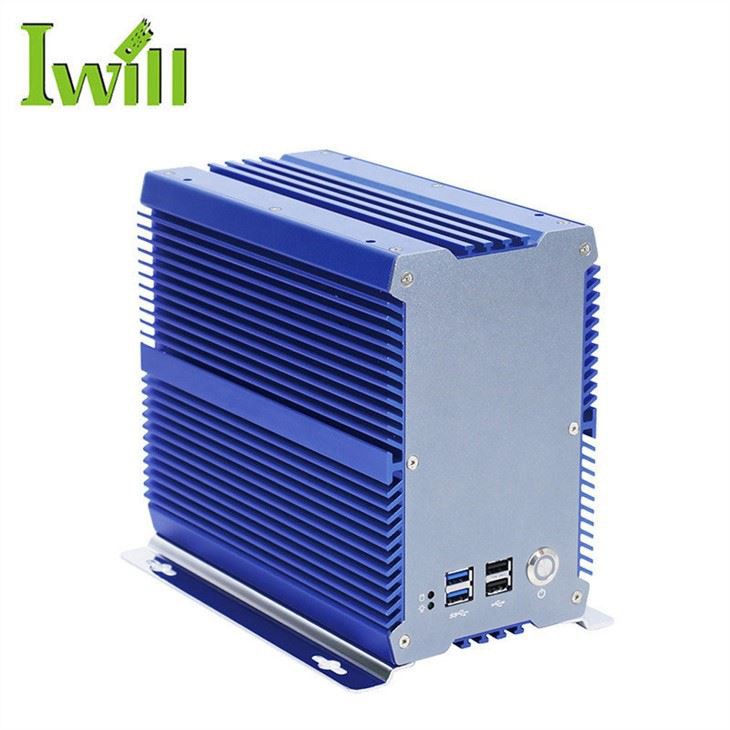

Pem hauv ntej I/O

2*USB3.0, 2*USB2.0, 2*LED teeb, 1*Hwj chim Hloov

Tsheb I/O

2*USB3.0, 2*COM (2*COM txhawb RS422/RS485 xaiv tau), 2*Intel Lan, 1*VGA, 1*Phoenix Terminal, 1*RST, 1*PCIE 4X + 1*PCI (2*PCI /2*PCIE xaiv tau)

Kev nthuav dav qhov

Kev them nyiaj yug 1*MINI PCIE channel (WIFI/3G/4G yeem), kos SIM qhov

Txhawb 1*MINI PCIE (txhawb MSATA)

GPIO yog nyob ntawm yeem (Default without GPIO)

Network

2*Intel i211-AT 10/100/1000M Lan

Cia

1*2.5&"; HDD, 1*MSATA

Hwj chim Mov

DC 9 ～ 36V

Ua hauj lwm Temp

-10℃ ～ +50℃

Ua Haujlwm Vaum

0% ～ 95% tsis-hws

Qhov ntev

215 * 185 * 115 hli

Net Nyhav

3.6kg ib

Daim ntawv pov thawj

CE, CCC, FCC Class A, ROHS

Daim ntawv thov

Automation, Kho mob, Tsheb thauj mus los, Warehouse, Kev kawm thiab lwm yam
