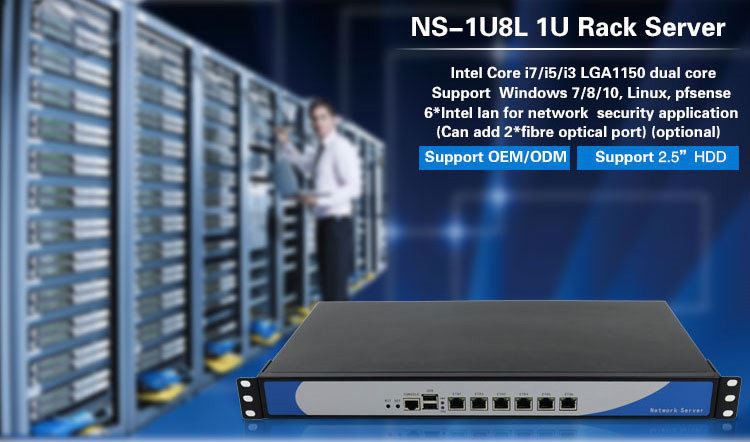

I3 I5 I7 1U Server 6 LAN

Qauv

NS-1U8L (B85) Cov.

Xim

Dub

Plhaub Khoom

Zoo zoo ntawm cov ntawv txias-kuav los tiag

Txheej txheem

Intel Core i3 4160 (dual core, 4 threads, 3.6 GHz)

Intel Core i5 4460 (quad core, 4 threads, 3.2 GHz, turbo boost 3.4 GHz)

Intel Core i7 4770 (quad core, 8 threads, 3.4 GHz, turbo boost 3.9 GHz)

Chipset

Intel B85 Cov

Nco

Txhawb 2*DDR3 1333/1600 MHz, SODIMM, Max: 16 GB

Zaub Chaw nres nkoj

1*VGA

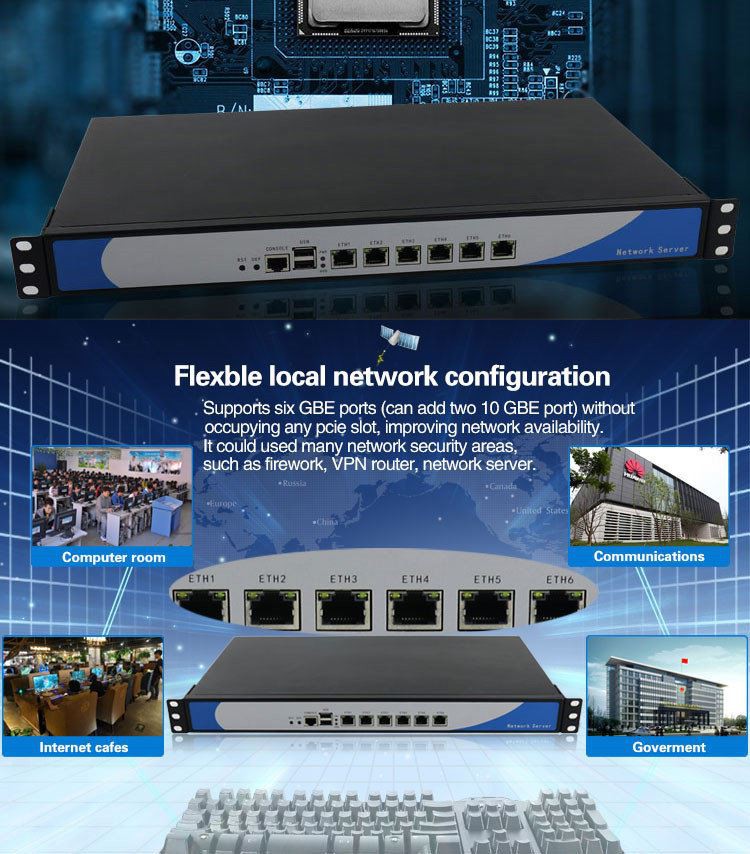

Pem hauv ntej I/O Port

1*RJ45 COM (txhawb nqa Console), 2*USB2.0, 6*Intel 1000M LAN, 2*Intel X520 Gbe fiber chaw nres nkoj Yeem

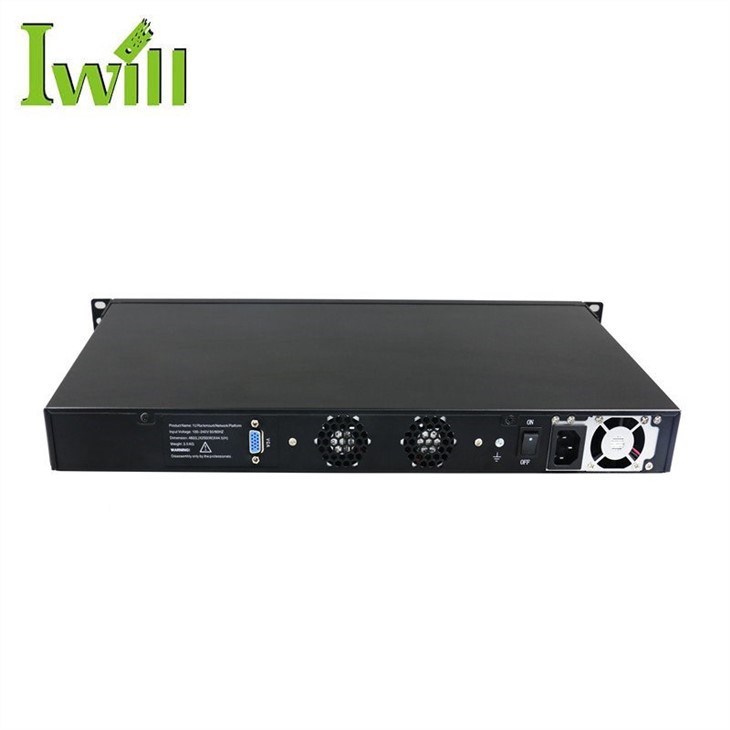

Rov qab I/O Port

1*VGA, 1*Hwj chim Hloov, 1*AC chaw nres nkoj fais fab

Kev nthuav dav qhov

1*MINI PCIE (Txhawb MSATA)

1*MINI PCIE (WIFI/Bluetooth xaiv tau)

LAN

6*Intel 82583V LAN

Cia

1*MSATA

1*2.5&"; SATA HDD (2*2.5&"SATA HDD xaiv tau)

Hwj chim Mov

110 ～ 240V/50 ～ 60Hz AC Input

Ua hauj lwm Temp

-10℃ ～ +50℃

Ua Haujlwm Vaum

5% ～ 95% tsis-condensing

Qhov ntev

440 * 250 * 44.5 hli

Qhov hnyav

3.4kg ib

Daim ntawv thov

Firewall, VPN, Network Server, Network Security, Router thiab lwm yam.
