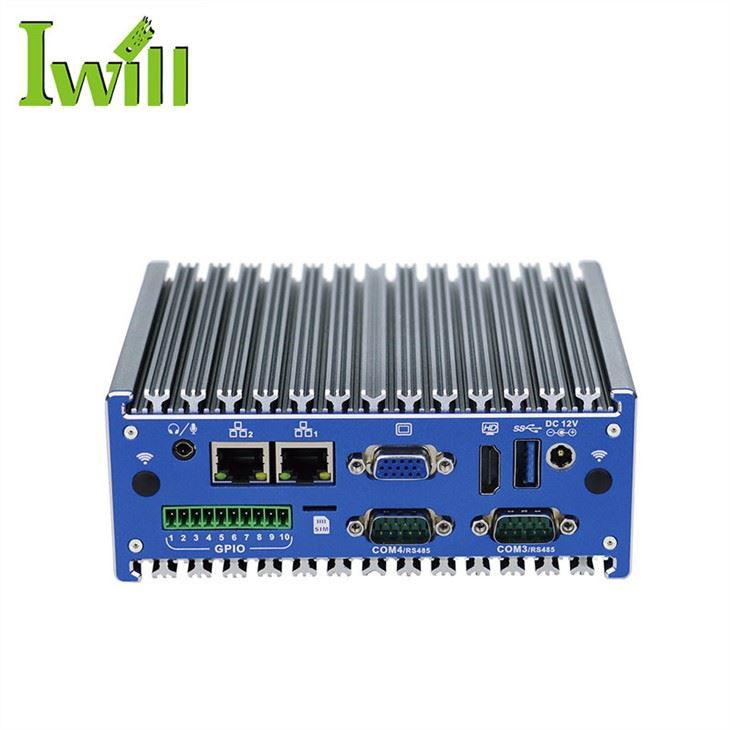

J1900 Mini PC nrog GPIO
◇ Txhua tus qauv txhuas, Ntxuam tsim;

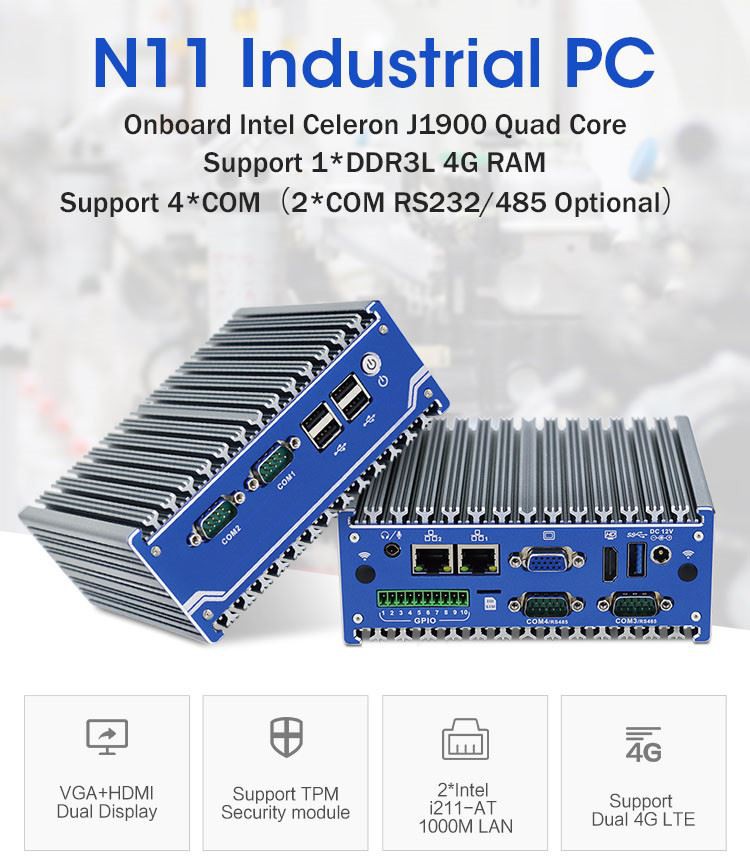

◇ Onboard Intel Celeron J1900 Quad Core Processor;
◇ Onboard DDR3L 1600 4G RAM;
◇ Txhawb 1*MSATA, 1*2.5 "HDD;
◇ Txhawb 4*COM (2*COM RS232 lossis 485 Yeem);

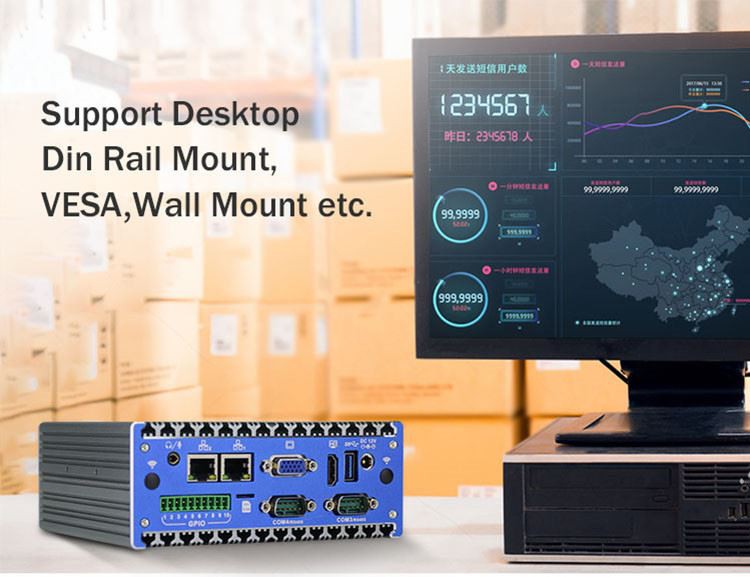

◇ Txhawb Desktop, Din Rail Mount, VESA, Wall Mount, thiab lwm yam kev teeb tsa;
◇ Applied OS:
Xa kev nug
Product Details ofJ1900 Mini PC nrog GPIO
Embedded Computer 2 Ethernet Lan Ports X 86 Muaj Mini PC J1900 Quad Core Fanless Micro PC
Kev qhia tshwj xeeb | |
Qauv | N11 |
Xim | Titanium Grey + Xiav (Xim tuaj yeem kho tau) |
Khoom siv | Zoo tshaj txhua yam txhuas, Nto anodic oxidation |
Txheej txheem | Onboard Intel Celeron J1900 (quad core, 4 threads, 2MB Cache, 1.99GHz) |
Chipset | J1900 (Tib Chip) |
RAM | Onboard DDR3L 1600 4G RAM (Onboard 2G/8G Yeem) |
BIOS | AMI UEFI BIOS |
Zaub Chip | Kev koom ua ke Intel HD Graphics |
Zaub Chaw nres nkoj | 1*VGA, 1*HDMI (Txhawb synchronous thiab asynchronous dual zaub) |

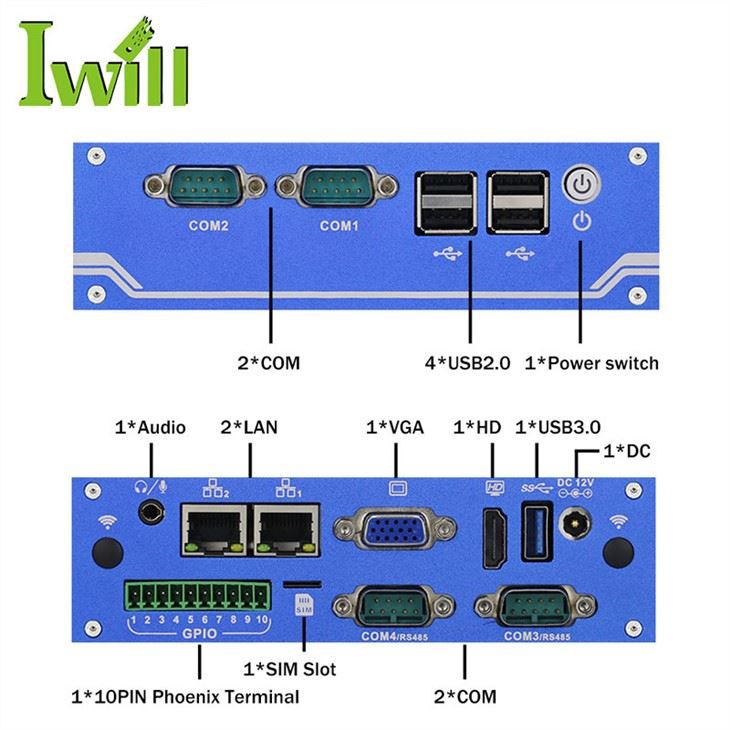

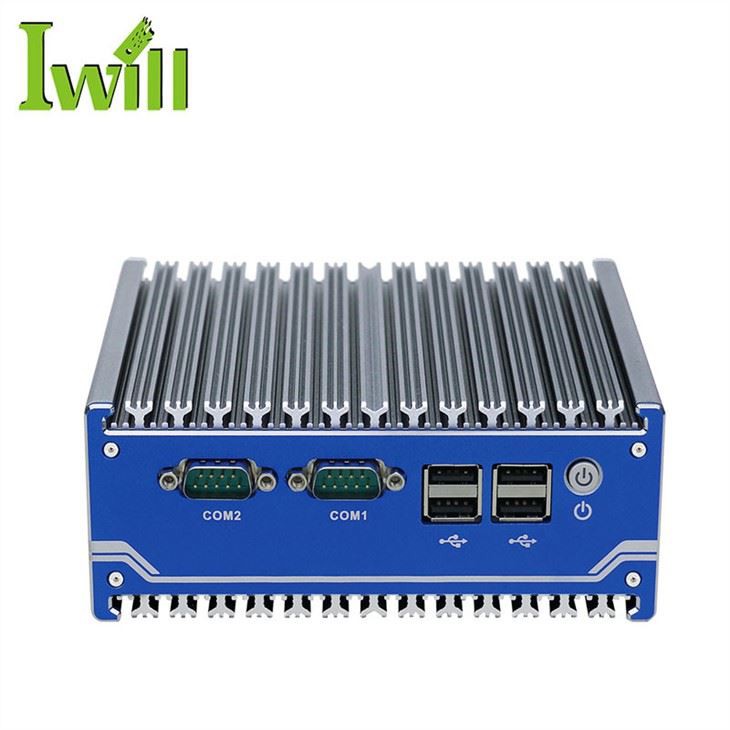

Pem hauv ntej I/O | 1*Hwj chim Hloov, 4*USB2.0, 2*COM |
Tsheb I/O | 1*DC, 1*VGA, 1*HDMI, 1*USB3.0, 2*LAN, 1*SIM Qhov |
1*Suab (Txhawb Mic thiab Hais Lus tib lub sijhawm), 2*COM (RS232/485 Yeem), 1*10PIN Phoenix Terminal (4*Tswv Yim 4*Tso zis GPIO) | |
Kev nthuav dav qhov | Txhawb 1*MINI PCIE (WIFI/Bluetooth/3G/4G Yeem) |
Txhawb 1*MINI PCIE (Txhawb MSATA; 3G/4G/SIM Yeem) | |
Yeem Ua Haujlwm: TPM (TPM 1.2 / 2.0 Module Yeem), 1*USB2.0 | |
Network | 2*Intel i211-AT 1000M LAN |
Cia | 1*MSATA, Onboard 1*2.5" HDD |
Cov tswv yim Voltage | DC 12V Tswv Yim |
Lwm Txoj Haujlwm | Pib lub zog thaum muaj hluav taws xob, Sijhawm khau raj, Tsim ntawm LAN, PXE khau raj, Saib Xyuas (0 ～ 255 qib) |
Ua hauj lwm Temp | 0 ℃ ～ +50 ℃ (Commercial HDD), -20 ℃ ～ + ℃ 60 ℃ (Muaj SSD), Huab cua saum npoo av |
Ua Haujlwm Vaum | 0% ～ 95% tsis-hws |
Daim ntawv pov thawj | CE, CCC, FCC Class A, ROHS |
Qhov ntev | 148 * 125 * 58 hli |
Net Nyhav | 1.0kg ib |
Daim ntawv thov | Automation, Kev Kho Mob, Tsheb Thauj Mus Los, Warehouse, Kev Kawm Hluav Taws Xob thiab lwm yam. |
Cim npe nrov: J1900 Mini PC nrog GPIO, Suav teb, cov chaw muag khoom, chaw tsim khoom, lub Hoobkas, lag luam wholesale, yuav, nqe, pheej yig, kev muag, ua nyob rau hauv Suav teb
Xa kev nug
