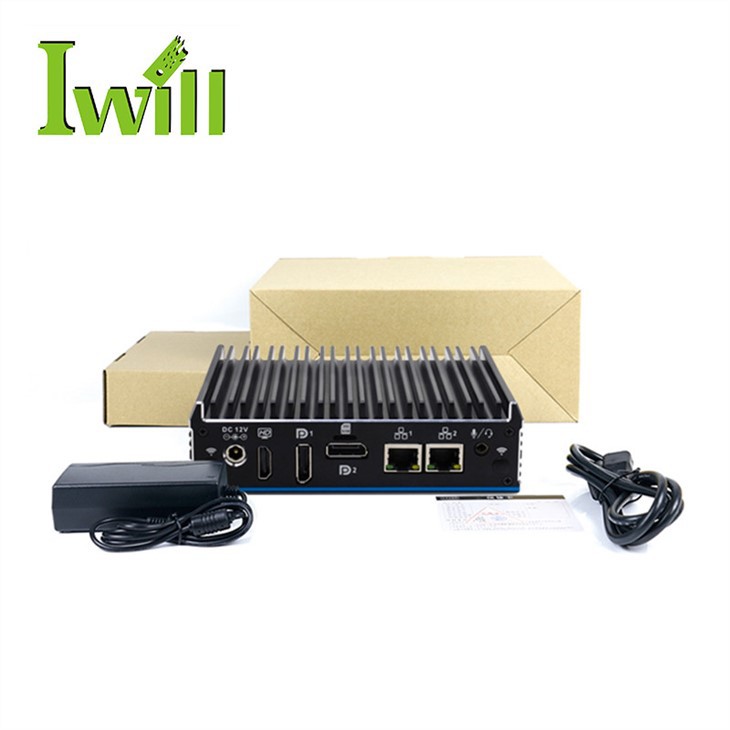

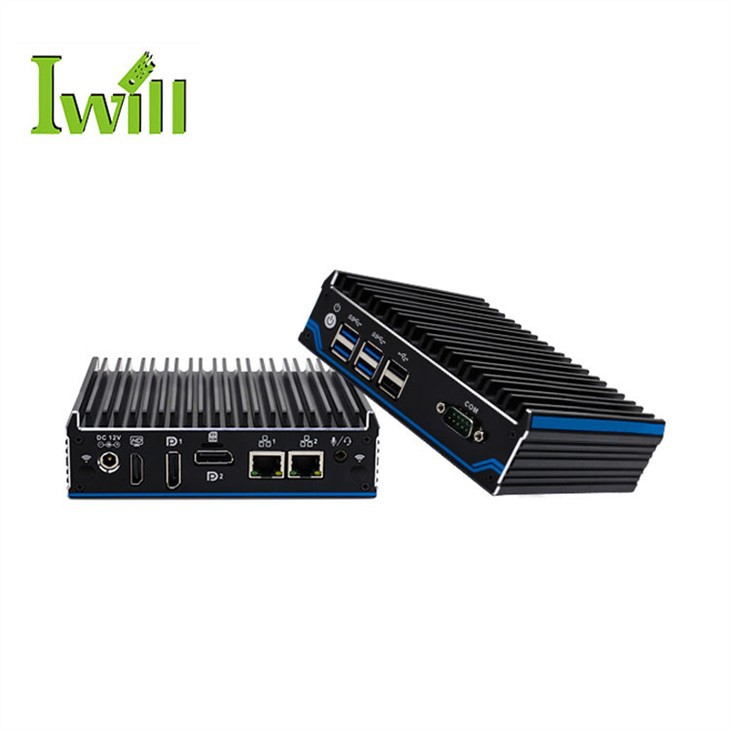

J4125 Mini PC rau Digital Signage

Qauv

Nano N1021 Cov

Xim

Dub (Xim tuaj yeem kho tau)

Khoom siv

Zoo siab txhua yam txhuas, nto anodic oxidation

Txheej txheem

Onboard Intel Celeron J4125 (Quad core quad threading, 4MB cache, 2.0GHz, Max turbo 2.7GHz)

CPU Architecture

Gemini Lake Refresh

RAM

Txhawb 1*DDR4 2400MHz SODIMM RAM Qhov, MAX 8GB

BIOS

AMI UEFI BIOS

Zaub Chip

Kev koom ua ke Intel HD Graphics 600

Zaub Chaw nres nkoj

1*HDMI, 2*DP (Txhawb synchronous thiab asynchronous peb cov zaub, Kev daws teeb meem siab tshaj 4096x2160 @ 60Hz)

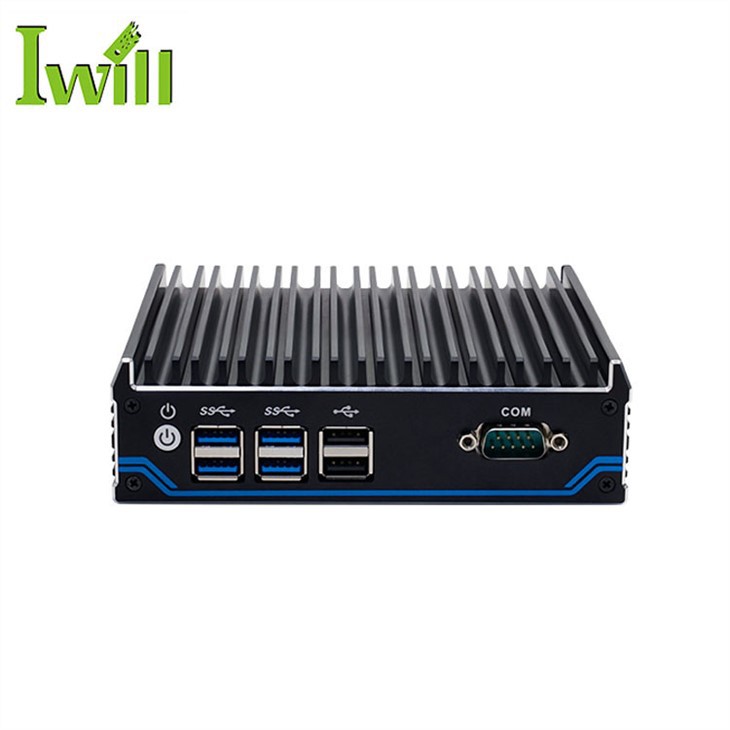

Pem hauv ntej I/O

1*Hloov fais fab, 4*USB3.0, 2*USB2.0, 1*COM

Tsheb I/O

1*DC, 1*HDMI, 2*DP, 2*Intel 1000M LAN, 1*SIM daim npav qhov, 1*Suab (txhawb suab thiab mic input)

Kev nthuav dav qhov

Kev them nyiaj yug 1*M.2 2280 M-key Slot (Support SATA)

Txhawb 1*M.2 2242 B-key Slot (Support4G), Embedded SIM slot

Txhawb 1*M.2 2230 E-key Slot (Txhawb WIFI, BT)

Muaj nuj nqi nthuav dav: TPM Pin (txhawb TPM 1.2 / 2.0 kev ruaj ntseg module), 1*COM

Network

2*10/100/1000M RTL8111H Ethernet Lan

Cia

1*M.2 2280 Qhov, Onboard 1*2.5" HDD

Cov tswv yim Voltage

Txhawb DC 12V Tswv Yim

Lwm Txoj Haujlwm

Pib lub zog thaum muaj hluav taws xob, Sijhawm khau raj, Tsim ntawm LAN, PXE khau raj

Ua hauj lwm Temp

0 ℃ ～ +50 ℃ (Commercial HDD), -20 ℃ ～ + ℃ 60 ℃ (Muaj SSD), Huab cua saum npoo av

Ua Haujlwm Vaum

0% ～ 95% tsis-hws

Daim ntawv pov thawj

CE, CCC, FCC Class A, ROHS

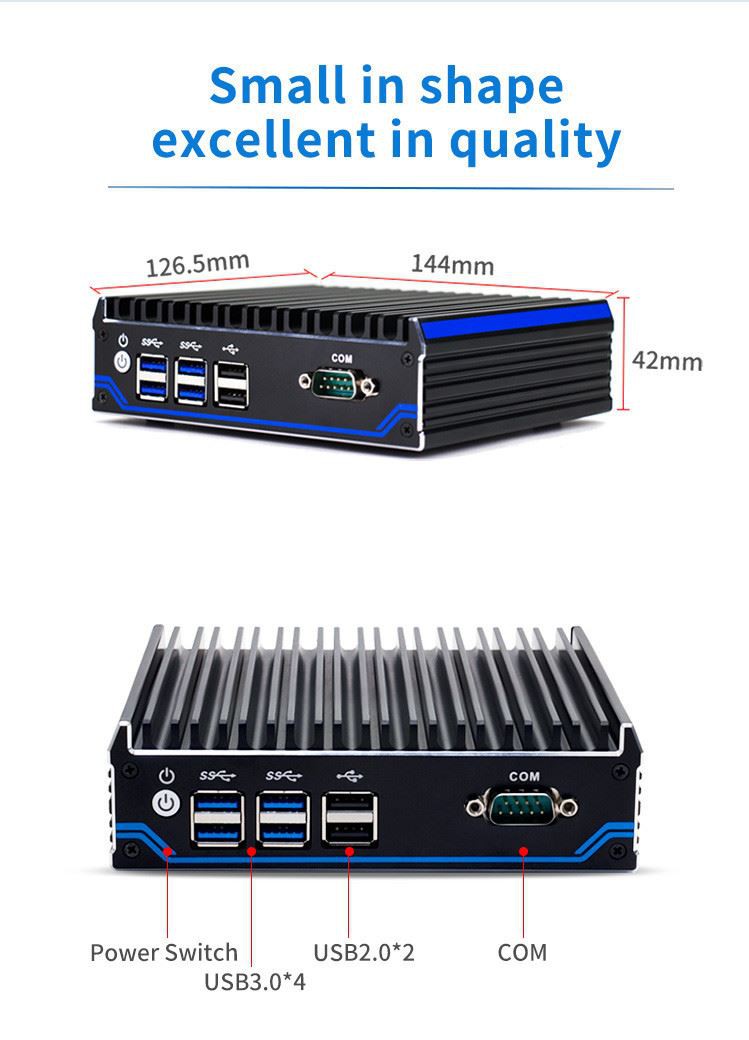

Qhov ntev

144 * 126.5 * 42 hli

Net Nyhav

0.8kg ib

Daim ntawv thov

Muaj Automation, Kho Mob, Tsheb thauj mus los Logistics, Warehouse, Kev Kawm Hauv Hluav Taws Xob, thiab lwm yam.
