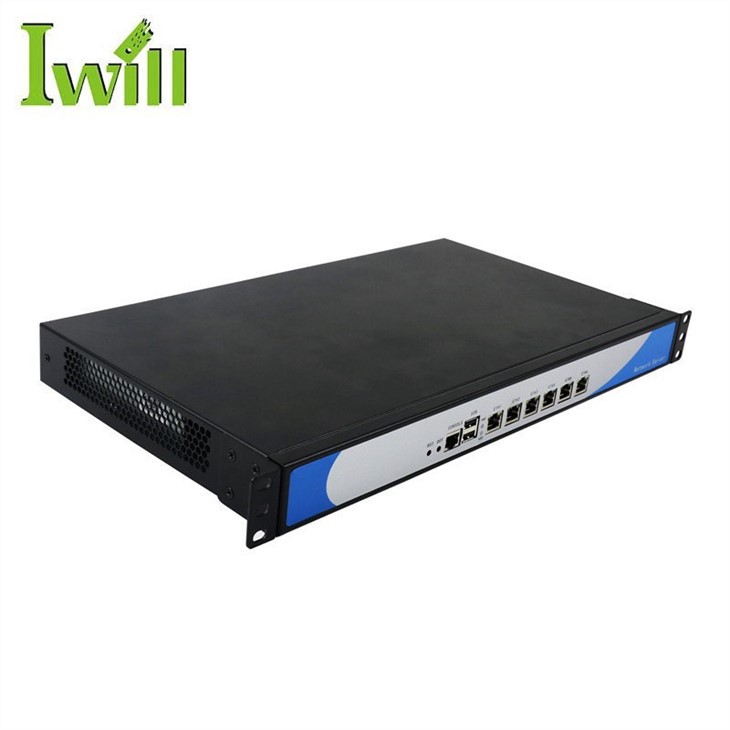

1U Firewall Server 6 LAN
◇ 1U 19 "Structure Network Security Platform;
◇ Txhawb 3th Generation Core i3 lossis i5 lossis i7 LGA1155;
◇ Max: DDR3 1333 lossis 1600 16G;
◇ Txhawb 1 * MSATA, 1 * CF qhov, 1 * 2.5 "HDD;
◇ Txhawb 1 * Mini PCIE, WIFI lossis Bluetooth;
◇ Txhawb 6 * Intel 1000M LAN; (2 * Intel i350 Gbe fiber ntau chaw nres nkoj yeem);
◇ Txhawb OS:
Xa kev nug
Product Details of1U Firewall Server 6 LAN
- 1U 19 "Structure Network Security Platform;
- Txhawb 3th tiam Core i3 i5 i7 LGA1155;
- Max:DDR3 1333/1600 16G;
- Txhawb 1 * MSATA, 1 * CF qhov, 1 * 2.5 "HDD;
- Txhawb 1 * Mini PCIE, WIFI / BT;
- Txhawb 6 * Intel 1000M LAN (2 * Optical Fiber Ports yeem);
|
Specification |
|
|
Qauv |
NS-1U8L (B75) |
|
Xim |
Dub |
|
Plhaub Khoom |
Zoo zoo ntawm cov ntawv txias-dov |
|
Processor |
Intel Core i 3 3220 (dual core, 4 threads, 3.3 GHz) |
|
Intel Core i5 3450 (quad core, 4 threads, 3.1 GHz, turbo boost 3.5 GHz) |
|
|
Intel Core i7 3770 (quad core, 8 threads, 3.4 GHz, turbo boost 3.9 GHz) |
|
|
Chipset |
Intel B75 |
|
Nco |
Txhawb 2*DDR3 1333/1600 MHz, Max: 16 GB |
|
Display Port |
1 * VGA |
|
Pem hauv ntej I/O Port |
1 * RJ45 COM (txhawb Console), 2 * USB2.0, 6 * Intel 1000M LAN |
|

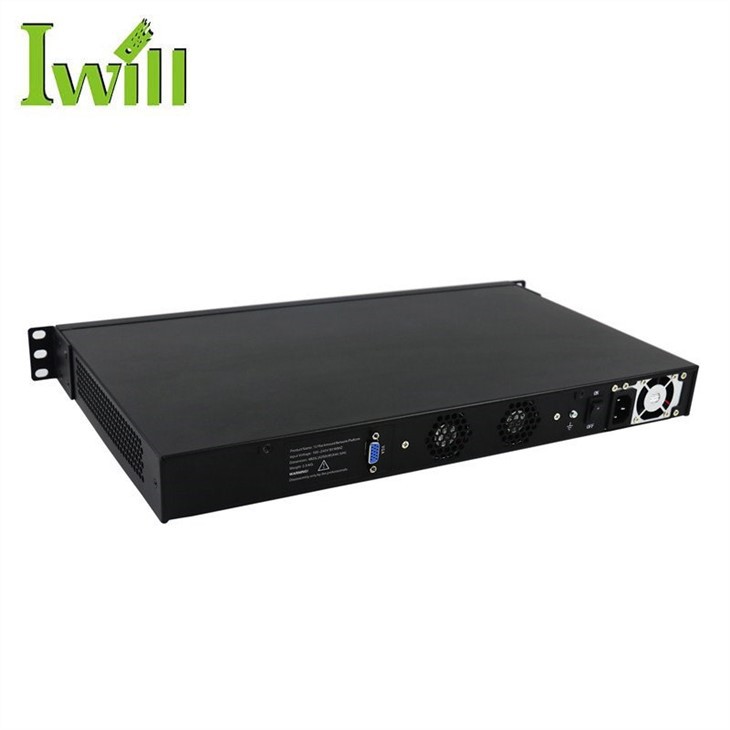

Rov qab I/O Port |
1 * VGA, 1 * Fais Fab Hloov, 1 * AC fais fab chaw nres nkoj |
|
Expansion Qhov |
1 * MINI PCIE (Txhawb MSATA) |
|
1 * MINI PCIE (WIFI / Bluetooth yeem) |
|
|
LAN |
6 * Intel 82583V LAN (2 * Intel i350 Gbe fiber ntau chaw nres nkoj yeem) |
|
Cia |
1 * MSATA |
|
1 * CF lub qhov |
|
|
1 * 2.5 "SATA HDD (2 * 2.5" SATA HDD xaiv tau) |
|
|
Fais fab mov |
110-240V/50-60Hz AC Input |
|
Ua haujlwm Temp |
-10 degree - +50 degree |
|
Ua haujlwm av noo |
5% - 95% tsis-condensing |
|
Dimension |
440 * 250 * 44.5mm |
|
Qhov hnyav |
3.4kg ib |
|
Daim ntawv thov |
Firewall, VPN, Network Server, Network Security, Router thiab lwm yam. |
Kev ua tau zoo ntawm kev suav
Standard 1U khib neeg rau zaub mov, txhawb computer-intensive thiab huab kev siv txuag lub zog, txo TCO, simplifes tswj thiab tu.
Txhawb Intel Core i3 / i5 / i7 processor ua haujlwm siab rau kev suav siv ntau
