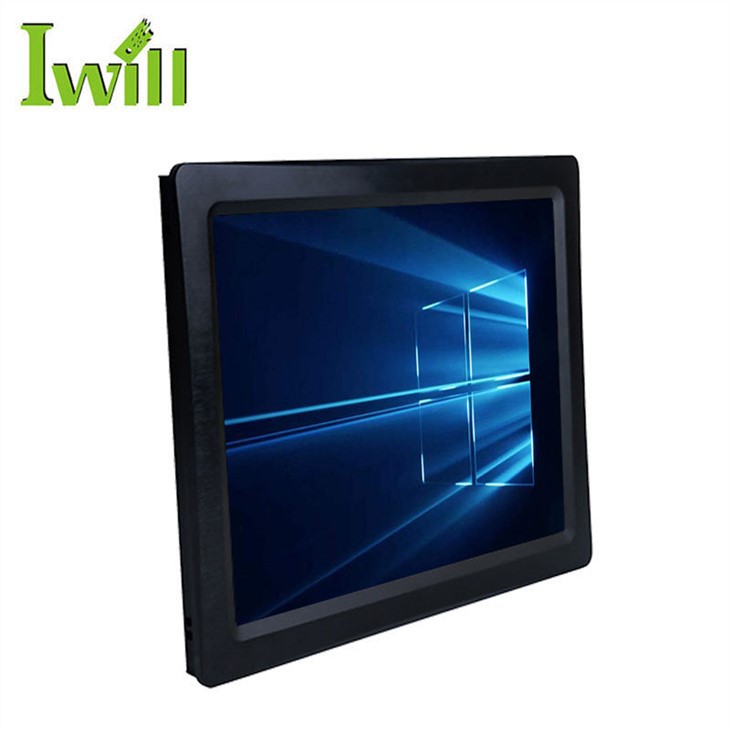

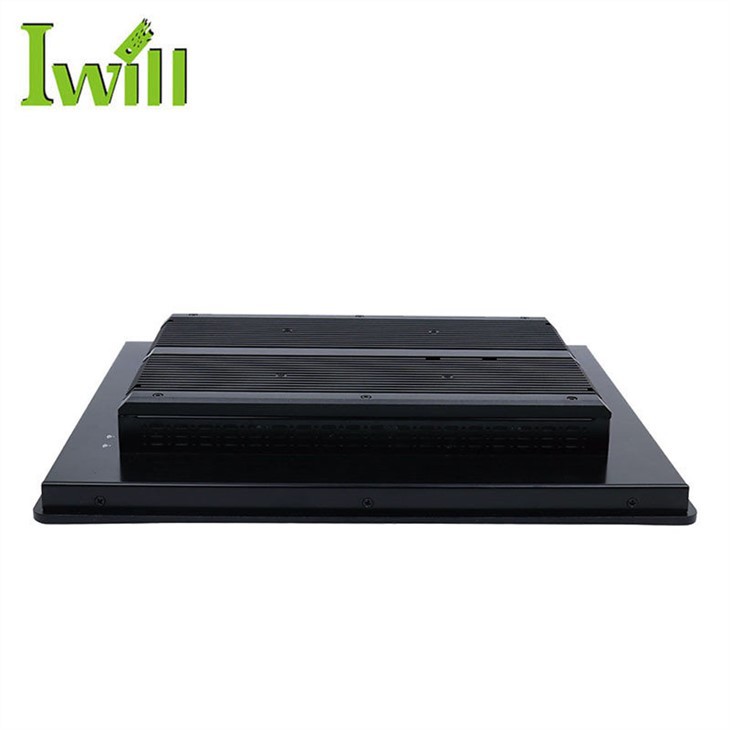

15 Nti J1900 I5 Fanless Vaj Huam Sib Luag PC

Qauv

ITPC-A150 CT (TSI)

Xim

Dub (Txhua xim tuaj yeem kho tau)

Khoom siv

Aluminium pc rooj plaub

Txheej txheem

Onboard Intel Celeron J1900 (Quad core quad threading, 1.99Ghz, 2MB Cache)

Onboard Intel Core i5 4210U (Dual Core quad threading, 1.7Ghz, Max. Turbo boost rau 2.7Ghz, 3MB Cache)

Onboard Intel Core i5 6360U (Dual Core quad threading, 2.0Ghz, Max. Turbo txhawb rau 3.1Ghz, 4MB Cache)

Chipset

Intel CPU Integrated Chip

Nco

J1900 version thiab i5-4210U version: Txhawb 1*DDR3L 1333/1600 RAM Qhov, Max txhawb 8GB

i5-6360U: Txhawb 2*DDR3L 1333/1600 RAM qhov, txhawb nqa 16GB

BIOS

64 Mb Flash ROM

Zaub Chip

J1900: Kev koom ua ke Intel HD Graphics

i5-4210U: Kev koom ua ke Intel HD Graphics 4400

i5-6360U: Kev koom ua ke Intel® Iris® Graphics 540

Zaub Chaw nres nkoj

1*VGA, 1*HDMI, 1*LVDS; (Txhawb synchronous thiab asynchronous dual zaub)

Cia

Txhawb 1*MSATA, 1*2.5" HDD

Nthuav dav

Txhawb 1*Mini PCIE Qhov, (WIFI/Bluetooth/3G/4G Yeem, Embedded 1*SIM Qhov)

I/O

1*VGA, 1*HDMI, 2*RS232 COM, 6*COM Yeem (COM3 RS232/RS422/RS485 Yeem)】

1*1000M LAN 【2*LAN yeem】, 1*DC, 1*3Pin Fais Fab Txuas, 1*Mic, 1*Kab Tawm

2*USB3.0, 2*USB2.0 【J1900 version yog nrog 1*USB3.0, 3*USB2.0】

LCD

Loj: 15 nti TFT-LCD

Piv: 4: 3; Kev daws teeb meem: 1024 * 768

Ci ntsa iab: 300 cd/m²; Saib Lub Ntsej Muag: Lub Ntsej Muag Tag Nrho

Kov Screen

Capacitive type multi touch screen, Lub Neej Lub Neej: ntau dua 50000 Txhiab Sijhawm

Hais lus

2*8-ohm 2-watt hais lus

Hwj chim Mov

DC 12V (DC 9 ～ 36V Kev Xaiv Yeem)

Ua hauj lwm Temp

0 ℃ ～ +50 ℃ (HDD), -20 ℃ ～ + 60 ℃ (SSD), huab cua ntws ntws

Ua Haujlwm Vaum

5% ～ 95% Tsis-Hws

Qhov ntev

373 * 298 * 59 hli

Kev Nruab Nruab

363 * 288 hli

Qhov hnyav

5,0kg ua

Daim ntawv thov

Kev lag luam automation, kev kho mob, kev thauj mus los logistics, kev khaws khoom, kev kawm hluav taws xob thiab lwm yam haujlwm
