Fanless Mini PC I3 I5
◇ Txhua tus qauv txhuas, kiv cua mini pc;
◇ Onboard Intel Core I3 8130U;
◇ 1*DDR{1}}/2666MHZ (4GB/8GB/16GB) MAX: 16G;
◇ Txhawb 1 * M.2 Qhov, 1 * 2.5 "HDD;
◇ Txhawb WIFI lossis 3G lossis 4G (Xaiv ib qho ntawm Peb);
◇ Txhawb 4 * USB3.0, 2 * USB2.0;
◇ Txhawb OS:
Xa kev nug
Product Details ofFanless Mini PC I3 I5
Fanless Mini PC N13L2 yog ib qho compact NANO nrog tag nrho txhuas ruaj tsis muaj kiv cua tsim, nws tuaj yeem siv rau Industrial Automation, Kev Kho Mob, Logistics Transportation, Warehouse, Electronic Education thiab lwm yam.,
|
Specification |
|
|
Qauv |
N13-L2 |
|
Xim |
Dub (xim tuaj yeem kho tau) |
|
Khoom siv |
Siab - zoo tag nrho txhuas, nto anodic oxidation |
|
Processor |
Intel Core I3 8130U (dual core quad threading, 2.4GHz) |
|
Intel Core I5 7200U (dual core quad threading, 2.5GHz, Max turbo 3.1GHz) |
|
|
CPU Architecture |
KabyLake-U |
|
RAM |
Txhawb 1 * DDR4 DDR4 2400 / 2666MHZ (4GB / 8GB / 16GB) MAX: 16GB |
|
Zaub Chip |
Integrated Intel HD Graphics 620 |
|
Display Port |
1 * HDMI, 1 * DP, Txhawb 4K daws teeb meem |
|

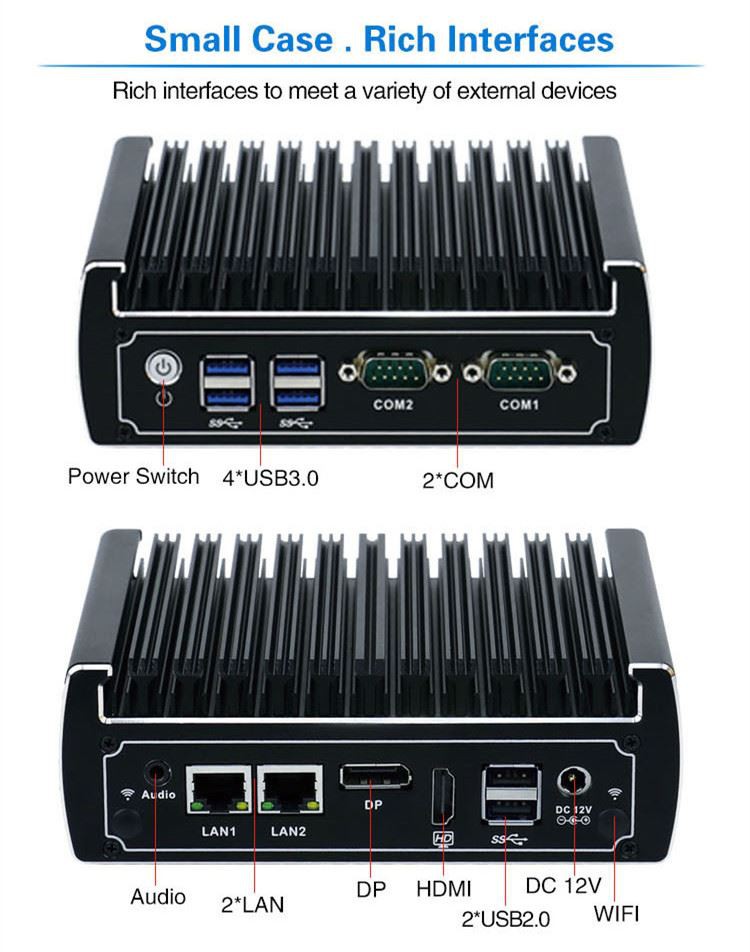

Pem hauv ntej I/O |
4 * USB 3.0, 1 * Fais fab Hloov, 2 * COM |
|
Rov qab I/O |
2 * RJ45 LAN, 2 * USB 2.0, 1 * HDMI, 1 * DP, |
|
1 * Suab (Support Mic thiab hais lus tib lub sijhawm), 1 * DC 12V Input |
|
|

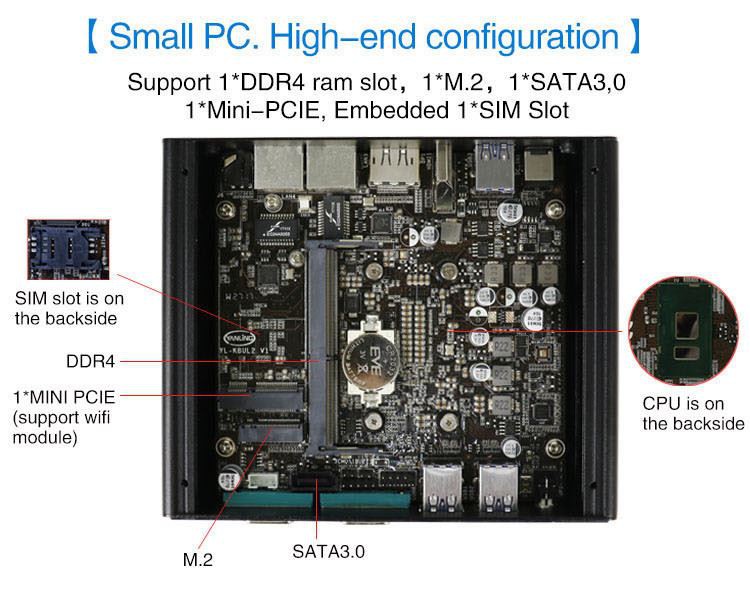

Expansion Qhov |
Kev them nyiaj yug 1*M.2 2280 Qhov Slot (Compatible nrog PCIE X4 thiab SATA teeb liab) |
|
Kev them nyiaj yug 1 * MINI PCIE Slot (WIFI / 3G / 4G Yeem), kos SIM qhov nyob sab nraub qaum |
|
|
Network |
2 * RTL8111E 10/100/1000M LAN |
|
Cia |
1 * M .2 2280 Qhov, 1 * 2.5" HDD |
|
Input voltage |
Txhawb DC 12V Input |
|
Lwm Txoj Haujlwm |
Nws pib lub hwj chim thaum muaj hluav taws xob, Timing khau raj, Wake ntawm LAN, PXE khau raj, Watchdog (0-255 qib) (Standard version tsis teeb tsa cov haujlwm no) |
|
Ua haujlwm Temp |
0℃- +50℃(Commercial HDD), -20℃- +50℃(Industrial SSD), Surface cua ntws |
|
Ua haujlwm av noo |
5% - 95% tsis yog -condensing |
|
Daim ntawv pov thawj |
CE, CCC, FCC Class A, ROHS |
|
Dimension |
155 * 126.5 * 52.5mm |
|
Net nyhav |
1.6kg ib |
|
Daim ntawv thov |
Industrial Automation, Kev Kho Mob, Logistics Transportation, Warehouse, Electronic Education thiab lwm yam. |
Mini PC yog dab tsi?
tam sim no tsis muaj qhov xav tsis thoob tias qhov nce ntxiv ntawm cov khoom siv hluav taws xob tshiab tau los rau hauv lub neej. Ib qho ntawm cov khoom siv nrov tsis ntev los no yog mini-PC. Nws tseem hu ua nettop, me me PC, lossis Smart Micro PC.
Nws tsuas yog ib qho me me, pheej yig thiab tsis tshua muaj -lub zog lub khoos phis tawj lub khoos phis tawj npaj, tshwj xeeb tshaj yog rau kev tshawb xyuas lub vev xaib, siv cov ntawv thov thiab cov ntaub ntawv, lossis ua si suab thiab video. Tsis tsuas yog nws me me thiab pheej yig dua li ib txwm desktop computer, tab sis nws kuj txuag tau ntau lub zog. Nws siv kwv yees li 8 watts thaum lub desktop ib txwm - ntau dua 100 watts. Yog li, mini-PC zoo li yog eco- hloov pauv tus phooj ywg zoo rau cov desktop PCs thiab laptops.
Koj yuav xav tau lwm cov khoom siv Peripherals Yuav mini-PC tsis txhais hais tias koj yuav muaj lub vijtsam, keyboard, thiab nas ib yam. Hmoov tsis zoo, koj yuav tau rov qab siv tib lub peripherals los ntawm koj lub computer qub, lossis yuav cov tshiab. Nyob rau hauv rooj plaub tom kawg, nco ntsoov xaiv cov zaub sab nraud nrog HD lossis VGAcompatibility, nrog rau, cov keyboard, thiab nas nrog USB cables txuas nrog lub PC. Nws yog ib qho tseem ceeb heev txij li thaum, txwv tsis pub, koj yuav tsis tuaj yeem siv koj lub mini-PC kom tag nrho.
Hais txog I3 I5 Dual Lan Fanless Mini PC Ntau cov ntaub ntawvtxais tos tham tam sim no !
