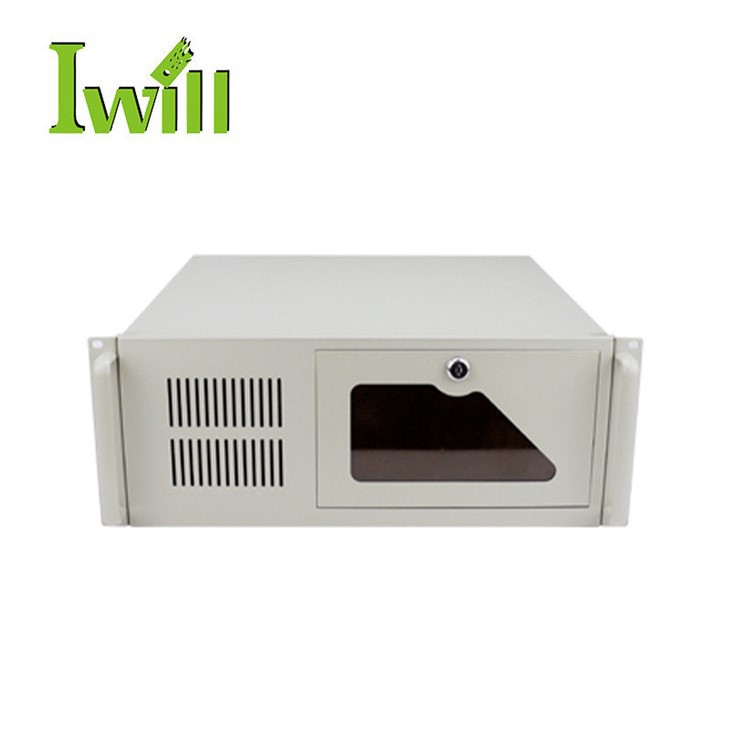

I3 I5 I7 Muaj PC nrog 4 PCI

Qauv

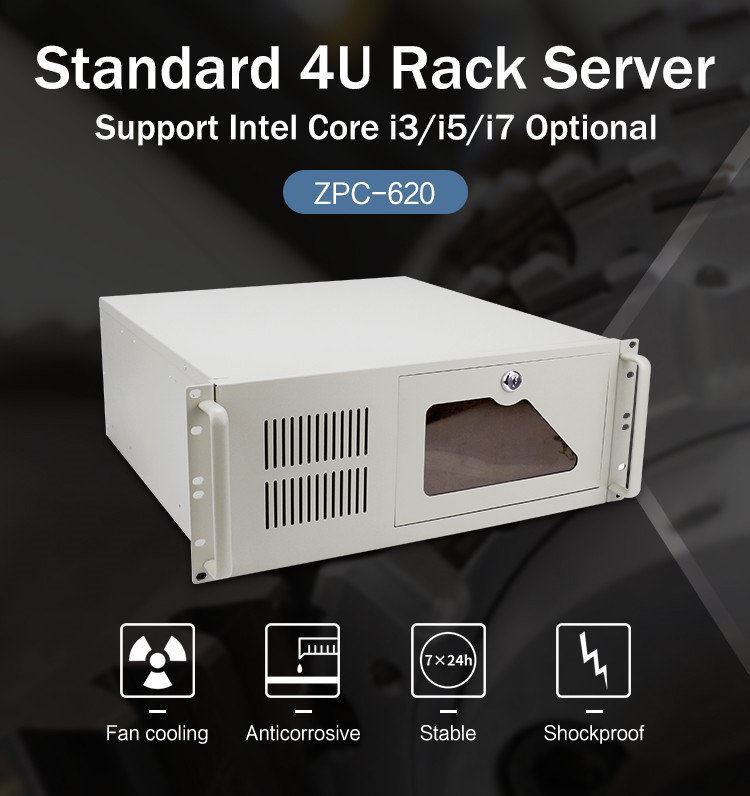

ZPC-620 (H110)

Xim

Dawb (txhua xim tuaj yeem kho tau)

Khoom siv

Siab tsis muaj paj galvanized ntawv

Txheej txheem

Intel Core i3 6100 (dual core, 4 xov, 3.7 GHz)

Intel Core i5 6500 (quad core, 4 threads, 3.2 GHz, Turbo boost 3.6 GHz)

Intel Core i7 6700 (quad core, 8 threads, 3.4 GHz, Turbo boost 4.0 GHz)

CPU Qauv

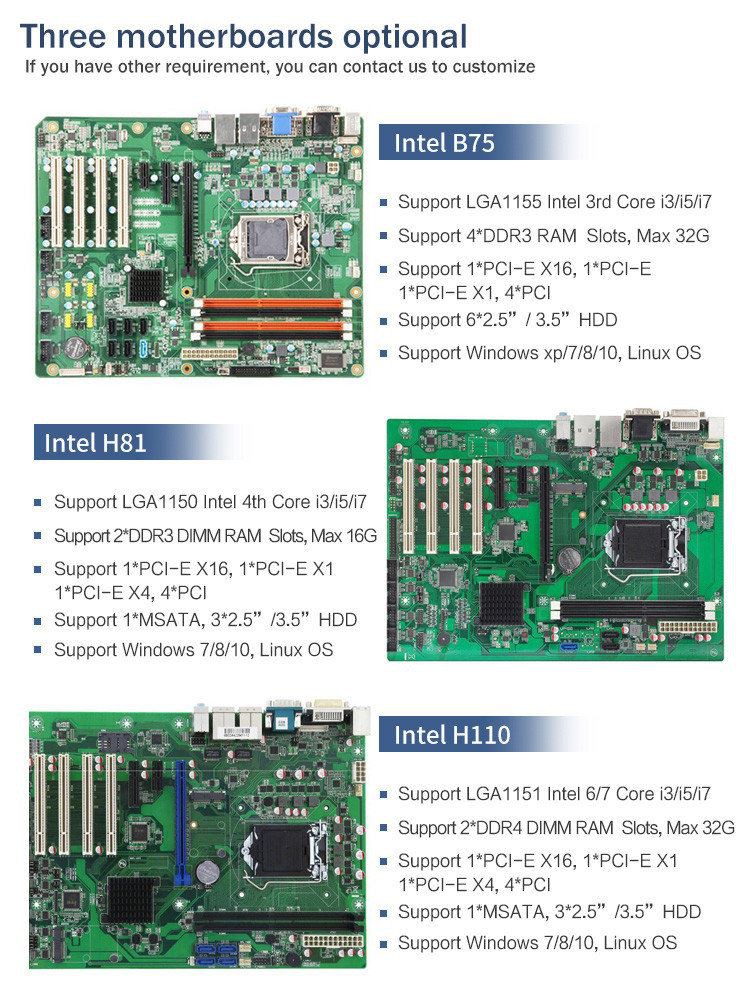

Intel H110 Cov

RAM

2*DDR4 2133/2400 DIMM, Max: 32GB

BIOS

AMI UEFI BIOS

Zaub Chip

Kev koom ua ke Intel HD Graphics 530

Zaub Chaw nres nkoj

1*VGA, 1*DVI-D, 1*HDMI (synchronous thiab asynchronous dual zaub)

Pem hauv ntej I/O

2*USB2.0, 2*LED, 1*Hloov Hloov, 1*Pib dua

Tsheb I/O

4*USB3.0, 2*Intel 1000 LAN, 1*VGA, 1*DVI-D, 1*HDMI
1*PS/2, 3*Suab, 6*COM (COM3, 4*RS232/485 yeem)

Kev nthuav dav qhov

1*PCIE X16, 1*PCIE X1, 1*PCIE X4, 4*PCI

1*MINI PCIE (Txhawb MSATA)

Nthuav Tawm Chaw Nres Nkoj

GPIO, LPT, 1*USB2.0 Yeem

LAN

1*Intel i211-AT, 1*Intel i219-LM

Cia

1*MSATA SSD, 3*2.5" /3.5" HDD

Hwj chim Mov

AC 180 ～ 264 V (50 ～ 60Hz), 300W Rated Fais Fab

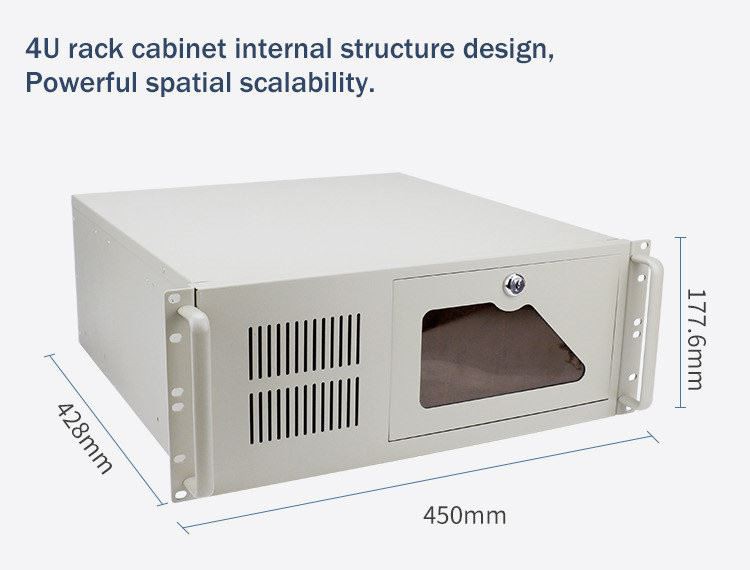

Qhov ntev

428 * 450 * 177.6 hli

Qhov hnyav

12.5 kg (Barebone)

Daim ntawv thov

Thov hauv Network server, KIOSK, Tshuab Tshaj Tawm, Kev Pabcuam Tus Kheej, Hluav Taws Xob Whiteboard, ATM, POS/Muag Khoom, Networking.
