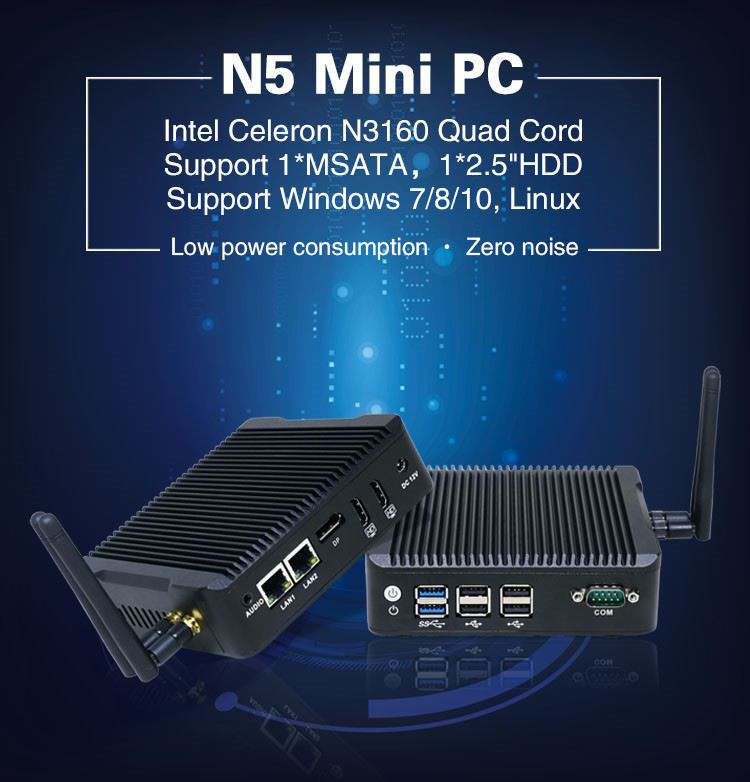

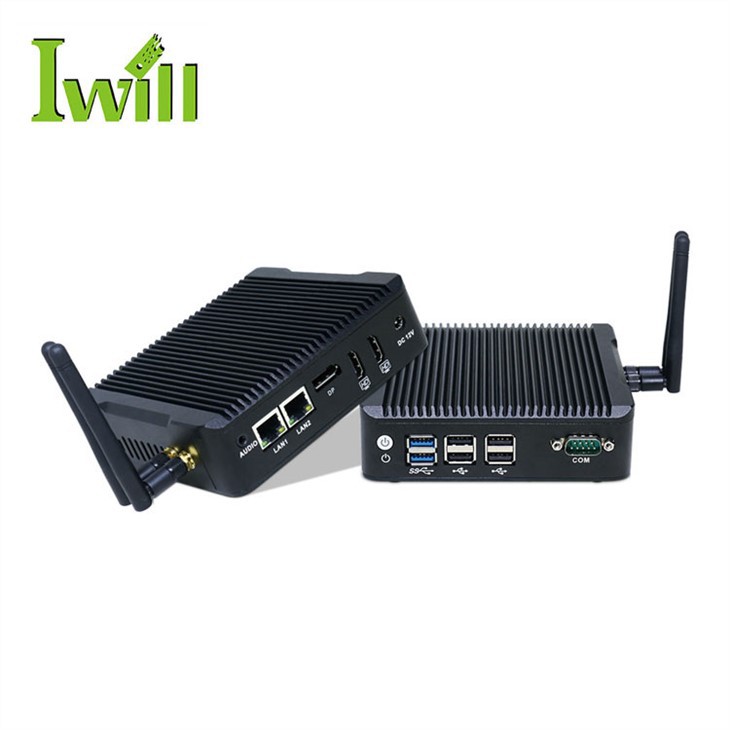

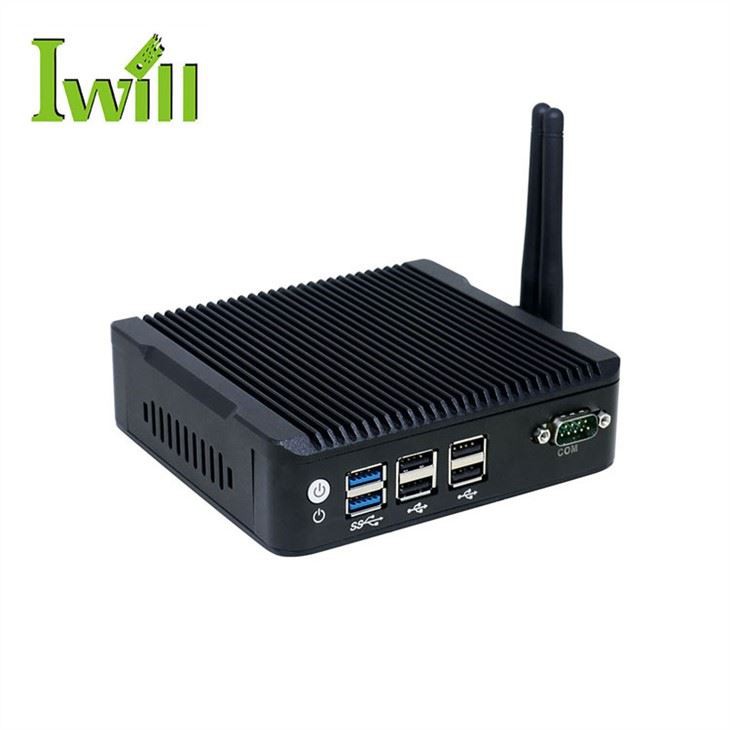

Celeron N3160 Pentium N3700 Mini PC

Qauv

N5

Xim

Dub (Xim tuaj yeem kho tau)

Khoom siv

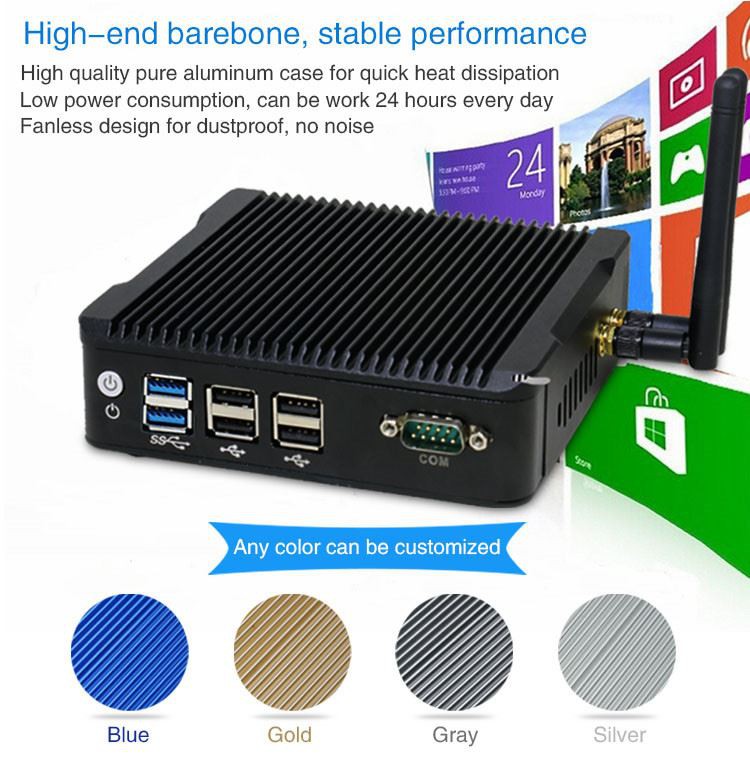

Zoo siab txhua yam txhuas, nto anodic oxidation

Txheej txheem

Intel Celeron N3160 (Quad core quad threading, 2MB Second Cache, 1.6 GHz)

RAM

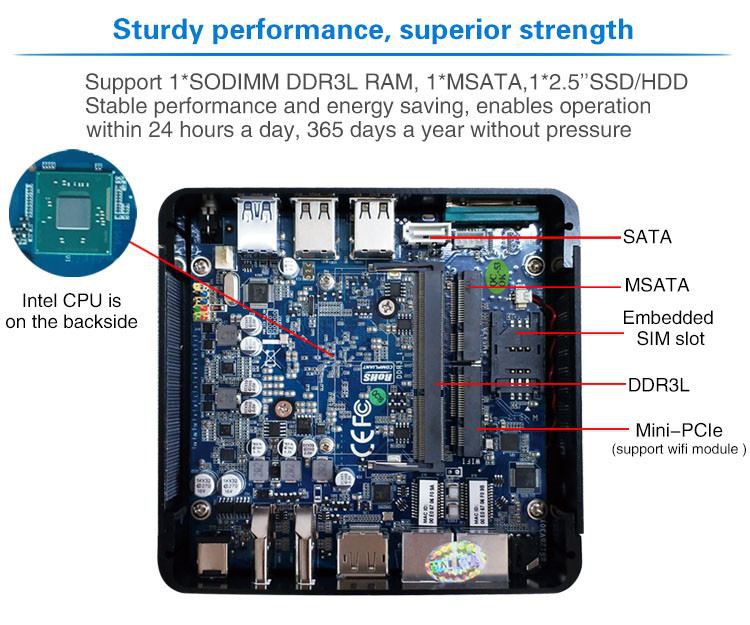

Txhawb 1*DDR3L 1333/1600MHz SODIMM RAM Qhov, Max. Txhawb 8GB

BIOS

AMI UEFI BIOS

Zaub Chip

Kev koom ua ke Intel HD Graphics

Zaub Chaw nres nkoj

1*DP, 2*HDMI (Txhawb synchronous thiab asynchronous peb cov zaub)

(DP, HDMI Max. Kev daws teeb meem: 3840 × 2160 @ 30Hz)

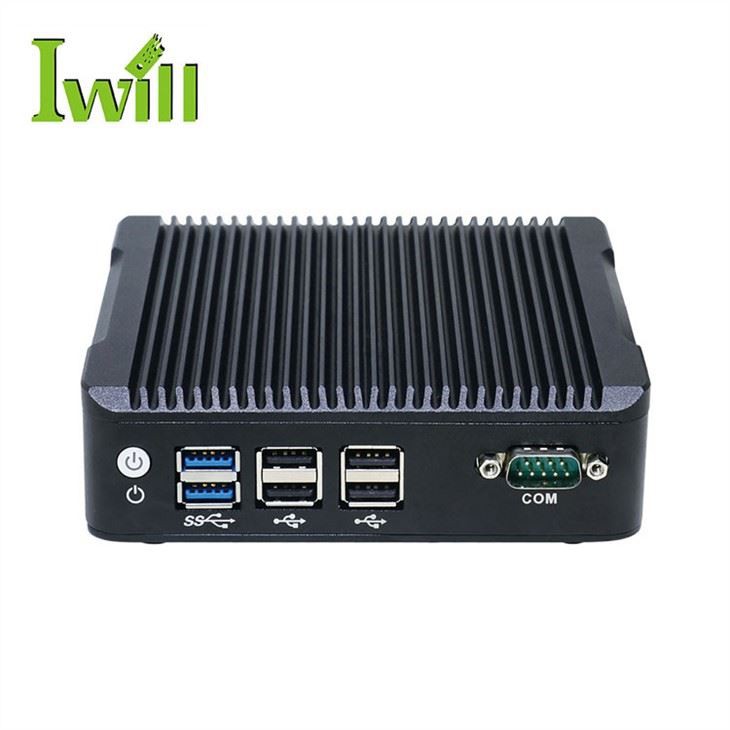

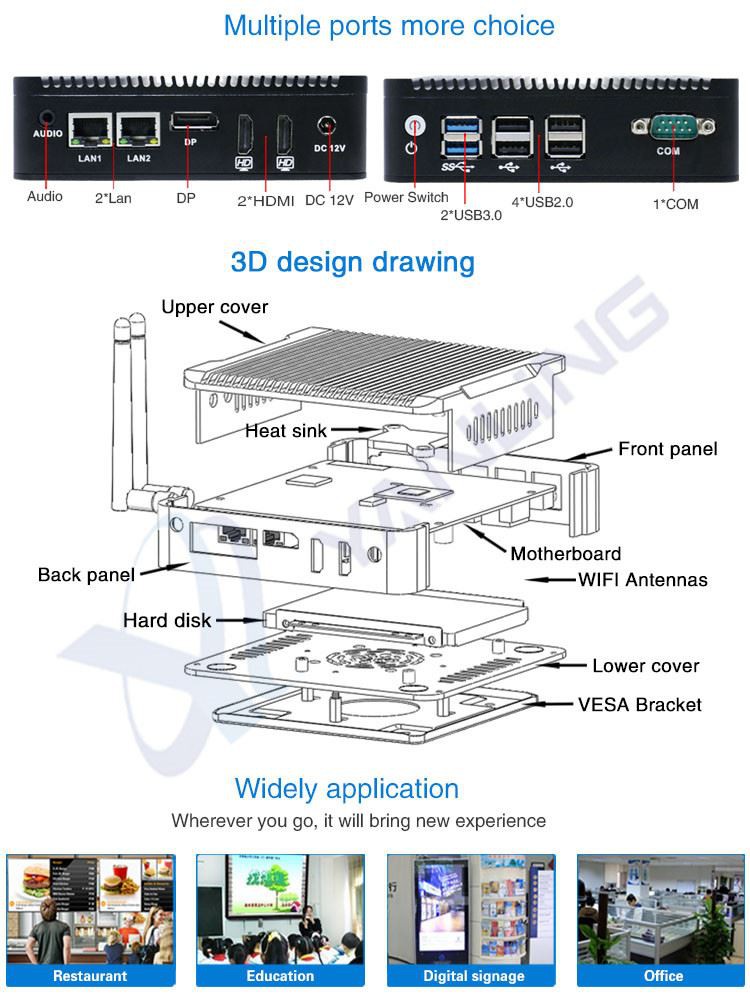

Pem hauv ntej I/O

1*Hwj chim Hloov, 2*USB3.0, 4*USB2.0, 1*RS232 COM

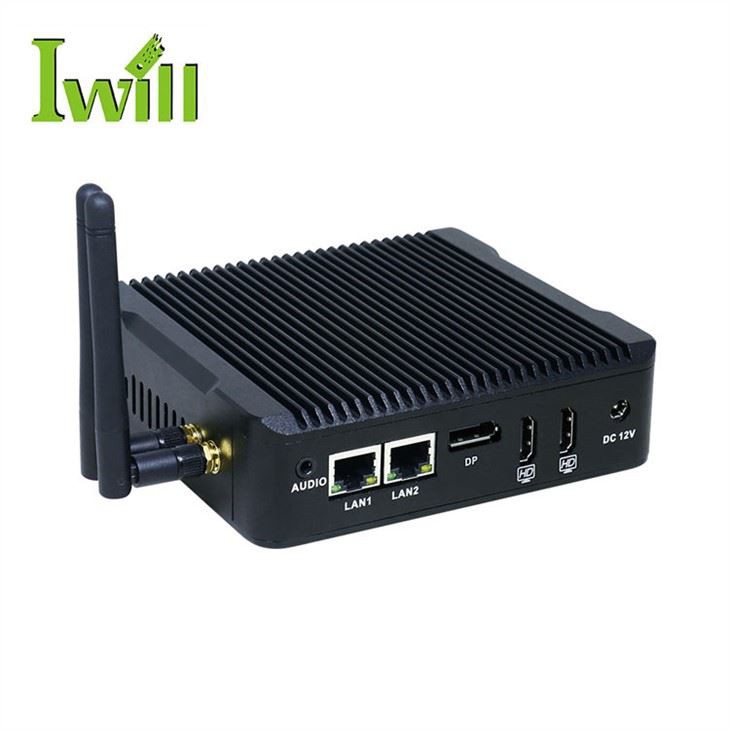

Tsheb I/O

1*Suab, 2*RJ45 LAN, 1*DP, 2*HDMI, 1*DC Input

Kev nthuav dav qhov

Txhawb 1*MINI PCIE Qhov (Txhawb MSATA)

Kev them nyiaj yug 1*MINI PCIE Qhov (WIFI/3G/4G Yeem Xaiv), Tso SIM SIM

Network

2*10/100/1000M RTL8111E 1000M LAN

Cia

1*MSATA, 1*2.5" HDD

Cov tswv yim Voltage

Txhawb DC 12V Tswv Yim

Lwm Txoj Haujlwm

Pib lub zog thaum muaj hluav taws xob, Sijhawm khau raj, Tsim ntawm LAN, PXE khau raj, Watchdog (0 ～ 255 qib) (Cov qauv txheej txheem tsis' t teeb tsa cov haujlwm no)

Ua hauj lwm Temp

0 ℃ ～ +50 ℃ (Commercial HDD), -20 ℃ ～ +50 ℃ (Muaj SSD), Cov huab cua ntws ntws

Ua Haujlwm Vaum

5% ～ 95% tsis-condensing

Daim ntawv pov thawj

CE, CCC, FCC Class A, ROHS

Qhov ntev

134 * 126 * 38.5 hli

Net Nyhav

0.7kg ib

Daim ntawv thov

Muaj Automation, Kho Mob, Tsheb thauj mus los Logistics, Warehouse, Kev Kawm Hauv Hluav Taws Xob thiab lwm yam.
