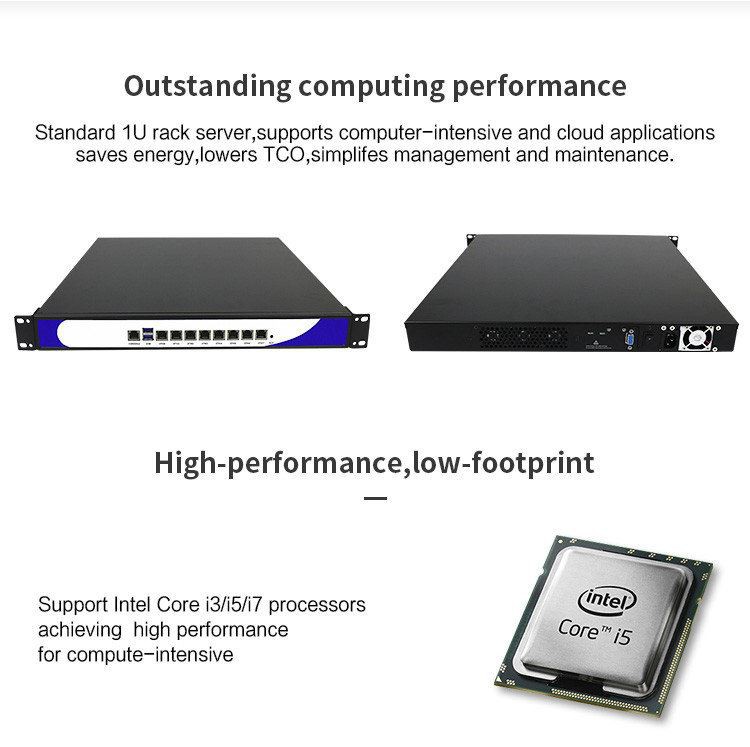

1U 19 nti Rack Mount Network Security Server
◇ 1U 19 nti Rack Mount Network Security Server;
◇ Txhawb 6th 7th Desktop Core i3 lossis i5 lossis i7 CPU;

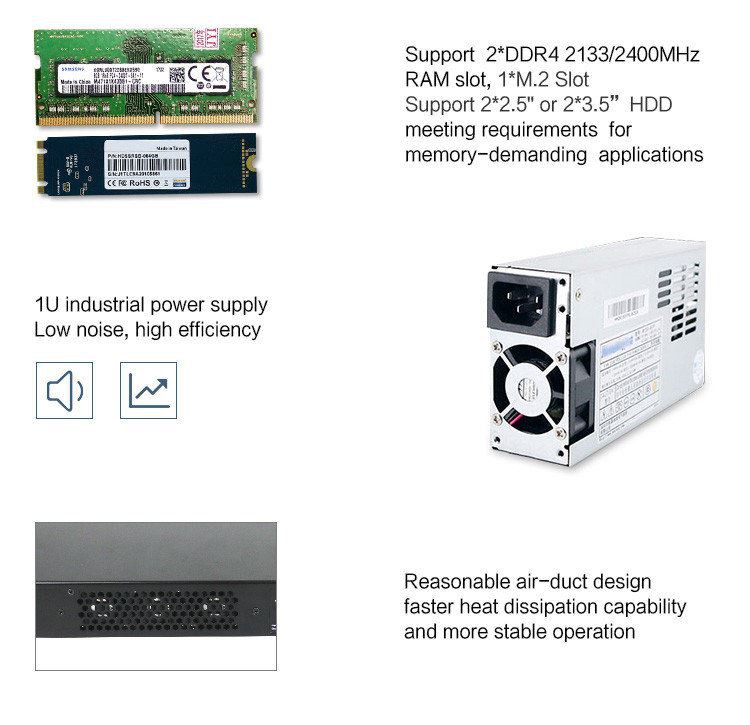

◇ Txhawb 2* DDR4 2133 lossis 2400 32G;
◇ Txhawb 1 * M.2, 2 * 2.5 lossis 3.5 nti SATA;
◇ Txhawb 2 * PCI-E X8 Qhov;
◇ Txhawb 8 * Intel 1000M Lan;
◇ Applied OS:
Xa kev nug
Product Details of1U 19 nti Rack Mount Network Security Server
19 Nti Rack Mount Server
1U 19 nti Rack Mount Network Security Server nruab 6th 7th 8th Desktop Core i3 i5 i7 CPU, 4 Cores 4 threads lossis 6 Cores 12 threads xaiv tau, kev sib xyaw Intel C236 Chipset, Txhawb 2 DDR4 2133/2400MHz SODIMM ram,Max 32 GB, muaj peev xwm txhawb nqa ib qho M.2 thiab ob2.5 nti lossis 3.5 nti SATA, qhov chaw nres nkoj network txhawb yim intel gigabit lan.aApplied hauv kev ruaj ntseg network, Kev ruaj ntseg cia, Muaj thiab kev sib txuas lus qib servers, IoT ntug ntse kev daws teeb meem thiab kev pabcuam, tsheb network kev ruaj ntseg daws teeb meem.
|
Specification |
|
|
Qauv |
NS -1U8L (C236) |
|
Xim |
Dub |
|
Khoom siv |
High Quality Steel |
|
Processor |
Intel Core i3-8100T (Quad Core, 4 xov, 3.1 GHz) |
|
Intel Core i5-8500T (6 Core, 6 xov, 2.1 GHz, Turbo txhawb rau 3.5 GHz) |
|
|
Intel Core i{{0}}T (6 Core, 12 xov, 2.4 GHz, Turbo txhawb rau 4.0 GHz) |
|
|
Chipset |
Intel C236 |
|
Nco |
Txhawb 2 * DDR4 2133 / 2400MHz SODIMM Ram, Max 32 GB |
|
Display Port |
1 * VGA (1 * HD-MI tuaj yeem nthuav dav) |
|

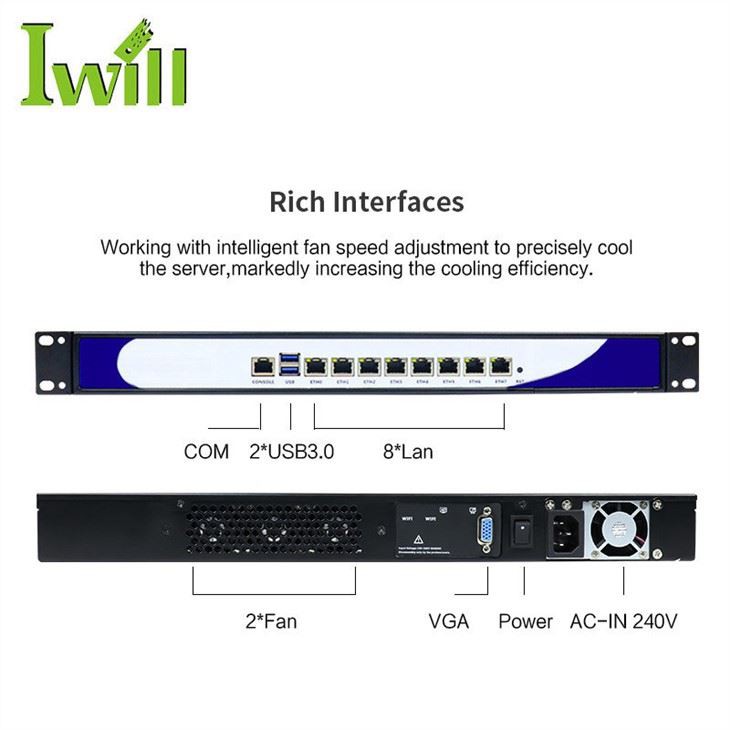

Pem hauv ntej I/O |
1 * RJ45 COM (kev txhawb nqa console muaj nuj nqi), 2 * USB3.0, 8 * Intel Gbe Lan |
|
Pem hauv ntej I/O |
1 * VGA, 1 * hwj chim SW, 1 * AC input port |
|
Kev nthuav dav |
Txhawb 2 * PCI-E X8 (4 * 1000M Lan lossis 4 * 1000M SFP) |
|
Txhawb 1 * M.2 Qhov (Support 2260/2280) |
|
|
Txhawb 1 * MINI PCIE (WIFI / BT / 3G / 4G yog xaiv tau) |
|
|
Network Chaw nres nkoj |
8 * Intel i211-AT 1000M Lan |
|
Cia |
Txhawb 1*M.2 2280 |
|
Txhawb 2 * 2.5 / 3.5 nti SATA |
|
|
Tswv yim |
110-240V/50-60Hz AC Input |
|
Ua haujlwm Temp |
-10 degree - +50 degree |
|
Cov av noo |
5% - 95% Tsis-condensing |
|
Loj |
482 * 501 * 44.5mm |
|
Qhov hnyav |
7,2kg :ua |
|
Daim ntawv thov |
Firewall, VPN, Network Server, Network Security, Router thiab lwm yam. |
Qhov loj npaum li cas yog 1U khib mount server?
1.75 "los ntawm 19"
Servers tuaj nyob rau hauv qhov ntau thiab tsawg ntawm: 1U, 2U, thiab 4U. Thaum cov neeg rau zaub mov qhov ntau thiab tsawg yuav txawv me ntsis nyob ntawm qhov tsim thiab qauv, 1U server feem ntau nyob ntawm qhov ntev ntawm 1.75 "los ntawm 19" ntawm qhov chaw khib. Kuj tseem muaj 2U thiab 4U servers, uas muaj kev suav ntau dua tab sis siv ntau qhov chaw ntawm lub khib.
Cim npe nrov: 1U 19 nti Rack Mount Network Security Server, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, lag luam wholesale, yuav, nqe, pheej yig, kev muag, ua nyob rau hauv Suav teb
