J1900 Fanless Industrial PC

Qauv

IBOX-101 Ntxiv

Xim

Nyiaj (Xim tuaj yeem kho tau)

Khoom siv

Zoo siab txhua yam txhuas, nto anodic oxidation

Txheej txheem

Onboard Intel Celeron J1900 (Quad core quad threading, 1.99GHz, TDP: 10W)

RAM

Txhawb 1*DDR3L 1333/1600MHz SODIMM RAM Qhov, Max turbo 8GB

BIOS

AMI UEFI BIOS

Zaub Chip

Kev koom ua ke Intel HD Graphics

Zaub Chaw nres nkoj

1*HDMI, 1*Built-in LVDS (Txhawb synchronous thiab asynchronous dual zaub)

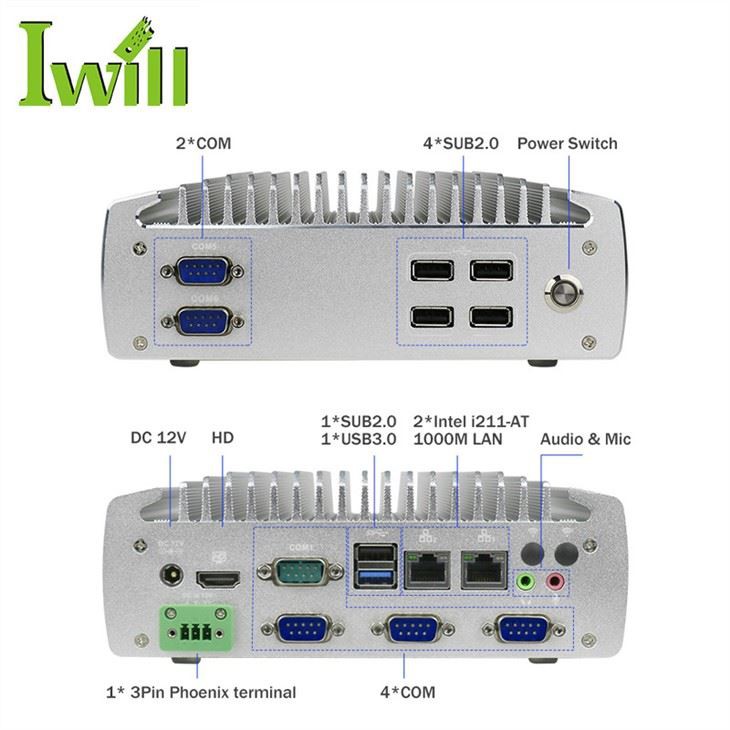

Pem hauv ntej I/O

4*USB2.0, 2*COM, 1*Hloov Hloov

Tsheb I/O

1*USB3.0, 1*USB2.0, 4*COM (COM1, COM2 RS232/485 Yeem), 1*3PIN Phoenix txuas

2*1000M LAN, 1*HDMI, 1*DC 12V Tswv Yim, 1*Mic, 1*Kab Tawm

Kev nthuav dav qhov

Txhawb 1*MINI PCIE Qhov (Txhawb MSATA)

Kev them nyiaj yug 1*MINI PCIE Qhov (WIFI/3G/4G Yeem Xaiv), Tso SIM SIM

Network

2*Intel i211-AT 1000M LAN

Cia

Txhawb 1*MSATA Qhov, 1*2.5" HDD

Cov tswv yim Voltage

Txhawb DC 12V Tswv Yim

Lwm Txoj Haujlwm

Pib lub zog thaum muaj hluav taws xob, Sijhawm khau raj, Tsim ntawm LAN, PXE khau raj, Watchdog (0 ～ 255 qib) (Cov qauv txheej txheem tsis' t teeb tsa cov haujlwm no)

Ua hauj lwm Temp

0 ℃ ～ +50 ℃ (Commercial HDD), -20 ℃ ～ + ℃ 60 ℃ (Muaj SSD), Huab cua saum npoo av

Ua Haujlwm Vaum

5% ～ 95% tsis-condensing

Daim ntawv pov thawj

CE, CCC, FCC Class A, ROHS

Qhov ntev

186 * 150 * 66mm (Tsis suav nrog cov kab zauv)

Net Nyhav

1.6kg (Tsis suav nrog cov kab zauv)

Daim ntawv thov

Muaj Automation, Kho Mob, Tsheb thauj mus los Logistics, Warehouse, Kev Kawm Hauv Hluav Taws Xob thiab lwm yam.
