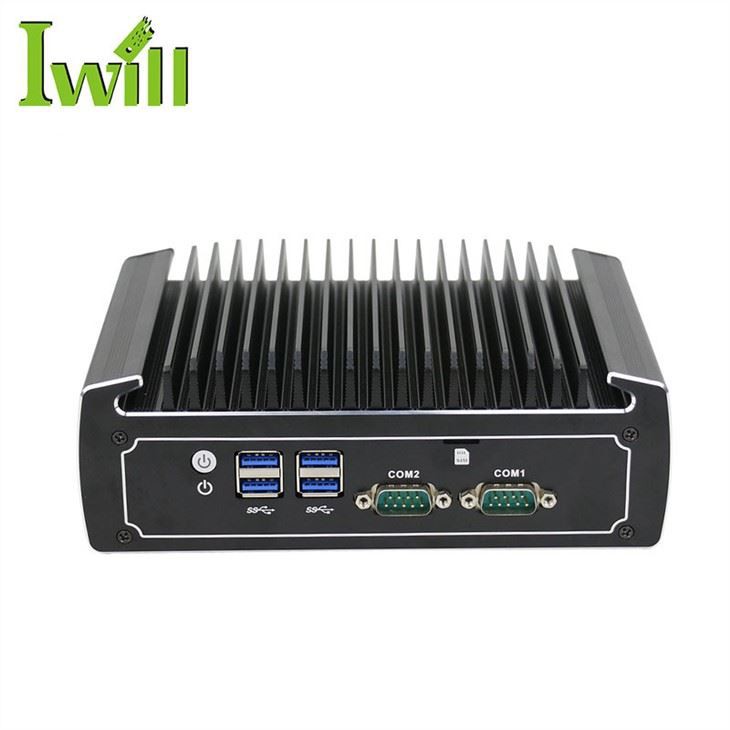

I5 8250U I7 8550U Mini PC

Qauv

Nano-N15

Xim

Dub (xim tuaj yeem kho tau)

Khoom siv

Zoo siab txhua yam txhuas

Txheej txheem

Intel Core i5 8250U (Quad core yim threads, 1.6G, Max. Turbo 3.4G, 6MB Cache)

Intel Core i7 8550U (Quad core yim threads, 1.8G, Max. Turbo 4.0G, 8MB Cache)

CPU Architecture

KabyLake-R

RAM

Txhawb 1*DDR4 2133/2400 SODIMM nco qhov, Max. Txhawb 16GB

BIOS

AMI EFI BIOS

Zaub Chip

Kev koom ua ke Intel HD Graphics 620

Zaub Chaw nres nkoj

1*DP, 1*HDMI

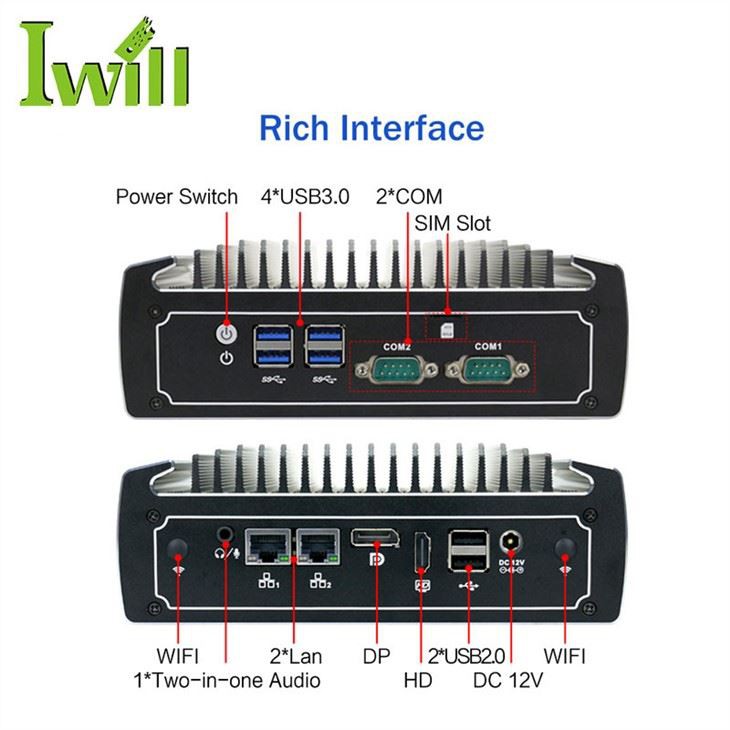

Pem hauv ntej I/O

2*COM (2*COM RS232/485 yog nyob ntawm yeem), 4*USB3.0, 1*Hwj chim Hloov, 1*SIM qhov

Tsheb I/O

1*DC-IN 12V, 2*USB2.0, 1*HDMI, 1*DP, 2*Intel 1000M LAN, 1*Suab (Txhawb Mic thiab Hais Lus tib lub sijhawm)

Kev nthuav dav qhov

Txhawb 1*M.2 2280 qhov (Txhawb M.2 PCIE X4 thiab M.2 SATA SSD)

Txhawb 1*MINI PCIE qhov (WIFI/3G/4G xaiv ib qho los ntawm peb), kos SIM qhov (socket)

Network

2*Intel i211-AT 10/100/1000M LAN

Cia

Txhawb 1*M.2 2280 qhov, 1*2.5" HDD

Hwj chim Mov

DC 12 V TAS

Ua hauj lwm Temp

0 ℃ ～ +40 ℃ (HDD), -20 ℃ ～ + 50 ℃ (SSD), huab cua saum npoo

Ua Haujlwm Vaum

5% ～ 95% tsis-condensing

Qhov ntev

186 * 126.5 * 66 hli

Net Nyhav

1.3kg ib

Daim ntawv thov

Chaw Ua Haujlwm Lag Luam, Kev Ua Yeeb Yaj Kiab HD, Kev Kawm Hauv Hluav Taws Xob, Kev Tsim Kho Kev Lag Luam thiab lwm yam.
