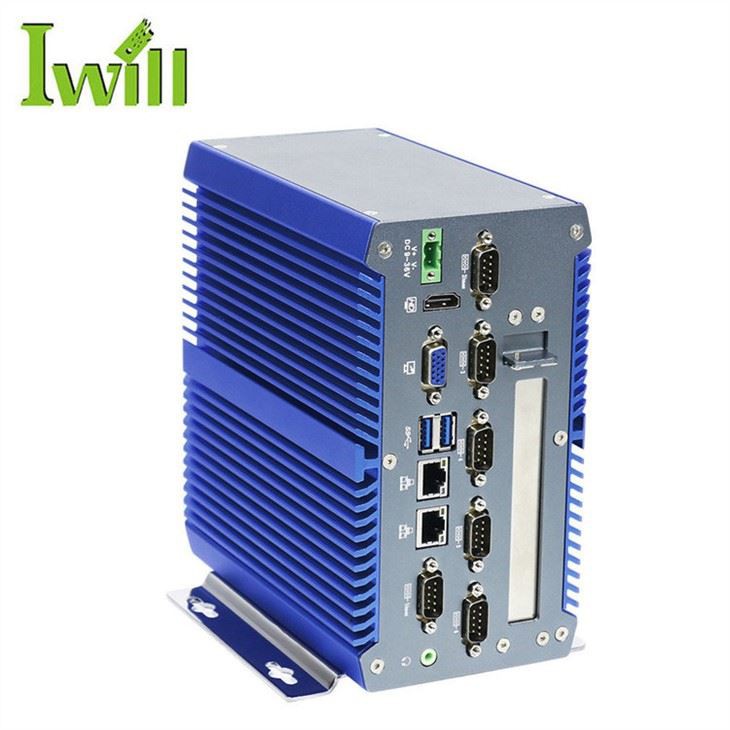

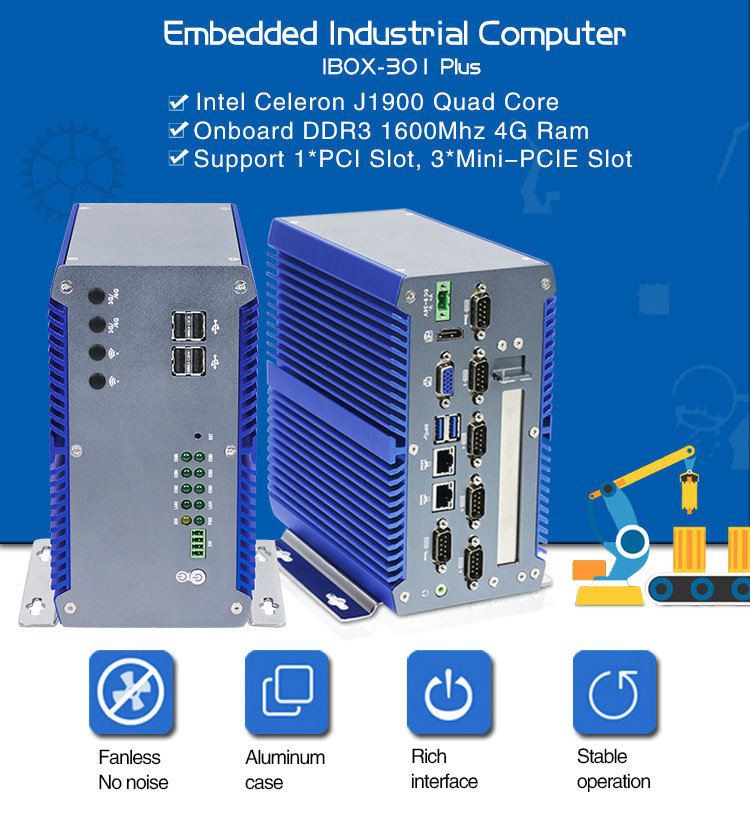

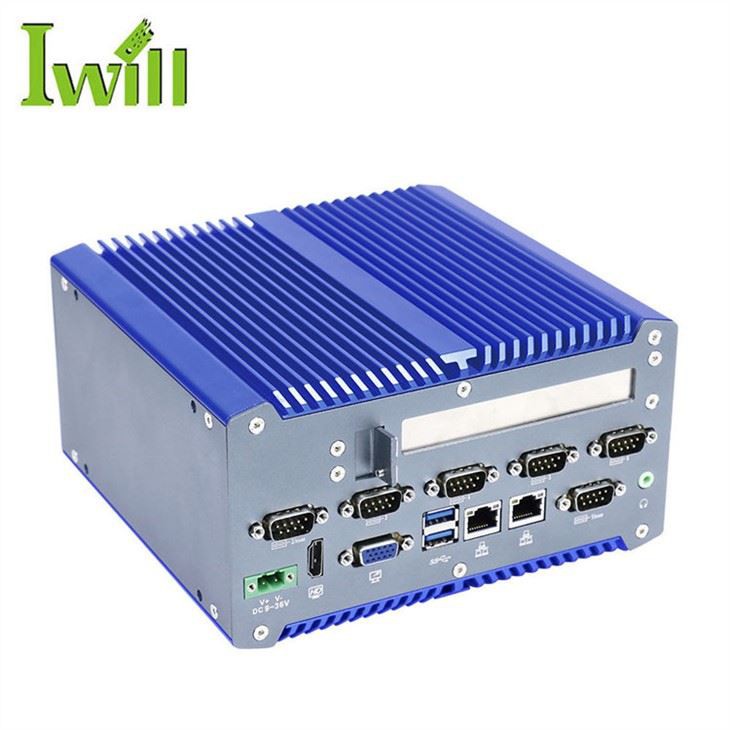

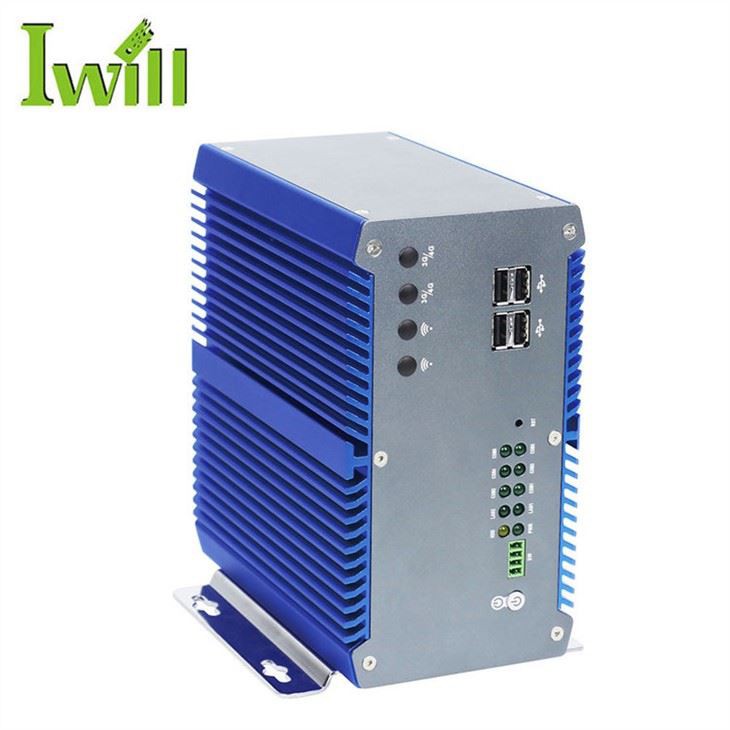

J1900 Muaj PC nrog PCI

Qauv

IBOX-301 Ntxiv

Xim

Xiav + Grey (Xim tuaj yeem kho tau)

Khoom siv

Zoo siab txhua yam txhuas, nto anodic oxidation

Txheej txheem

Onboard Intel Celeron J1900 (Quad core quad threading, 1.99G, TDP: 10W)

RAM

Onboard DDR3L 1333 4GB RAM

BIOS

AMI EFI BIOS

Zaub Chip

Kev koom ua ke Intel HD Graphics

Zaub Chaw nres nkoj

1*VGA, 1*HDMI

Pem hauv ntej I/O

4*USB2.0, 1*RESET, 10*LED, 1*4PIN Phoenix Connector, 1*Fais Fab Hloov

Tsheb I/O

1*USB3.0, 1*USB2.0, 6*COM (2*RS232/422/485 Yeem), 1*Hais Lus

2*Intel 1000M LAN, 1*VGA, 1*HDMI, 1*2PIN Phoenix Connector Lub Hwj Huam Lub Hwjchim

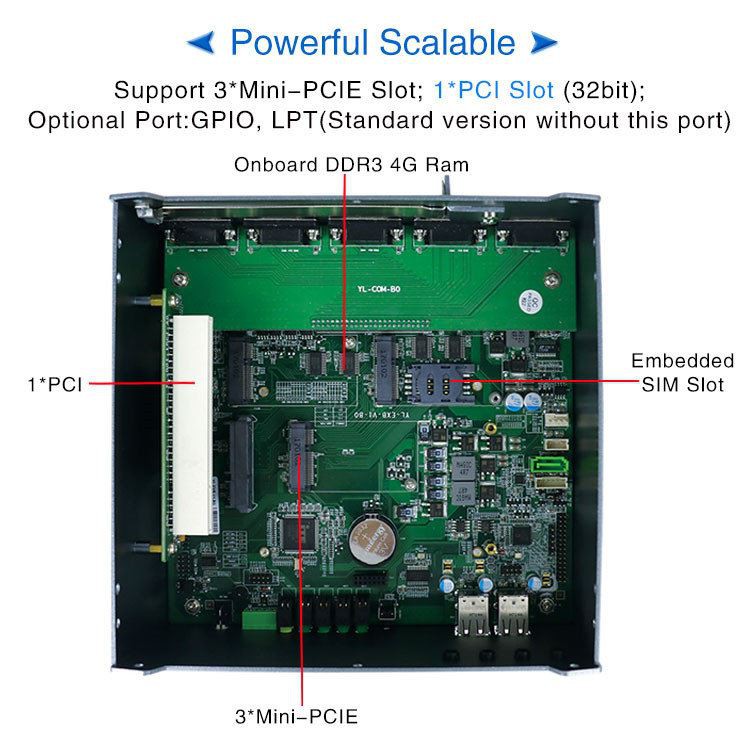

Kev nthuav dav qhov

Txhawb 1*PCI Qhov (32 ntsis), Max. Txhawb nqa qhov ntev ntawm daim npav nthuav dav: 168 hli

Txhawb 1*MINI PCIE Qhov (Txhawb WIFI/Bluetooth)

Kev them nyiaj yug 1*MINI PCIE Qhov (Txhawb WIFI/Bluetooth/3G/4G Yeem), Tso SIM qhov

Txhawb 1*MINI PCIE Qhov (Txhawb MSATA)

Yeem Ports: GPIO, MIC, LPT, 10*COM, PS/2, 2*USB2.0 (Cov qauv txheem tsis' tsis suav nrog cov chaw nres nkoj no)

Network

2*Intel 82583V/i211-AT 10/100/1000M LAN

Cia

Txhawb 1*MSATA Qhov, 1*2.5" HDD

Cov tswv yim Voltage

Txhawb DC 9 ～ 36V dav qhov hluav taws xob nkag, Txhawb tus ncej zoo thiab tsis zoo electrode txuas kev tiv thaiv thim rov qab

Lwm Txoj Haujlwm

Pib lub zog thaum muaj hluav taws xob, Sijhawm khau raj, Tsim ntawm LAN, PXE khau raj, Watchdog (0 ～ 255 qib) (Cov qauv txheej txheem tsis' t teeb tsa cov haujlwm no)

Ua hauj lwm Temp

0 ℃ ～ +50 ℃ (Commercial HDD), -20 ℃ ～ + ℃ 60 ℃ (Muaj SSD), Huab cua saum npoo av

Ua Haujlwm Vaum

5% ～ 95% tsis-condensing

Daim ntawv pov thawj

CE, CCC, FCC Class A, ROHS

Qhov ntev

185 * 175 * 100 mm (Tsis suav nrog cov kab zauv)

Net Nyhav

2.5 kg (Tsis suav nrog cov kab zauv)

Daim ntawv thov

Kev lag luam automation, kev kho mob, kev thauj mus los logistics, nrhiav cov ntaub ntawv, tswj kev txav chaw, thiab lwm yam.
