Rugged Fanless Computer
video
Rugged Fanless Computer

Rugged Fanless Computer

Nta:
◇ Txhua tus qauv txhuas, tsis muaj kiv cua tsim;
◇ Txhawb Intel Celeron J1900 quad core processor;
◇ Onboard DDR3 4GB RAM;
◇ 1 * MSATA Qhov, 1 * 2.5" HDD;
◇ Txhawb 3 * Mini PCIE Slot;
◇ 10 * COM (2 * COM RS232 lossis 422 lossis 485 Xaiv);
◇ Kev them nyiaj yug DC 9-36V dav voltage Input, Txhawb nqa zoo ncej thiab tsis zoo electrode txuas rov qab tiv thaiv;
◇ Txhawb OS:
Xa kev nug
Product Details ofRugged Fanless Computer

702 rugged industrial computer nta J1900 quad core processor, dual Gigabit Ethernet ports, rau RS -232 serial chaw nres nkoj, ib qho 2PIN Fais Fab Phoenix Connector, ib qho 4Pin Phoenix Connector.Support DC 9-36V dav voltage nkag, Kev them nyiaj yug Cov ncej zoo thiab tsis zoo electrode txuas rov qab tiv thaiv.Windows7,Windows8,Windows10,Linux.

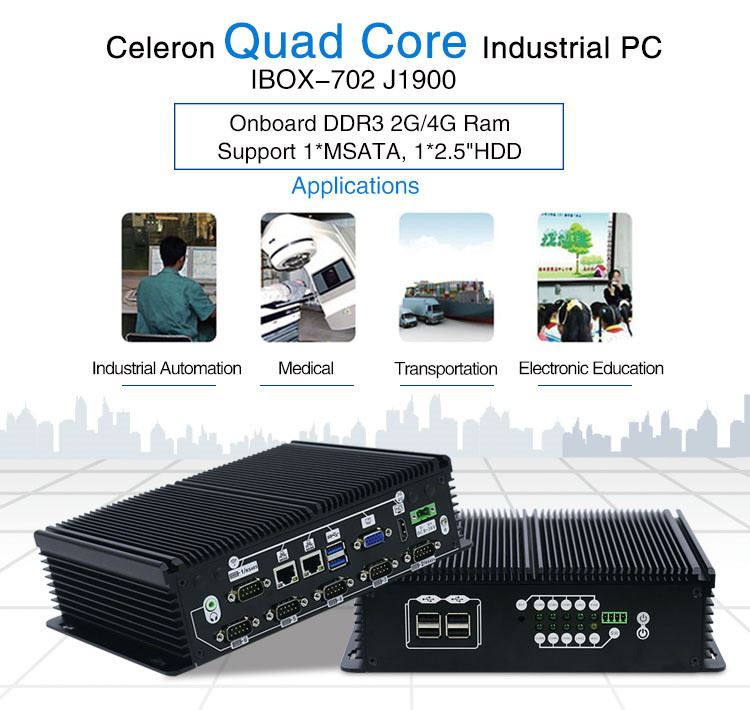

embedded computer_01


Specification

Qauv

IBOX-702

Xim

Dub (xim tuaj yeem kho tau)

Khoom siv

High-zoo tag nrho txhuas, nto anodic oxidation

Processor

Onboard Intel Celeron J1900 (Quad core quad threading, 1.99G, TDP: 10W)

RAM

Onboard DDR3L 1333 4GB RAM

BIOS

AMI UEFI BIOS

Zaub Chip

Integrated Intel HD Graphics

Pem hauv ntej chaw nres nkoj

1 * VGA, 1 * HDMI

Rov qab I/O

4 * USB2.0, 1 * RESET, 10 * LED, 1 * 4Pin Phoenix Connector, 1 * Fais Fab

Rov qab I/O

1*USB3.0, 1*USB2.0, 6*COM (COM1, COM2 RS232/422/485 Yeem), 1 * Hais

2 * Intel 1000M LAN, 1 * VGA, 1 * HDMI, 1 * 2PIN Power Supply Phoenix Connector

Expansion Qhov

Txhawb 1 * MINI PCIE Slot (WIFI / Bluetooth yeem)

Txhawb 1 * MINI PCIE Slot (WIFI / Bluetooth / 3G / 4G yeem), Embedded SIM Slot

Txhawb 1 * MINI PCIE Slot (Support MSATA)

Optional Ports: GPIO, MIC, LPT, 10*COM, PS/2, 2*USB2.0 (Standard version tsis muaj cov ports)

Network

2 * Intel 82583V/i211-AT 10/100/1000M LAN

Cia

Txhawb 1 * MSATA Qhov, 1 * 2.5 "HDD

Input voltage

Txhawb DC 9-36V dav voltage Input, txhawb cov ncej zoo thiab tsis zoo electrode txuas rov qab tiv thaiv

Dimension

IBOX -702 A (1 * COM): 234 * 175 * 50mm

IBOX -702 B (6 * COM): 234 * 175 * 64.5mm

IBOX -702 C (10 * COM): 234 * 175 * 64.5mm

Net nyhav

2. {1}} kg


702 Rugged Fanless Computer, Cov ntaub ntawv zoo aluminium nrog exquisitecooling teech, tshav kub dissipation ntxiv upgrade.Fanless tsim rau plua plav, shockproof thiab tsis muaj suab nrov thaum ua haujlwm, haum rau kev lag luam.


Lub 702 Rugged Fanless Computer, Txhawb WiFi module thiab 3G / 4G module (peb xaiv ib qho) Tsiv txhua lub sijhawm, tsis xav tau kev sib txuas xov tooj kom tsis txhob muaj teeb meem thaiv.

Rugged Fanless ComputerVGA ntxiv rau HDMI Full HD 1080P Dual DisplayHiger duab zoo thiab tso saib muaj peev xwm.


[Ntawm ib pliag, paub leej twg tsis ua haujlwm]

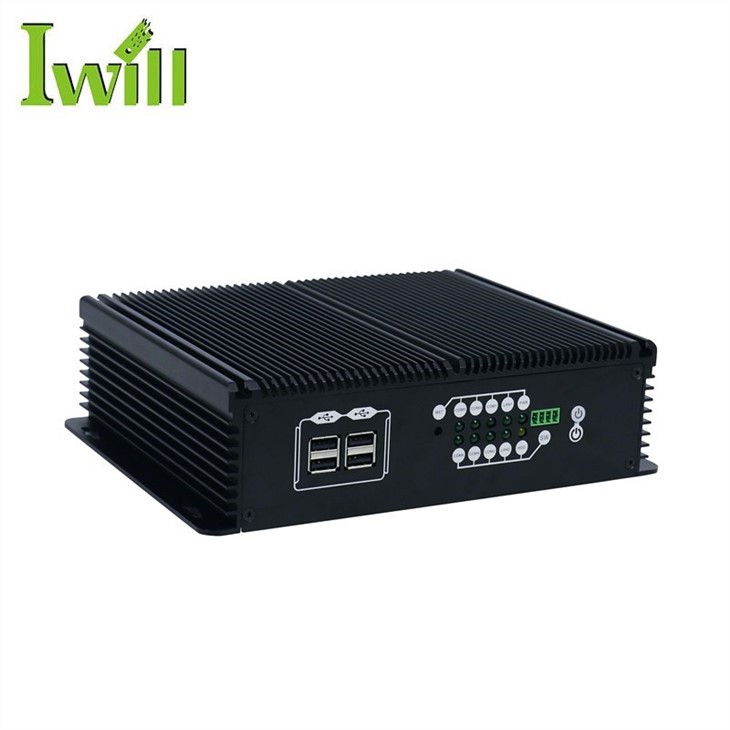

702 Rugged Fanless Computer Nrog rau sab nraud 10 LED teeb nyob rau pem hauv ntej vaj huam sib luag, cia li pom, koj tuaj yeem paub tom qab l / O interface khiav raws li txoj cai!
