PCI Slot Computer
◇ Intel Core i3 6100T, i5 6500T, i7 6700T CPU
◇2* DDR4 Max 32GB nco qhov
◇6 * COM (COM1,2 yeem RS232/422/485)
◇1 * VGA, 1 * HDMI, 1 * DP
◇1 * PCIE X16 qhov ntxiv rau 1 * PCIE X4 qhov ntxiv rau 2 * PCI qhov
◇ OS:
Xa kev nug
Product Details ofPCI Slot Computer

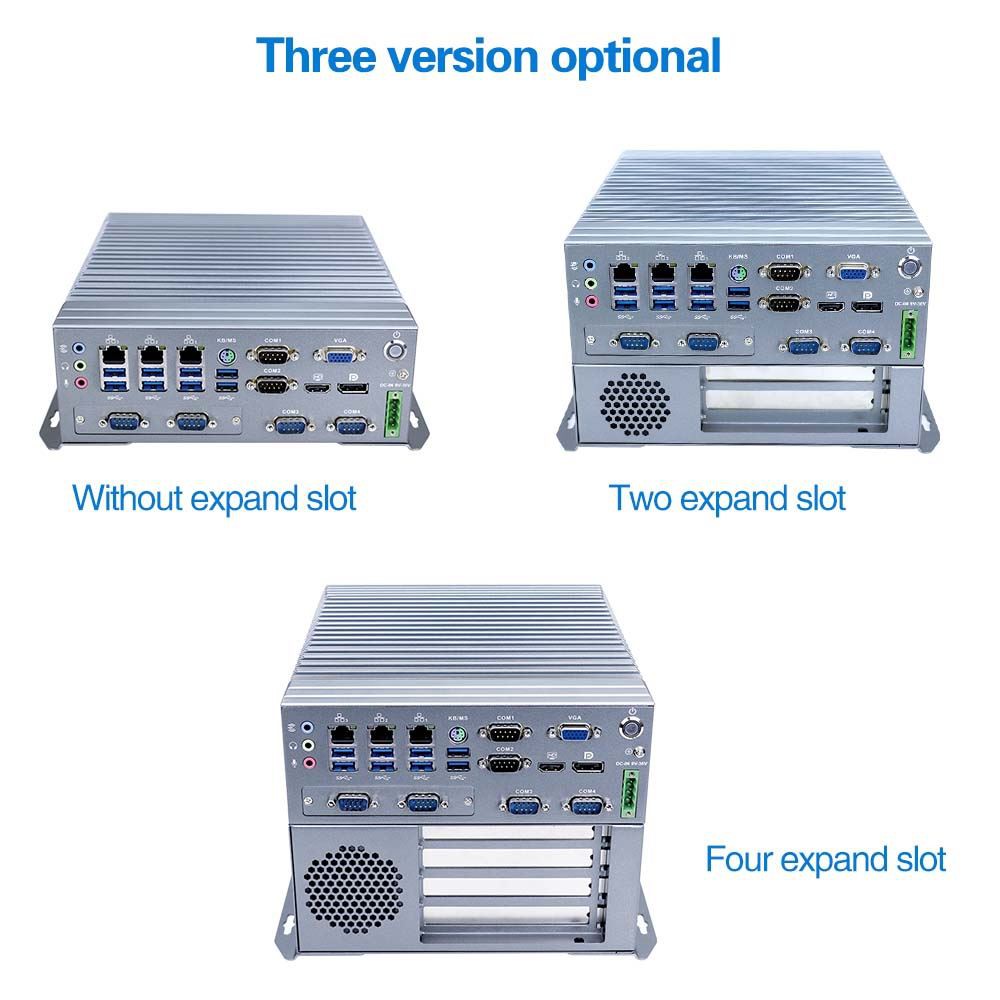

Iwill PCI/PCIe Expansion Slots Industrial PC Ntxiv I/O Boards los Customize Koj Industrial PC 708 qauv yog expansion slot serials industrial pc, Xaiv Tsis muaj qhov nthuav dav, 2 nthuav qhov, 4 nthuav qhov, Lub cpu yog i3 6100T ,i5 6500T,i7 6700T Xaiv ,2* DDR4 lub cim xeeb qhov, Max 32GB, Kev ua haujlwm ntawm Intel® Core™ processors thiab loj hauv zos cia cia Mini PCs ua haujlwm nyuaj thaum khaws cov profile qis .
Nws tau tsim raws li Txhua tus qauv aluminium alloy, Titanium grey Xim chassis suav kev daws teeb meem rau kev lag luam, KIOSK, ntse Hoobkas automation, muaj xws li system thiab qhov chaw txwv.
| Qauv | IBOX-708 |
| Processor | Intel Core i3 6100T (Dual core plaub threads, 3.2 GHz) |
| Intel Core i5 6500T (Quad core plaub threads, 2.5 GHz, Max turbo 3.1 GHz) | |
| Intel Core i7 6700T (Quad core yim threads, 2.8 GHz, Max turbo 3.6 GHz) | |
| Nco | 2 * DDR4 Max 32GB Ram qhov |
| Cia | 1 * MSATA , 2 * 2.5 "SATA (Kev them nyiaj yug RAID0/1) |
| Network | 2*Intel i211-AT,1*Intel i219-LM 1000M LAN (Txhawb Vpro txuj ci) |
| Expansion Qhov | 1 * PCIE X16 qhov ntxiv rau 1 * PCIE X4 qhov ntxiv rau 2 * PCI qhov, Extension Cards: txhawb 210 hli |
| Kev xaiv nthuav dav: 1 * PCIE X16 qhov ntxiv rau 1 * PCIE X4 qhov | |

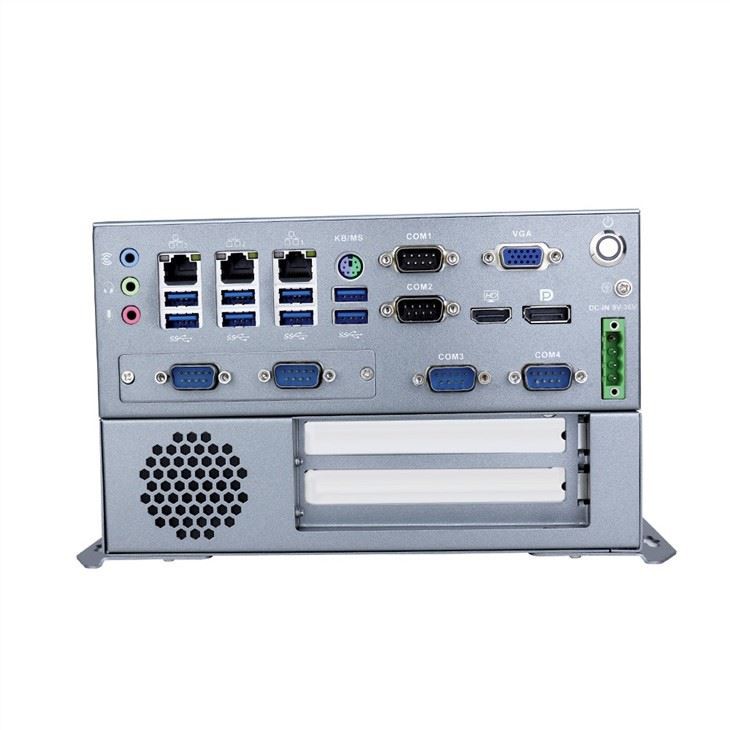

| I/O | 8 * USB3.0 ,6 * COM (COM1,2 yeem RS232/422/485), 2 * Intel 1000M LAN |
| 1 * VGA, 1 * HD-MI, 1 * DP | |
| 1 * Fais fab Hloov, 1 * Mic, 2 * Hais lus chaw nres nkoj, 1 * DC Fais fab phoenix davhlau ya nyob twg | |
| Kev nthuav dav | 1 * MINI PCIE qhov (Txhawb WIFI / 3G / 4G), Embedded SIM Slot |
| 1 * MINI PCIE qhov (Txhawb MSATA / 3G / 4G), Embedded SIM Slot | |
| Ua haujlwm Temp | 0 degree - ntxiv rau 50 degree, -20 degree - ntxiv rau 60 degree |
Ntsiab nta
Intel® core® i3 i5 i7 processor
1xHD-MI, 1xVGA, 1xDP rau peb cov zaub
2*Intel i211-AT,1*Intel i219-LM 1000M LAN (Txhawb Vpro txuj ci)
Expansion Qhov Chaw:
1 * PCIE X16 qhov ntxiv rau 1 * PCIE X4 qhov ntxiv rau 2 * PCI qhov, Extension Cards: txhawb 210 hli
Kev xaiv nthuav dav: 1 * PCIE X16 qhov ntxiv rau 1 * PCIE X4 qhov
Ua kom sov dissipation
Cov ntaub ntawv zoo txhuas rau cov cua sov sai sai.Fanless tsim rau plua plav, shockproof thiab tsis muaj suab nrov.Fanless embedded system thiab tsawg zog noj tsim, Ib tug muaj PC yog ib lub computer npaj rau industrial lub hom phiaj nrog ib tug qauv ntawm ib tug nettop thiab ib tug neeg rau zaub mov khib.
Vim li cas thiaj xaiv Iwill?
1.Peb tuaj yeem kho qhov kev daws teeb meem kom tau raws li koj qhov kev xav tau OEM & ODM kev pabcuam.
2.15 ntxiv rau Xyoo R & D thiab Kev Tsim Khoom
3. 16 Xyoo Export Experiences
4. CE, FCC, ROHS, ISO9001, CCC, TUV, SGS Certification Gurantee
5. 3 Xyoo Warranty
708 industrial faness system tau tsim thiab tsim kom tau raws li cov neeg siv khoom lag luam xav tau kom muaj zog tshaj plaws, kev ntseeg tau thiab muaj nyob rau lub sijhawm ntev.
Zoo siab txais tos los tham txog Multi lan Expansion slot Fanless Industrial Computer, Xav paub ntxiv,Jessie tuaj yeem muab kev pabcuam ntxiv rau koj
