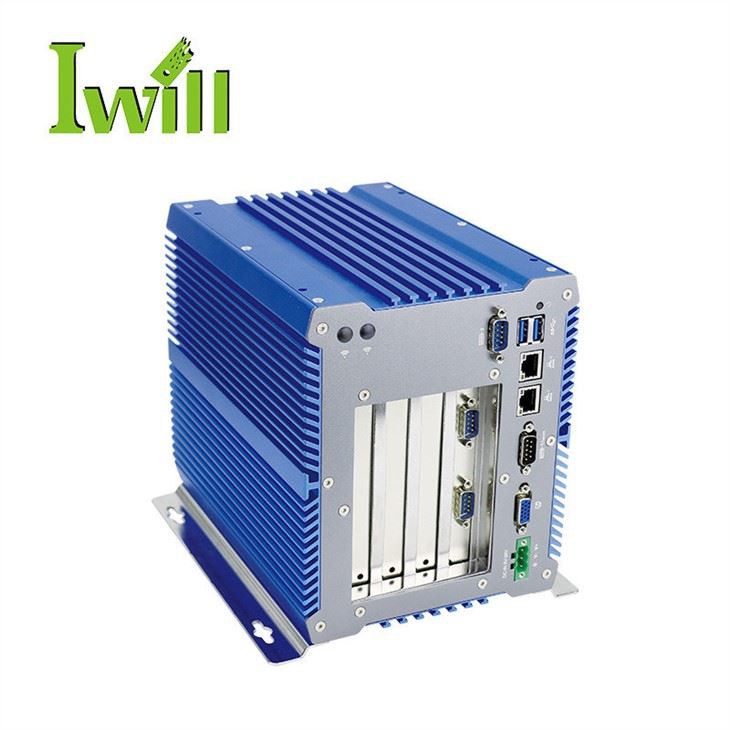

I5 I7 Muaj PC nrog 3 PCI
◇ Txhua tus qauv txhuas, tsis muaj kiv cua tsim;
Board Onboard Intel Celeron 3865U, 7th Generation Core i5 i7;
Max li Txhawb DDR4 1866 lossis 2133 16G RAM;
◇ Txhawb 1*MSATA Qhov, 1*2.5 "HDD;
◇ Txhawb 1*PCIE X4 Qhov + 3*PCI Qhov;
◇ Txhawb 6*COM (2*COM RS232 lossis 422 lossis 485 Yeem);
◇ Txhawb DC 9 ～ 36V dav qhov hluav taws xob tawm tswv yim, Txhawb tus ncej zoo thiab cov hluav taws xob tsis zoo txuas tiv thaiv kev thim rov qab;
◇ Txhawb OS:
Xa kev nug
Product Details ofI5 I7 Muaj PC nrog 3 PCI

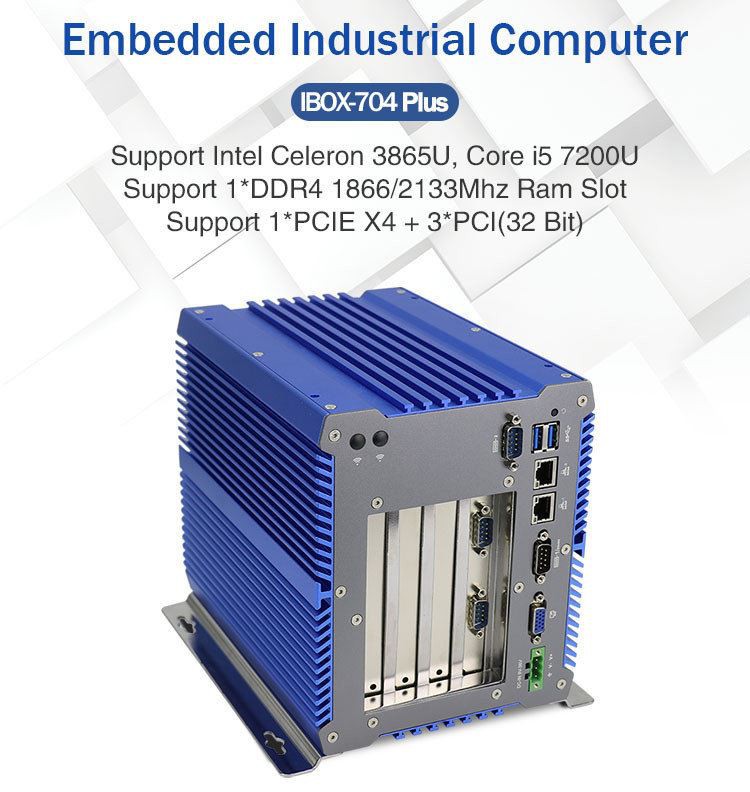

Rugged Fanless Industrial Computer I5 7200U IPC
Kev qhia tshwj xeeb | |
Qauv | IBOX-704 Ntxiv |
Xim | Xiav + Grey (Xim tuaj yeem kho tau) |
Khoom siv | Zoo siab txhua yam txhuas, nto anodic oxidation |
Txheej txheem | Intel Celeron 3865U (Dual core dual threads, 2MB thib peb qib cache, 1.8 GHz) |
Intel Core i5 7200U (Dual core quad threads, 3MB qib thib peb cache, 2.5GHz, Max turbo 3.1GHz) | |
Intel Core i7 7500U (Dual core quad threads, 4MB qib thib peb cache, 2.7GHz, Max turbo 3.5GHz) | |
RAM | Txhawb 1*DDR4 1866/2133 SODIMM RAM Qhov, Max. Txhawb 16GB |
BIOS | AMI EFI BIOS |
Zaub Chip | Kev koom ua ke Intel HD Graphics 610/620 |
Zaub Chaw nres nkoj | 1*VGA, 1*HDMI Built-in Pin (Txhawb synchronous thiab asynchronous dual zaub) |
Pem hauv ntej I/O | 2*USB3.0, 2*USB2.0, 1*HDD LED, 1*Hwj chim Hloov, 1*MIC, 1*Hais Lus |
1*Phoenix Connector (tuaj yeem nthuav tawm qhov hloov pauv) | |
Tsheb I/O | 2*USB3.0, 2*Intel 1000M LAN, 1*VGA, 1*3Pin Lub Hwj Huam Muab Phoenix Connector |
1*Huv COMS khawm, Txuj 4*COM (6*COM Yeem, COM1, COM2 RS232/422/485 Yeem) | |
Nthuav Tawm Chaw Nres Nkoj | Kev them nyiaj yug 1*MINI PCIE Qhov (WIFI/3G/4G Yeem Xaiv), Tso SIM SIM |
Txhawb 1*MINI PCIE Qhov (Txhawb MSATA) | |
Yeem Ports: GPIO, Suab, HDMI, 2*COM (Cov qauv txheem tsis' tsis suav nrog cov chaw nres nkoj no) | |
Kev nthuav dav qhov | 1*PCIE X4 + 3*PCI (32 ntsis), Ua-hauv 1*USB2.0, Max. Txhawb nqa qhov ntev ntawm daim npav nthuav dav: 196 hli |
Network | 2*Intel i211-AT 10/100/1000M LAN |
Cia | Txhawb 1MSATA Qhov, 1*2.5" HDD |
Cov tswv yim Voltage | DC 9 ～ 36V dav qhov hluav taws xob tawm tswv yim, Txhawb tus ncej zoo thiab tsis zoo electrode txuas kev tiv thaiv thim rov qab |
Lwm Txoj Haujlwm | Pib lub zog thaum muaj hluav taws xob, Sijhawm khau raj, Tsim ntawm LAN, PXE khau raj, Watchdog (0 ～ 255 qib) (Cov qauv txheej txheem tsis' t teeb tsa cov haujlwm no) |
Ua hauj lwm Temp | 0 ℃ ～ +50 ℃ (Commercial HDD), -20 ℃ ～ + ℃ 60 ℃ (Muaj SSD), Huab cua saum npoo av |
Ua Haujlwm Vaum | 5% ～ 95% tsis-condensing |
Daim ntawv pov thawj | CE, CCC, FCC Class A, ROHS |
Qhov ntev | 215 * 185 * 157 mm (Tsis suav nrog cov kab zauv) |
Net Nyhav | 4.0 kg (Tsis suav nrog cov kab zauv) |
Daim ntawv thov | Muaj Automation, Kho Mob, Tsheb thauj mus los Logistics, Warehouse, Tshuab pom kev, thiab lwm yam. |
