4U Rack Mount I3 I5 I7 Network Server
◇ Intel H110 chipset, txhawb Win XP OS
◇2xDDR4 DIMM, Max: 32G
◇ Txhawb 1xMSATA SSD, 3x2.5 "/ 3.5" HDD
◇ Txhawb 6 * COM, 2 * COM RS232/485 yeem
◇ 1x PCIE X16 plus 1x PCIE X1 plus 1x PCIE X4 plus 4xPCI
◇ OS:
Xa kev nug
Product Details of4U Rack Mount I3 I5 I7 Network Server
ZPC-620 yog tus qauv 4U Rack Mount firewall nerwork server, Txais qib siab qib siab galvanized steel phaj qauv, Onboard Intel H110 chipset, Intel 6th / 7th Generation Core i3 / i5 / i7 LGA1151processor; nruab nrog 2 * DDR4 Max 32G ram, 1 * MSATA SSD, 3 * 2.5 "/ 3.5" HDD, 6 * COM, 2 * COM RS232 / 485 yeem, nthuav qhov nrog 1 * PCI-E X16,1 * PCI-E X1,1 * PCI -E X4,4*PCI.Applied inApplied in Network server, KIOSK, Advertising Machine, Self-service Terminal, Electronic Whiteboard, ATM, POS/Retail, Networking etc.
| Qauv | ZPC-620 |
| Xim | Dawb |
| Processor | Intel Core i 3 6100 (dual core, 4 threads, 3.7 GHz) |
| Intel Core i5 6500 (quad core, 4 threads, 3.2 GHz, Turbo boost 3.6 GHz) | |
| Intel Core i {{0}} (quad core, 8 threads, 3.4 GHz, Turbo boost 4.0 GHz) | |
| CPU Structure | Intel H110 |
| RAM | 2*DDR4 2133/2400 DIMM, Max: 32GB |
| Cia | 1 * MSATA SSD, 3 * 2.5 "/ 3.5" HDD |
| Expansion Qhov | 1 * PCIE X16 ntxiv 1 * PCIE X1 ntxiv rau 1 * PCIE X4 ntxiv 4 * PCI |
| 1 * MINI PCIE (Txhawb MSATA) | |
| GPIO, LPT, 1*USB2.0 yeem | |
| Lan | 1*Intel i211-AT, 1*Intel i219-LM |
| Fais fab mov | AC 180-264 V (50-60 Hz), 300W Rated zog |

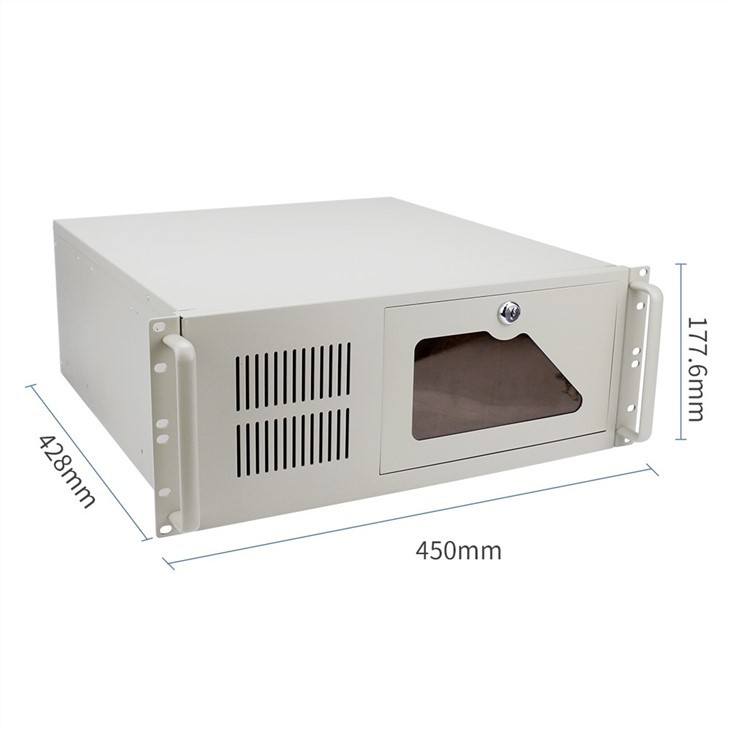

| Dimension | 428 * 450 * 177.6 hli |
| Qhov hnyav | 12.5 kg (Barebone) |
4U dav npaum li cas?
Hauv A/V, "ib nrab-rack" feem ntau piav qhia cov khoom siv uas haum rau qee qhov ntawm cov khib nyiab, tab sis tsuas yog nyob ib nrab ntawm qhov dav ntawm 19-inch khib (9.5 hauv lossis 241 hli).
...
Rack unit, U lossis RU (1U, 2U, 3U, 4U, 5U, 6U thiab 7U)
Chav tsev Dimension (W x H x D)
2U 19" x 3.5" x 17.7" 19" x 3.5" x 20.9" 19" x 3.5" x 24"
3U 17.1" x 5.1" x 25.5"
4U 19" x 7" x 17.8" 19" x 7" x 26.4"
4U khib mount neeg rau zaub mov muaj computer nrog desktop CPU intel i3 i5 i7 txhawb 6 3.5 nti HDD thiab Win XP, Yog hais tias koj xav nyob rau hauv no ntxiv info, txais tos mus tham nrogJessie
Email:jessie@iwilltech.cn
Skype:iwilljessie ua
