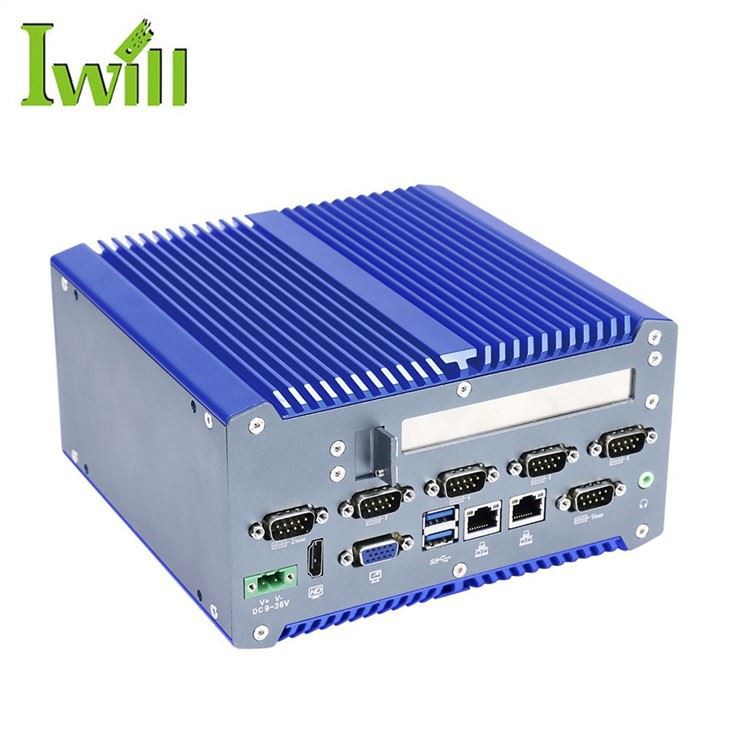

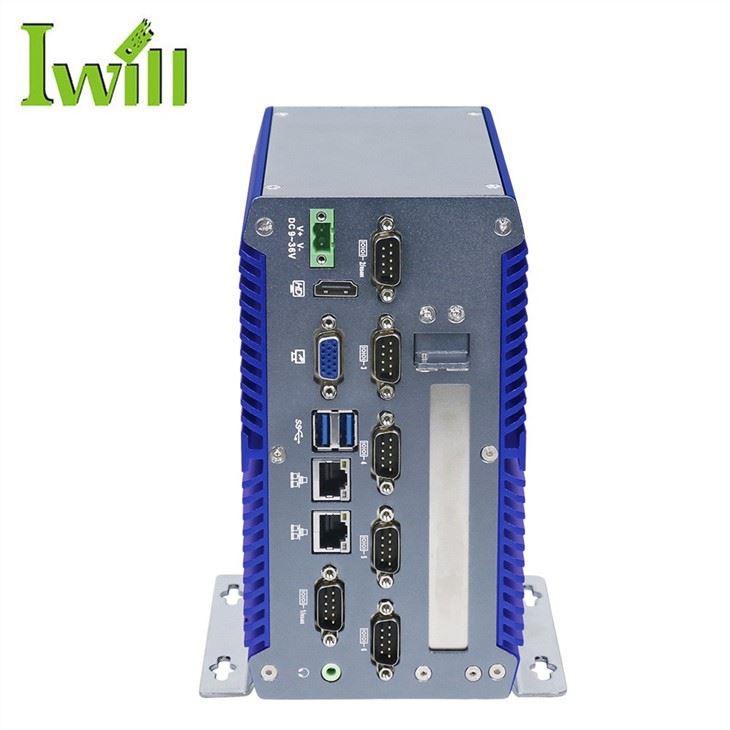

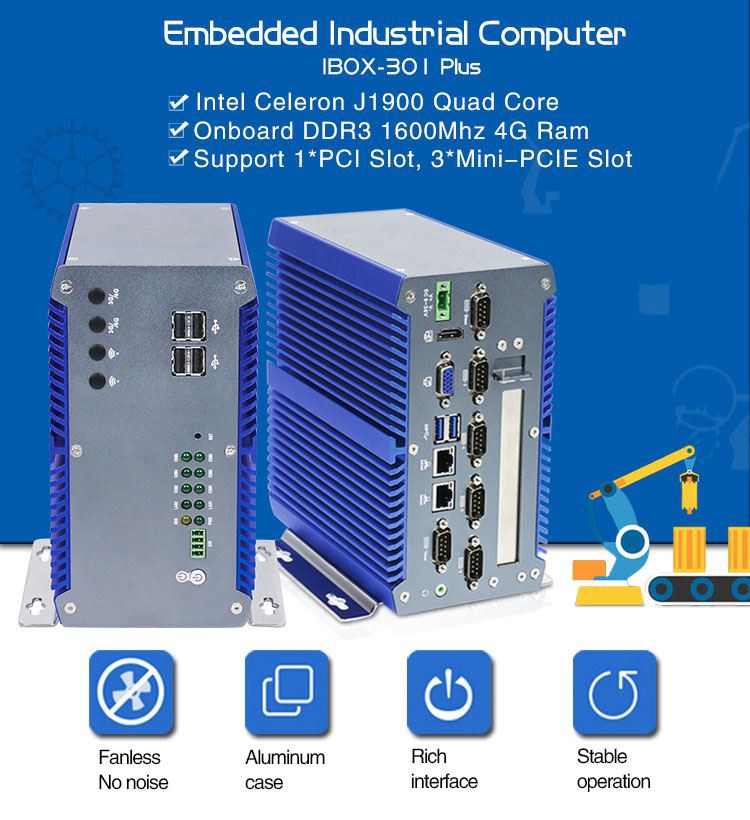

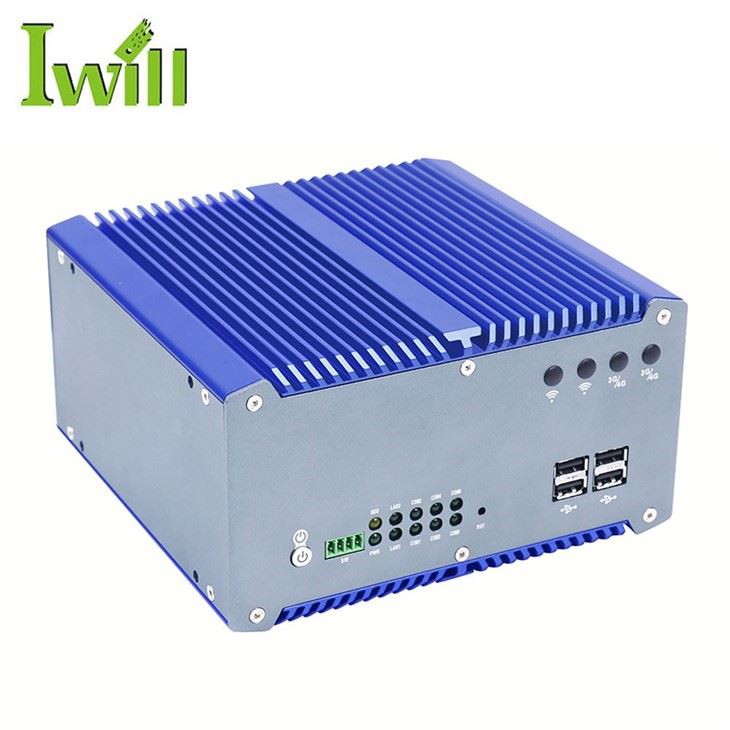

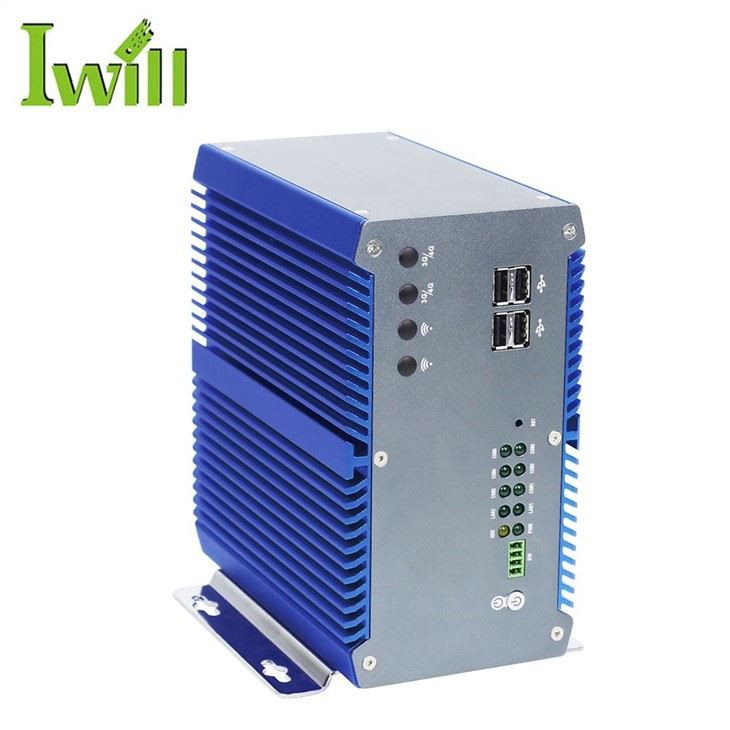

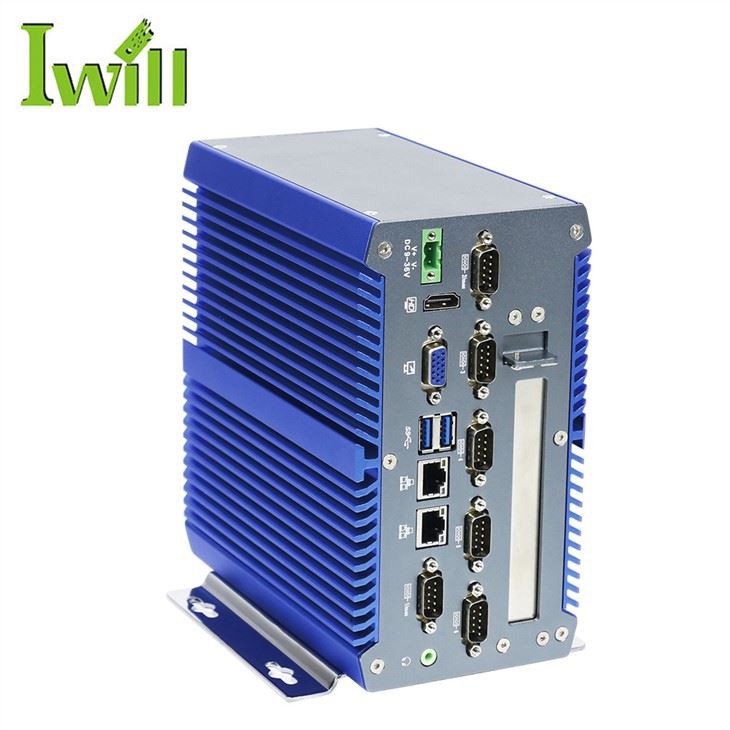

IBOX{{0}} Ntxiv rau yog qhov tsis muaj kiv cua Txhua qhov chaw tsim hluav taws xob hauv lub computer nrog 1x32 ntsis PCI expansion qhov. Qhov expansion qhov Max. Txhawb nqa qhov ntev ntawm daim npav nthuav dav: 168 hli. Tsim los ntawm onboard Intel® Celeron® quad core processor J1900 2.0GHz qis zog 10W. tuaj yeem ua tau raws li feem ntau cov ntawv thov kev lag luam.

Ib qho yooj yim tsim ntawm Onboard DDR3L 1333 4GB RAM, nws cov chassis compact tuaj yeem ua raws li 1 * MSATA Slot, 1 * 2.5 "HDD hard drives los nthuav koj lub peev xwm khaws cia.thiab ua kom qhov chaw ruaj khov thiab chaw cia siab tshaj plaws. txhawb 1 * VGA, 1 * HDMI HD Dual zaub neeg uas ua ntawv thiab dual gigabit LAN ports tsim, 10xLED yooj yim los kuaj xyuas kev ua haujlwm ntawm txhua qhov sib txuas 9-36V dav voltage Input, Txhawb nqa ncej zoo thiab tsis zoo electrode txuas rov qab tiv thaiv.

Ua haujlwm av noo

J1900 Quad Core Embedded Dual Lan Mini Pcs' Specification
Specification	IBOX-301 Ntxiv
Xim	Xiav + Grey
Processor	Intel Celeron J1900 (Quad core quad threading, 1.99G, TDP: 10W)
RAM	Onboard DDR3L 1333 4GB RAM
Cia	1 * MSATA qhov, 1 * 2.5 "HDD
Zaub Chip	2 * Intel 82583V/i211-AT 10/100/1000M LAN
Expansion Qhov	1 * PCI qhov (32 ntsis)
	1 * MINI PCIE Slot (Kev them nyiaj yug WIFI / Bluetooth)
	1 * MINI PCIE Slot (Txhawb WIFI / Bluetooth / 3G / 4G yeem), Embedded SIM qhov
	1 * MINI PCIE Slot (Txhawb MSATA)
Input voltage	DC 9-36V dav voltage Input, Txhawb nqa ncej zoo thiab tsis zoo electrode txuas rov qab tiv thaiv
Ua haujlwm Temp	0 degree - +50 degree (Commercial HDD), -20 degree - +60 degree
5% - 95% tsis-condensing
Dimension	185 * 175 * 100 hli 【Tsis suav nrog cov brackets】
Net nyhav	2.5 kg 【Tsis suav nrog cov brackets】

2(1)

Kawm paub ntxiv txog IBOX-301Plus Model, Fanless Industrial Computer J1900 Quad Core Embedded Dual Lan Mini Pc Nrog Pci Express Slot txais tos sab laj
