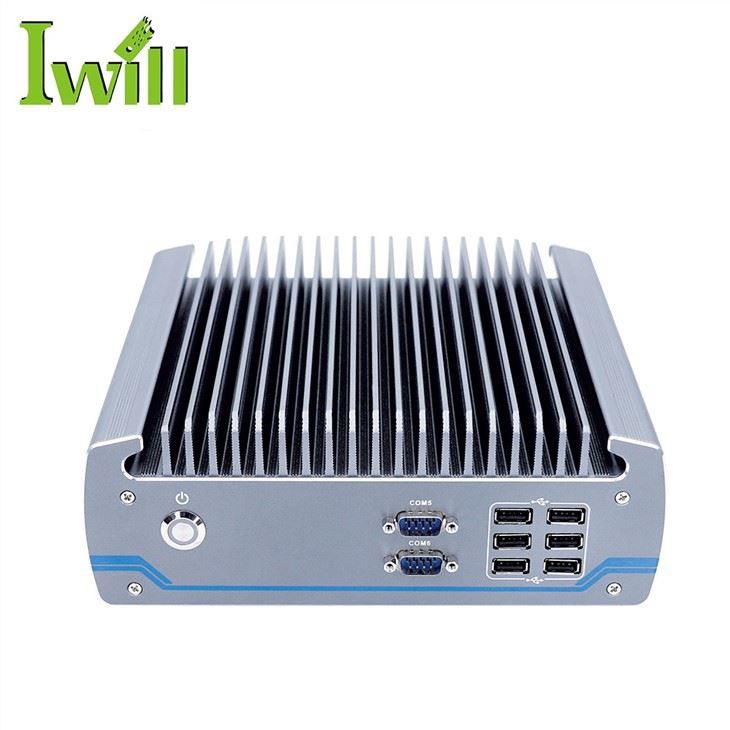

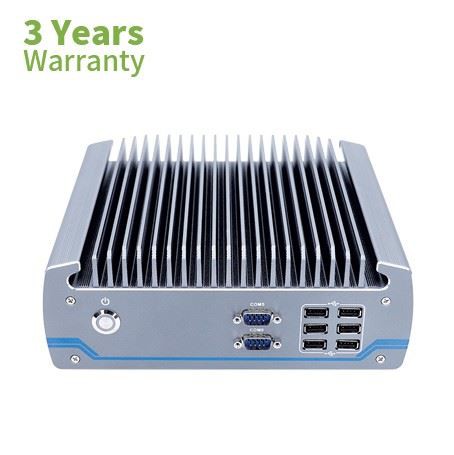

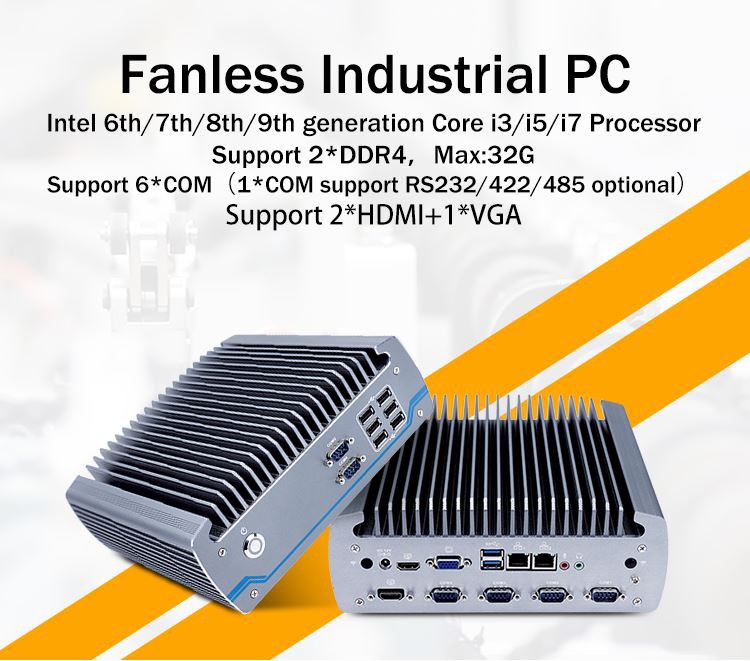

Intel Core I3 I5 I7 Fanless BOX PC
◇ 2*DDR4 2133/2400 SODIMM qhov, Max: 32GB
◇ 1 * M 2 2280 qhov, 1 * 2.5" HDD (2 * 2.5" HDD Optional)
◇ 1 * VGA, 2 * HDMI Dual zaub nrog Intel HD Graphics 630
◇ Expansion Port: GPIO (4 Input * 4 Output)
◇ OS:
Xa kev nug
Product Details ofIntel Core I3 I5 I7 Fanless BOX PC
Lub IBOX-605 yog ib lub tshuab tsis muaj kiv cua nrog Intel® 6/7/8/9 tiam Core™ i3/i5/i7 Processor, nruab nrog 2 * DDR4 2133/2400 ram qhov, Onboard Intel H310 chipset, Powered los ntawm Intel HD Graphics 630 Zaub Chip los txhim kho qhov kev ua tau zoo ntawm qhov pom kev pom.1xVGA, Dual HDMI, coj koj ib qho kev lom zem video browsing kev, kev siv hauv tshuab tsis pom kev, ntug xam, Muaj Automation, Kev Kho Mob, Cov Ntaub Ntawv Tau Txais, Motion Control , Daim ntawv thov tsheb thiab lwm yam.
| Qauv | IBOX-605 |
| Xim & Khoom siv | Titanium grey & txhuas txhuas |
| Processor | Intel Core i3 8100T (quad core, 4 threads, 3.1 GHz) |
| Intel Core i5 8500T (6 core, 6 threads, 2.1 GHz, Qhov siab tshaj plaws Turbo 3.5 GHz) | |
| Intel Core i{{0}}T (6 core, 12 threads, 2.4 GHz, Qhov siab tshaj plaws Turbo 4.0 GHz) | |
| Chip | Intel H310 |
| Nco | 2*DDR4 2133/2400 SODIMM qhov, Max: 32GB |
| Cia | 1 * M.2 2280 qhov, 1 * 2.5" HDD (2 * 2.5" HDD Optional) |
| Zaub Chip | Intel HD Graphics 630 |

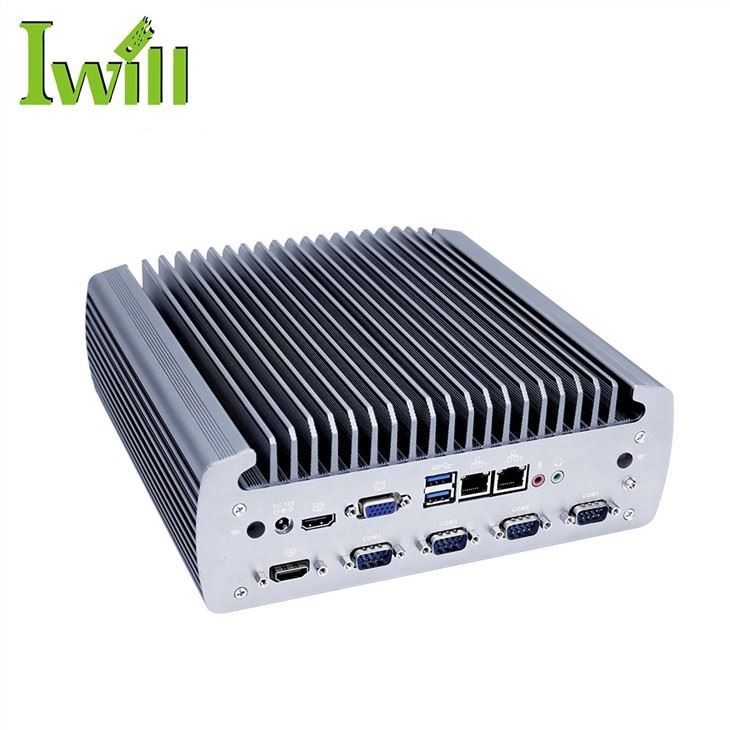

| I/O | 6*USB2.0,2*COM,1*Power Switch |
| 2*USB3.0,2*1000M LAN,1*VGA,2*HD-MI,1*Mic,1 * Kab tawm | |
| 4 * COM (COM2 * RS232 / RS422 / 485 yeem), 1 * DC | |
| Fais fab mov | DC 12 - 19V / 9 - 36V dav voltage Input |
| Ua haujlwm Temp | 0 degree - +50 degree (Commercial HDD), -20 degree - +60 degree |
| Ua haujlwm av noo | 5% - 95% Tsis-condensing |

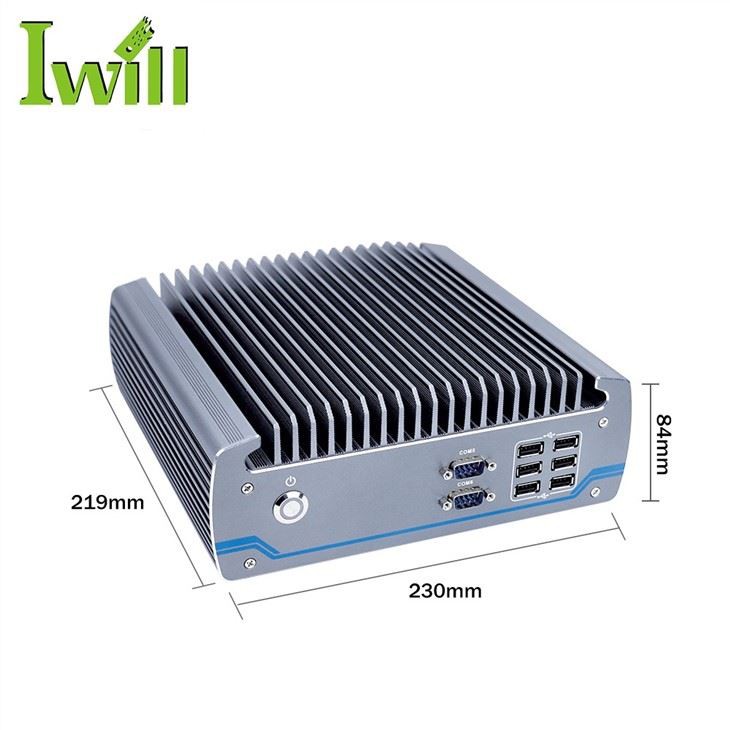

| Dimension | 230 * 219 * 84 hli |
| Qhov hnyav | 4.0 kg 【tsis suav nrog phab ntsa bracket】 |
Lub PC muaj kev lag luam yog lub khoos phis tawj tsim los rau kev lag luam (kev tsim khoom thiab kev pabcuam), nrog rau daim ntawv ntawm lub nettop thiab lub server khib. Cov PCs muaj kev cia siab ntau dua thiab cov qauv raug, thiab feem ntau kim dua li cov khoom siv hluav taws xob. Lawv feem ntau siv cov txheej txheem qhia nyuaj, xws li x86, qhov twg cov kev qhia txo qis xws li ARM yuav siv lwm yam.
thaum koj muaj txog kev lag luam project koj tuaj yeem ntseeg thiab xaiv Iwillminipc rau order.besides, peb muab indsutrial embedded system customized.Zoo siab txais tos rau kev sab lajJessie Wangntawm professional!
