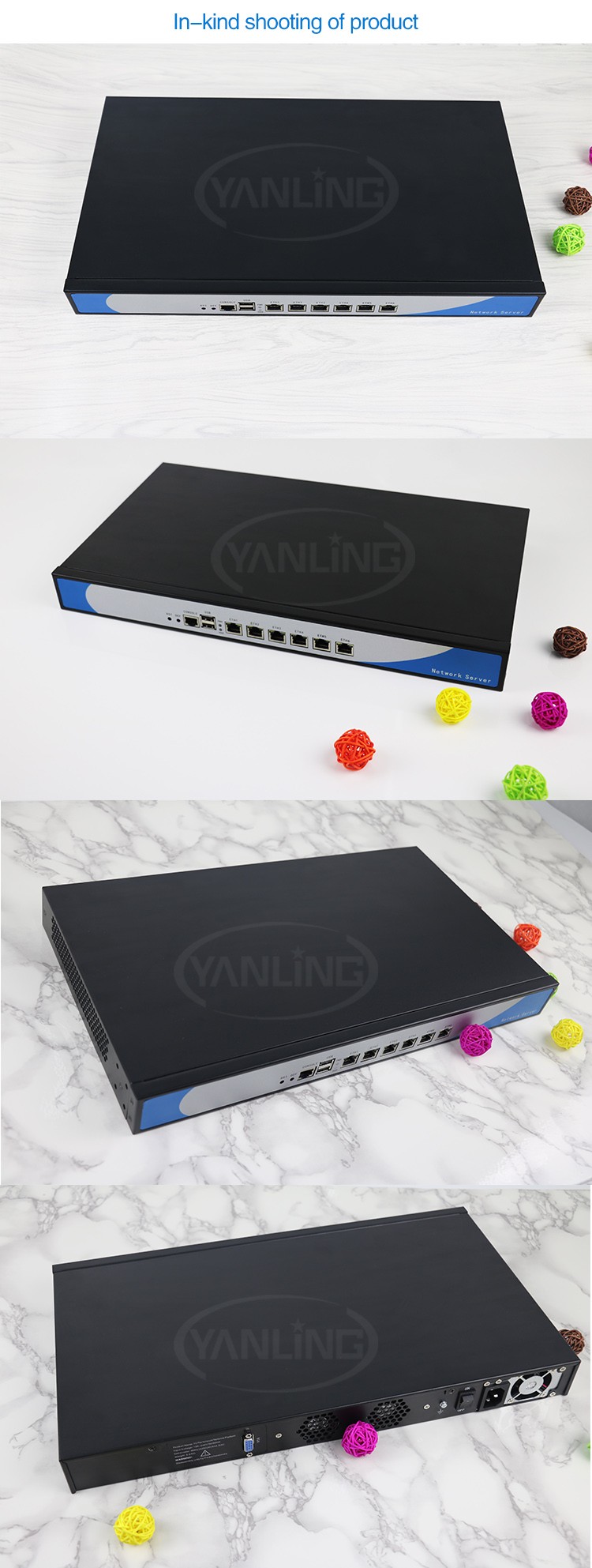

MINI PC Firewall Fanless Network Server nrog 6 * Lan Port VPN Firewall PFsense Computer
1) Inter core i3 i5 i7 LGA1155 processor dual core thiab intel B75 chipset
2) 1*VGA+2*USB2.0+1*Power switch +6*Intel LAN(Tau ntxiv 2 * fiber ntau qhov chaw nres nkoj)
3)AMI 64MB Flash ROM.kev txhawb nqaRPL/PXEdiskless khau raj,aw lan,hluav taws xob khau raj, WDT
4)High-quality ntshiab aluminium Case
5) 1 * MSATA, 1 * 2.5'' SSD/HDD, 1 * mini-PCIE, txhawb wifi
6) 6* Intel 82574L 1000M lancard, txhawb nqa ntawm lan
7)AC 100V-240V fais fab mov;
8)Siv rau hauvFirewall, VPN, Network Server, Network Security, Router thiab lwm yam.
Specification | |||

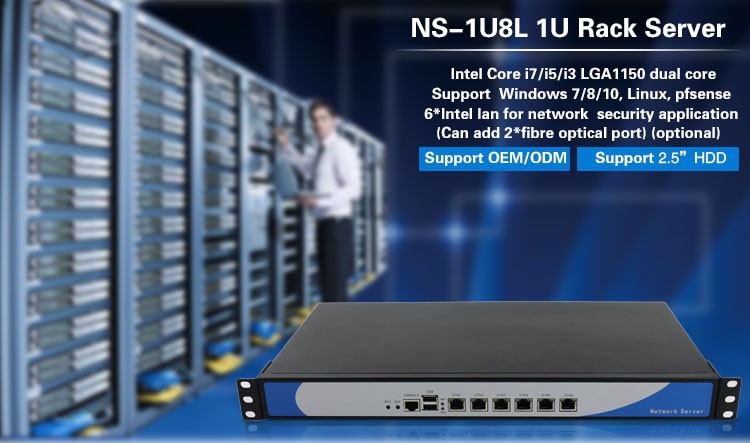

Qauv | NS-1U8L (B75) | ||
CaseColor | Dub (xim tuaj yeem kho tau) | ||
Khoom siv | High-zoo ntshiab aluminium | ||

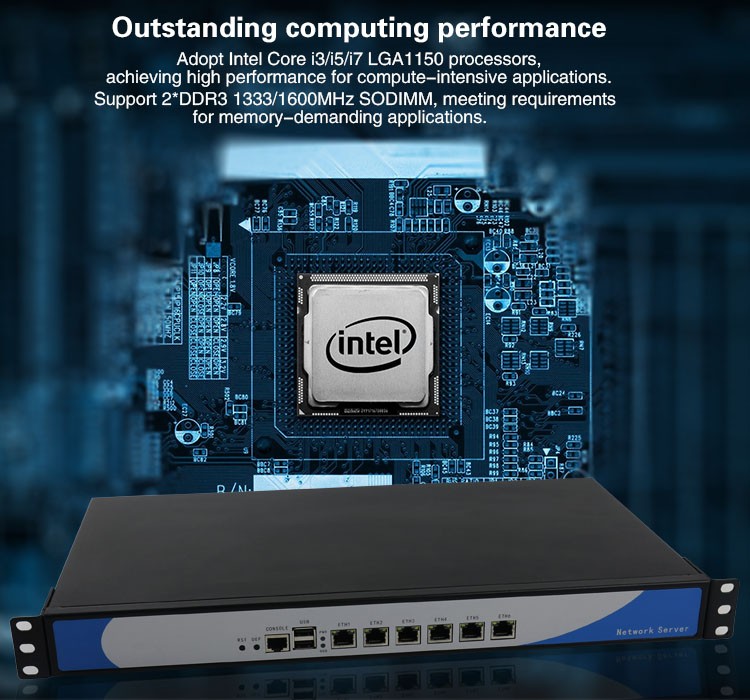

CPU | Intel Core i3 i5 i7 LGA1155 processor dual core | ||
Chipset | Txais Intel B75 chipset | ||
Mainboard | 170 * 170mm mini ITX mainboard | ||
RAM | 2 * SO-DIMM DDR3, txhawb nqa max 16G | ||
Cia | 1 * MSATA, 1 * 2.5'' HDD, 1 * CF daim npav qhov | ||
Suab | N/A | ||
DisplayInterface | 1 * VGA | ||
Zaub | Integrated Intel HD Graphic card, txhawb 1 * VGA | ||

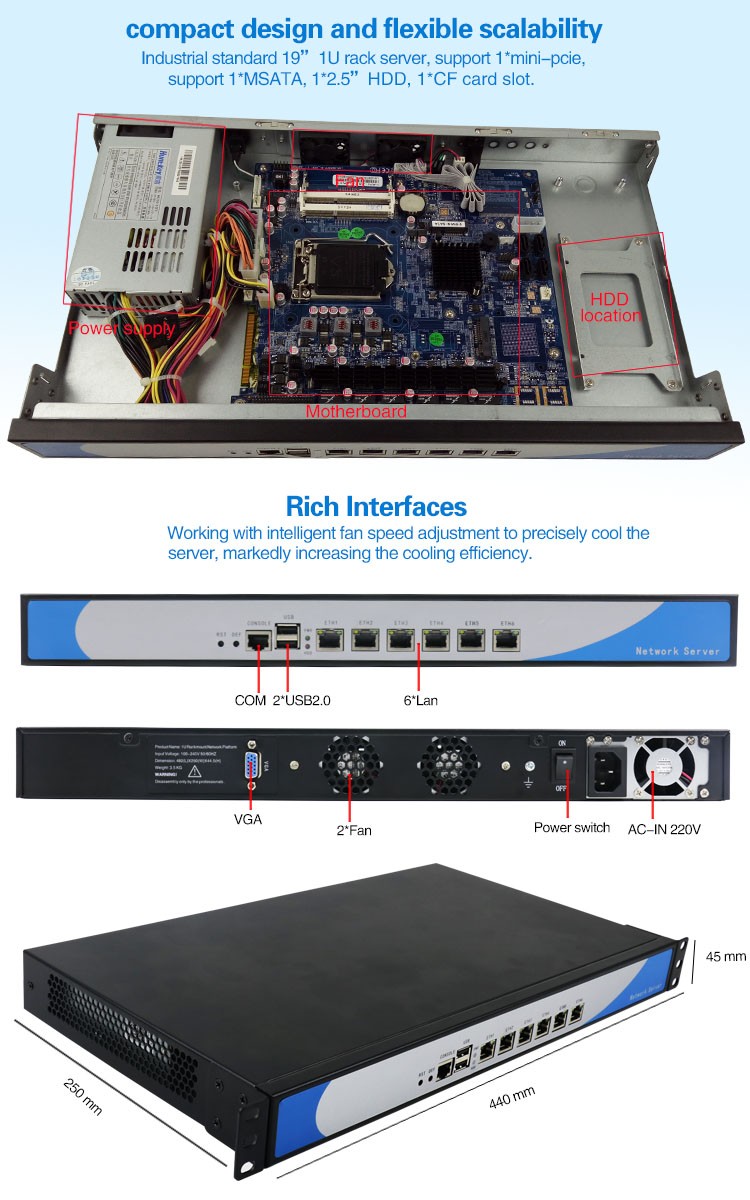

I/O | 2 * USB 2.0 | ||
1 * VGA | |||
1 * HDD LED | |||
6 * Intel Lan | |||
1 * Lub zog LED | |||
1 * Fais fab hloov | |||
1 * AC 220V tswv yim | |||
NetworkCard | 6 * Intel 82574L 1000M lan, txhawb nqa ntawm lan | ||
Kev nthuav dav | 1 * mini-PCIE, txhawb Wifi | ||
WatchDogTimer | Txhawb nqa | ||
PowerSupply | AC 100V ~ 240V fais fab mov | ||
Kev Ua Haujlwm | Windows 7/8/10, Linux, Pfsense | ||
BIOS | AMI 64M DPI Flash ROM | ||
Ua haujlwmKub | -10°C-60°C | ||
Ua haujlwmCov av noo | 0% - 95% txheeb ze humidity, Tsis-condensing | ||
Loj | 440 * 250 * 45 hli (L * W * H); | ||
Qhov hnyav | 8 kg; | ||
1. Lub sij hawm xa tuaj:1 ~ 3 Hnub rau ib qho qauv, 15 hnub ua haujlwm rau ntau qhov ntau.
2. Kev ntim khoom:Txhua lub pc rau ib lub thawv nruab nrab;
3.Shipping Txoj kev:Rau qhov me me, peb qhia peb cov neeg siv khoom kom coj DHL, Fedex, UPS.
Rau ntau qhov ntau, peb tuaj yeem txhawb nqa nkoj los ntawm huab cua lossis hiav txwv.
