Mini PCs tau muab tso rau hauv HTPCs nrog rau chav nyob sib haum xeeb, kev ua yeeb yaj kiab siab txhais tau, thiab qhov chaw nyob ntsiag to. Nrog rau kev loj hlob ntawm nyias nyias ntawm lub chassis thiab cov npe nrov ntawm lub computer hosts nyob rau hauv chav nyob, nws yog ib tug qauv rau tso mini computer hosts nyob rau hauv lub chav tsev nyob.
Xim | Titanium grey(Xim tuaj yeem kho tau) |
Khoom siv | High-zoo txhuas txhuas，nto anodic oxidation |
Processor | Onboard Intel Celeron J4125（Quad core quad threading，4 MBCmob，2.0GHz，mem tes zaus2.7GHz） |
CPU Architecture | Gemini Lake Refresh |
RAM | Txhawb 1 * DDR4 2400MHz SODIMMNcoQhov，Max.Txhawb nqa8gb ua |
BIOS | AMI UEFI BIOS |
Zaub Chip | Integrated Intel HD Graphics 600 |
Display Port | 1 * HDMI chaw nres nkoj，1*DP，1*Hom-CChaw nres nkoj(Txhawb synchronous thiab asynchronous peb zaub，Max daws teeb meem txhawb 4096x2160 @ 60Hz） |

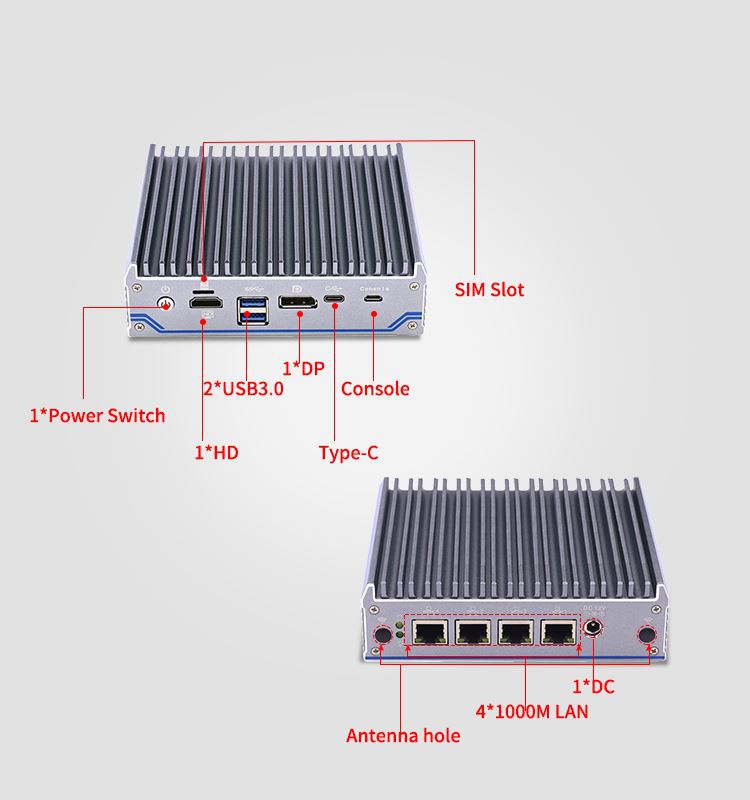

Pem hauv ntej I/O | 1 * Fais fab hloov，1 * HDMI chaw nres nkoj，1*DP，1*Mirco USB(Txhawb nqaConsole) |
2*USB 3.0，1*Hom-CChaw nres nkoj（Xaiv qhov chaw nres nkoj：1 * USB 3.0 thiab 1 * DP） | |
Rov qab I/O | 1*DC，4* 1000M LAN |
Expansion Qhov | Txhawb 1 * M.2 2280 M-key Slot（Txhawb SATAraws tu qauv） |
Txhawb nqa 1*M.2 2230 E-keyQhov（WIFIlos yog Bluetooth yeem） | |
Txhawb nqa 1*Mini PCIEQhov（4G / WIFI /Bluetooth yeem, Embedded SIM qhov） | |
Network | 4*Intel i210-AT 10/100/1000M Ethernet LAN |
Cia | Onboard8 G EMMC，1*M.2 2280SQhov，1*2.5’’HDD |
Input voltage | Txhawb DC 12VTswv yim |
Lwm Txoj Haujlwm | Nws pib fais fab thaum muaj hluav taws xob、Timing khau raj、Wake ntawm LAN、PXE khau raj |
Ua haujlwm Temp | 0℃-+50℃（Kev lag luamHDD），-20℃-+60℃（Muaj SSD），Surfaceairflow |
Ua haujlwm av noo | 0%-95% tsis-condensing |
Daim ntawv pov thawj | CE、CCC、FCC Chav A、ROHS |

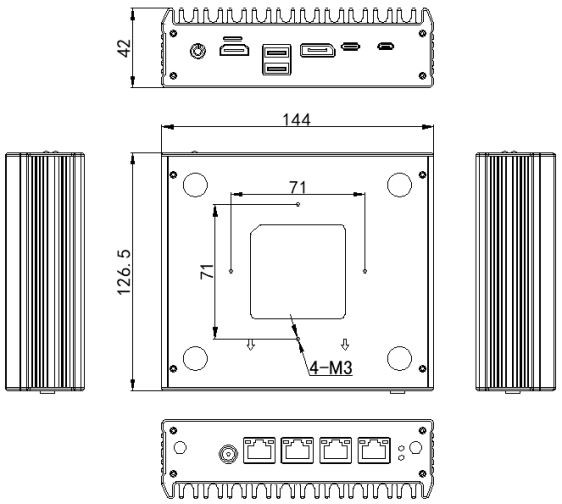

Dimension | 144 * 126.5 * 42 hli |
Net nyhav | 0,7kg ib |
Daim ntawv thov | Firewall, VPN, Network Server, Network Security, Router thiab lwm yam. |

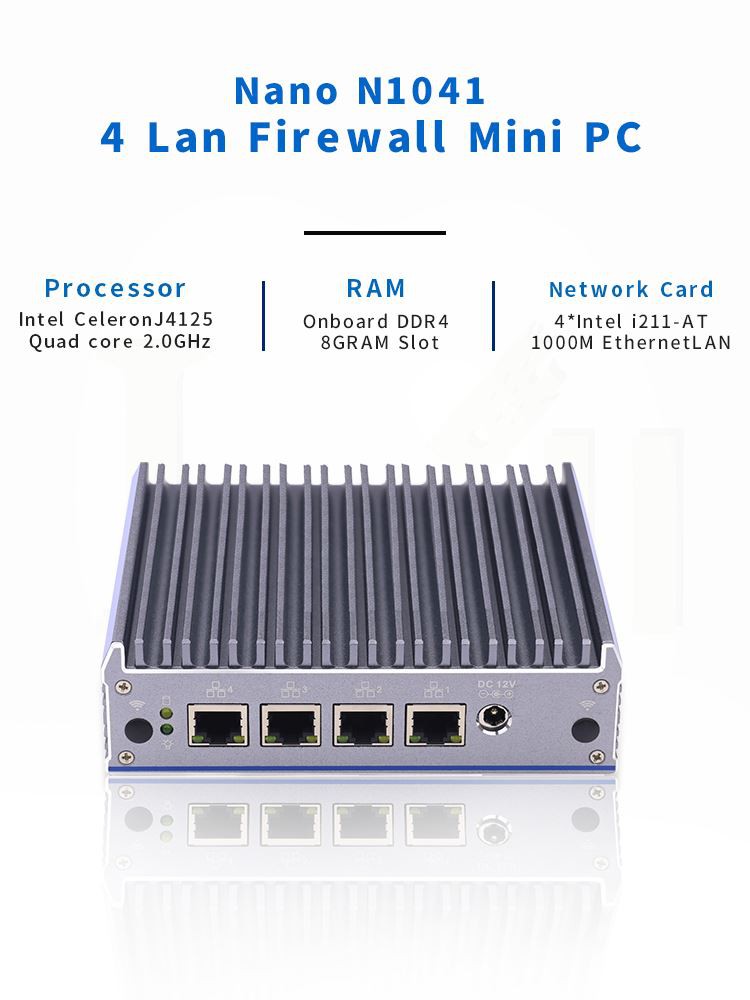

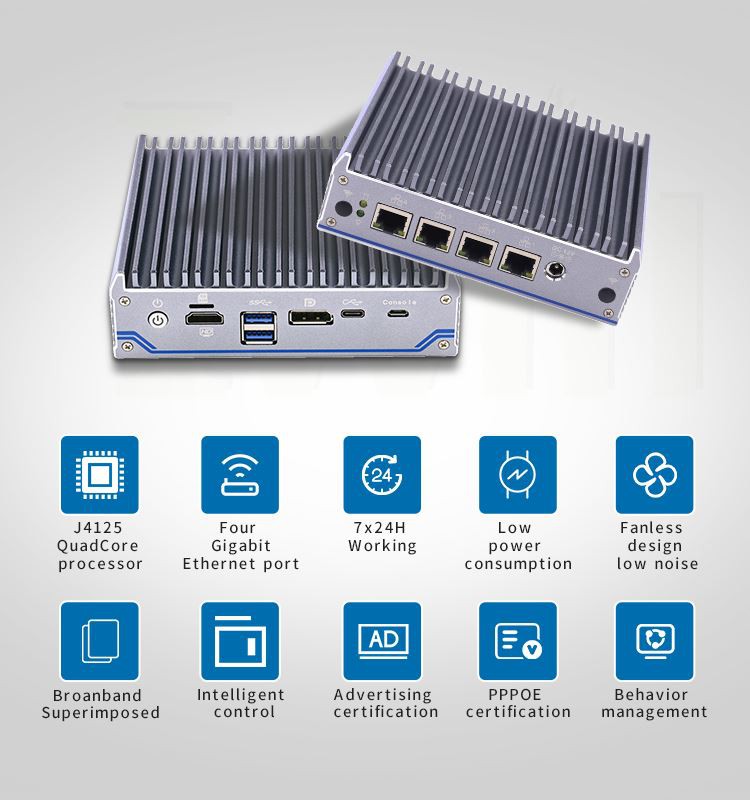

1) Onboard Intel Celeron J4125 (Quad core quad threading, 4MB Cache, 2.0GHz, mem tes zaus 2.7GHz)
2) 1*DP+1*HD+4*LAN+2*COM+2*USB3.0
3) High-zoo ntshiab aluminium Case
4) Txhawb 2 * M.2 qhov, 1 * Mini PCIE Slot;
5) Onboard EMMC 8G, Kev them nyiaj yug 1 * Hom-C Puv Ua Haujlwm;
6) Txhawb Desktop, Din Rail, VESA phab ntsa-mounted thiab lwm txoj kev kho;
7) Intel Celeron J4125 Quad core mini pc
Ntim& Shipping
1. Lub sij hawm xa tuaj:
1 ~ 3 Hnub rau ib qho qauv, 15 hnub ua haujlwm rau ntau qhov ntau.
2. Kev ntim khoom:
Txhua lub pc rau ib lub thawv nruab nrab, 10 lossis 16 lub thawv nruab nrab rau ib lub thawv.
3.Shipping Txoj kev:
Rau qhov me me, peb qhia peb cov neeg siv khoom kom coj DHL, Fedex, UPS.
Rau ntau qhov ntau, peb tuaj yeem txhawb nqa nkoj los ntawm huab cua lossis hiav txwv.
Cov lus qhia sov:Yog tias koj' txaus siab rau qhov noIntel Celeron J4125 Quad core mini pc, thiab xav paub ntau ntxiv, xws li cov lus hais, khoom, kev daws teeb meem, thiab lwm yam, txais tos hu rau!
Hu rau: Nancy
Email: nancy@iwilltech.cn
Skype: kev xav
Wechat ID: Nancy_0008
