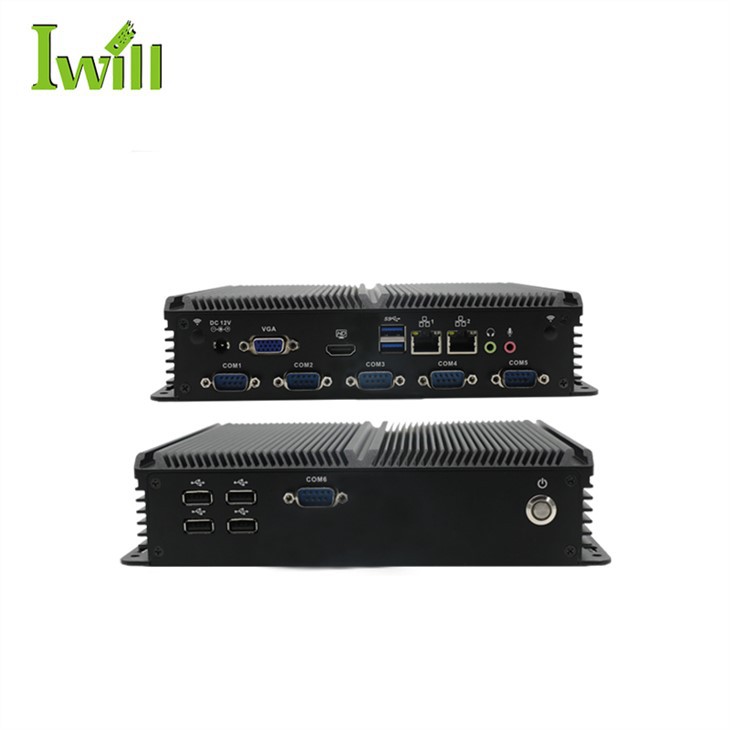

Fanless Celeron J4125 Industrial Computer
◇ Txhua tus qauv txhuas, tsis muaj kiv cua tsim;
◇ Onboard Intel Celeron J4125 Quad Core processor;
◇ Txhawb 2*Intel i211-AT 1000M LAN;
◇ Txhawb 1 * M.2 qhov, 1 * Mini PCIE qhov;
◇ Txhawb WIFI / 3G / 4G (Peb xaiv ib qho)
◇ Txhawb 6 * COM, COM1 Txhawb RS485;
◇ Txhawb OS:
Xa kev nug
Product Details ofFanless Celeron J4125 Industrial Computer
IBOX-1026 yog lub tshuab hluav taws xob qis qis Celeron J4125 muaj lub computer, Nws txhawb Windows 10, Linux, Txhawb 2 * Intel i211-AT 1000M LAN; Txhawb 1 * M.2 Slot, 1 * Mini PCIE Slot; Txhawb WIFI / 3G / 4G (Peb xaiv ib qho); Txhawb 6 * COM, COM1 Txhawb RS485; yooj yim heev rau siv.
Lub tshuab tag nrho txais yuav aluminium alloy pwm tsim, qauv yooj yim, nrog cov plua plav zoo, cua sov dissipation, tiv thaiv kev vibration thiab EMC kev ua tau zoo, kev ntseeg siab, muaj zog ib puag ncig.
Khoom Feature
Nta:
1. Txhua tus qauv txhuas, tsis muaj kiv cua tsim;
2.Onboard Intel Celeron J4125 Quad Core processor;
3. Txhawb 2*Intel i211-AT 1000M LAN;
4. Txhawb 1 * M.2 Qhov, 1 * Mini PCIE qhov;
5. Txhawb WIFI / 3G / 4G (Peb xaiv ib qho)
6. Txhawb 6 * COM, COM1 Txhawb RS485;
7. Txhawb OS:
Khoom Qhia
| kiv cua Celeron J4125 muaj computer | |
Qauv | IBOX-1026 |
Xim | Dub（Color tuaj yeem kho tau） |
Khoom siv | High-zoo txhuas txhuas,nto anodic oxidation |
Processor | Hauv Intel Celeron J4125（Quad core quad threading,4 MB Cmob,2. 0GHz,lub turbo2.7GHz） |
CPU Architecture | Gemini Lake Refresh |
RAM | Txhawb 1 * DDR4 2400MHz SODIMMNcoQhov,Max. Txhawb nqa8gb ua |
BIOS | AMI UEFI BIOS |
Zaub Chip | Integrated IntelUHD Graphics 600 |
Display Port | 1 * HDMI,1*VGA（Txhawb synchronous thiabasynchronous dual zaub,Max daws teeb meem txhawb 4096x2160 @30Hz） |

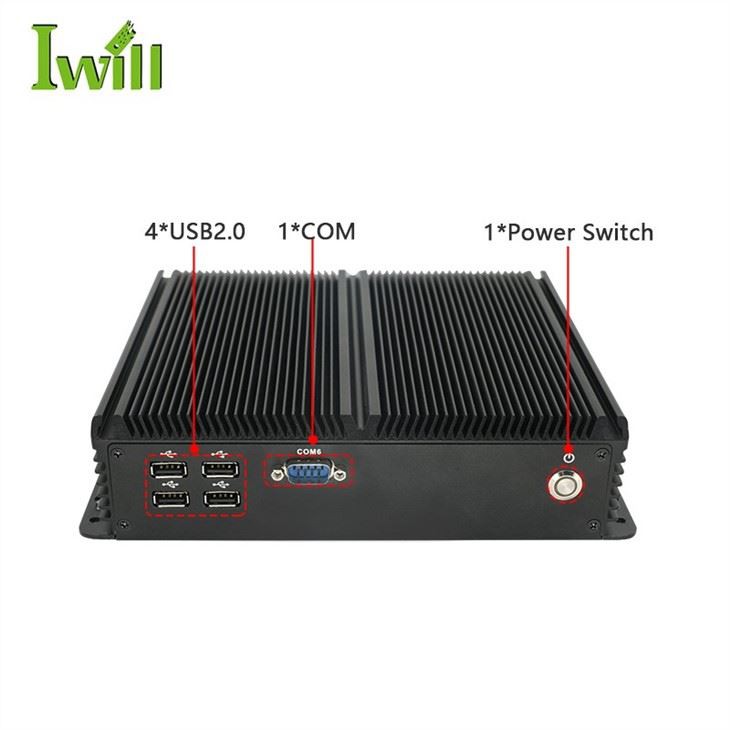

Pem hauv ntej I/O | 4*USB2.0,1 * Fais fab hloov,1 * COM |

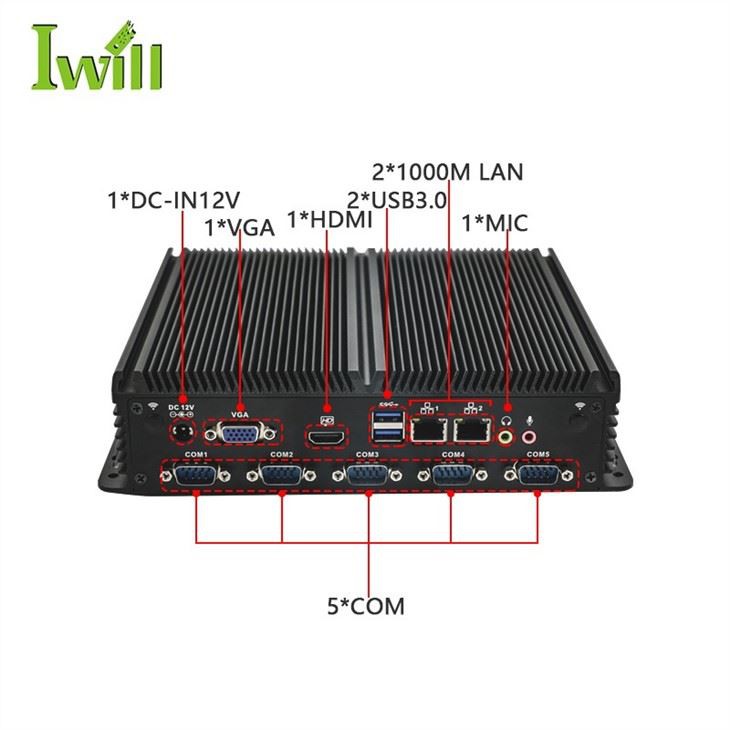

Rov qab I/O | 1*DC,1*VGA,1 * HDMI, 2*USB3.0, 2 * 1000M LAN, 1 * MIC, 1 * SPK |
5 * COM | |
Expansion Qhov | Txhawb 1*M.2 2280 M-key Slot（Txhawb SATA raws tu qauv） |
Txhawb nqa 1*Mini PCIE Qhov（4G / WIFI /BT Optional,Embedded SIM qhov） | |
Xaiv qhov chaw nres nkoj:GPIO,4*USB2.0,PS/2,LPT | |
Network | 2*IntelI211-AT 10/100/1000M Ethernet LAN |
Cia | 1*M.2 2280 Qhov,1*2.5'' HDD |
Input voltage | DC 12 V Tswv yim |
Yog tias koj txaus siab rau peb cov kiv cua tsis muaj Celeron J4125 industrial computer,tiv tauj pebntawm peb lub computer industrial.
