Daim ntawv thov ntawm Embedded IPC hauv Kev Saib Xyuas Kev Ncaj Ncees
Lub hom phiaj ntawm kev saib xyuas txoj kev loj yog txhawm rau xyuas kom muaj kev nyab xeeb ntawm kev tsheb thiab txoj kev du, muab cov kev pabcuam kev sib koom ua ke rau kev thauj mus los sai, muab kev sib txuas lus pub dawb rau cov kev pabcuam tsheb khiav / tsheb-txoj kev sib tshuam, thiab muab kev pabcuam puv sijhawm rau cov xwm txheej kub ntxhov. . , los muab cov neeg taug kev nrog kev ua kom zoo thiab muaj kev ywj pheej mus ncig.
1. Txheej txheem cej luam
Siv cov cuab yeej siv pom kev pom thiab pom cov duab thev naus laus zis, kev saib xyuas txoj kev loj tuaj yeem txheeb xyuas txoj kev tsheb lub hom phiaj, taug qab txoj kev khiav ntawm lub tsheb, ntse txiav txim rau txoj kev tsav tsheb ntawm lub tsheb, thiab paub txog kev saib xyuas cov ntaub ntawv ntawm lub tsheb. Nyob rau tib lub sijhawm, nws paub txog kev ua haujlwm xws li kev kuaj xyuas kev ua txhaum cai hauv tsheb thiab kev kaw cia, kev saib xyuas lub tsheb ntse, kev kuaj xyuas qhov xwm txheej ntawm kev tsheb, kev kuaj xyuas qhov ntsuas tsheb, thiab kev soj ntsuam video.
2. Cov kev cai ntawm qhov system
The highway monitoring system requires the functions of automatic detection and recording of traffic violations, vehicle feature recognition, video monitoring, data storage, data transmission, and self-diagnosis and alarm. In addition, the highway monitoring system requires uninterrupted and long-term stable operation in complex environments such as outdoor high temperature/low temperature, humidity, electromagnetic, dust, and vibration. It is required that the industrial computer adopts a low-power, fanless design, with a mean time between failures >30,000 teev thiab lub sijhawm kho qhov nruab nrab< 1="" hour;="" supports="" ultra-high-definition="" cameras="" with="" a="" wide="" detection="" range;="" built-in="" large-capacity="" storage,="" no="" need="" for="" additional="" video="" equipment;="" diagnosis="" and="" alarm="" function,="" convenient="" for="" later="" maintenance;="" support="" software="" upgrade="" mode="" to="" ensure="" the="" improvement="" of="" subsequent="">
3. System moj khaum thiab schematic daim duab

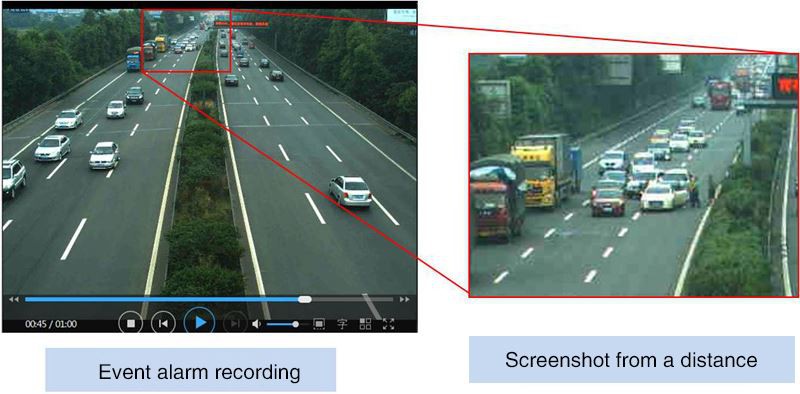

Txoj kev saib xyuas txoj kev loj tuaj yeem muab faib ua kev saib xyuas kev tsheb khiav, kev sau, kev tshuaj xyuas thiab tso tawm cov ntaub ntawv tsheb khiav thiab cov ntaub ntawv huab cua. Ntawm lawv, lub koob yees duab koom tes nrog lub tshuab computer kom tau txais kev saib xyuas ntau yam kev tsheb khiav hauv 1km, thiab ntawm qhov tod tes, nws yog lub luag haujlwm kom tau txais lub tswb nrov ntawm ntau lub tsheb xuas nrig ntaus los ntawm lub chaw saib xyuas txhua lub sijhawm, thiab tuaj yeem taug qab. Ntxiv nrog rau cov haujlwm saib xyuas ib txwm muaj, lub khoos phis tawj ua haujlwm tseem yuav tsum xa cov ntaub ntawv saib xyuas mus rau chav saib xyuas hauv lub sijhawm.
4. Kev daws teeb meem
Embedded industrial computer txhawb dav voltage 9 ~ 36V, dav kub -20 ~ 70 degree, tuaj yeem muab cov duab sib txawv, processor, cia thiab I / O configuration, muaj zog scalability thiab yooj yim txij nkawm, yuav siv tau nyob rau hauv siab vibration, loj kub. sib txawv, 7 * 24 teev ntawm kev ua haujlwm ib txwm nyob hauv qhov chaw muaj plua plav thiab hnyav. Nrog lub hwj chim qis muaj motherboard, nws txhawb Intel®Skylake-U / kaby lake-U i3 / i5 / I7, sib xws nrog 15W / 28W processors, DDR4 nco txog 32GB, txhawb quad-core, hyper-threading, thiab muaj ceev xam ceev. Lub onboard dual Gigabit Ethernet chaw nres nkoj muaj cov ntaub ntawv tau txais txiaj ntsig zoo, uas tuaj yeem muab cov neeg siv cov bandwidth siab rau cov ntaub ntawv xa mus thaum txo tus neeg siv cov nqi siv. Tsis tas li ntawd, nws qhov chaw nres nkoj I / O tsim yog qhov ua tau zoo thiab ua tau raws li cov qauv kev lag luam tshiab kawg, ua rau nws yog thawj qhov kev xaiv rau ntau daim ntawv thov uas xav tau kev ua cov ntaub ntawv ceev.
Embedded IPC nta yog raws li nram no:
1. Nws txhawb Intel thiab domestic platform processors, thiab txhawb lub qhov rais / linux thiab Galaxy Kirin / UOS domestic operating systems. Cov khoom muaj qhov zoo scalability thiab tuaj yeem ua tau raws li ntau yam kev xav tau ntawm kev lag luam.
2. Nws yog tsim nyob rau hauv nruj raws li industrial-qib cov qauv, thiab tau dhau los ntawm ntau yam kev xeem, nrog rau ib puag ncig adaptability.
3. nplua nuj ua haujlwm interface tsim, txhawb lub suab tawm tswv yim thiab tso zis, txhawb nqa ntau lub channel splicing, thiab tuaj yeem ua tau raws li qhov xav tau ntawm ntau yam kev nkag mus rau peripheral.
4. Txhawb ceev algorithm thiab ceev cia.
5. Nrog kev ua haujlwm siab video / duab codec cav, nws txhawb VGA ntxiv rau HDMI ntxiv rau DP ntau lub ntsiab lus siab tso tawm.
6. Nws txhawb Ethernet / WIFI / 4G / Beidou qhov chaw thiab lub sijhawm, muaj qhov hloov pauv tau yooj yim ntawm kev siv network ib puag ncig, thiab txhawb kev xa xov sai thiab ua tau zoo ntawm cov teeb liab digital.
Lub khoos phis tawj muaj peev xwm muab tau cov kev ua tau zoo hauv kev ua haujlwm hauv qhov chaw me me, ruaj khov, ua haujlwm tau zoo thiab txhim khu kev qha, thiab tuaj yeem ua lub luag haujlwm tseem ceeb hauv kev saib xyuas txoj kev loj. Nws yog qhov kev xaiv raug rau cov neeg siv khoom uas txwv qhov chaw thov.
