Embedded I3 I5 I7 Muaj PC Rau Lub Koob Yees Duab
◇ Max. Txhawb DDR{0}}GB RAM
◇ 1xMINI PCIE Slot (WIFI / 3G / 4G yeem
◇ Txhawb 32 txoj kev cais GPIO teeb liab
◇ Txhawb 5xIntel i211-AT LAN (4x POE LAN)
◇ OS:
Xa kev nug

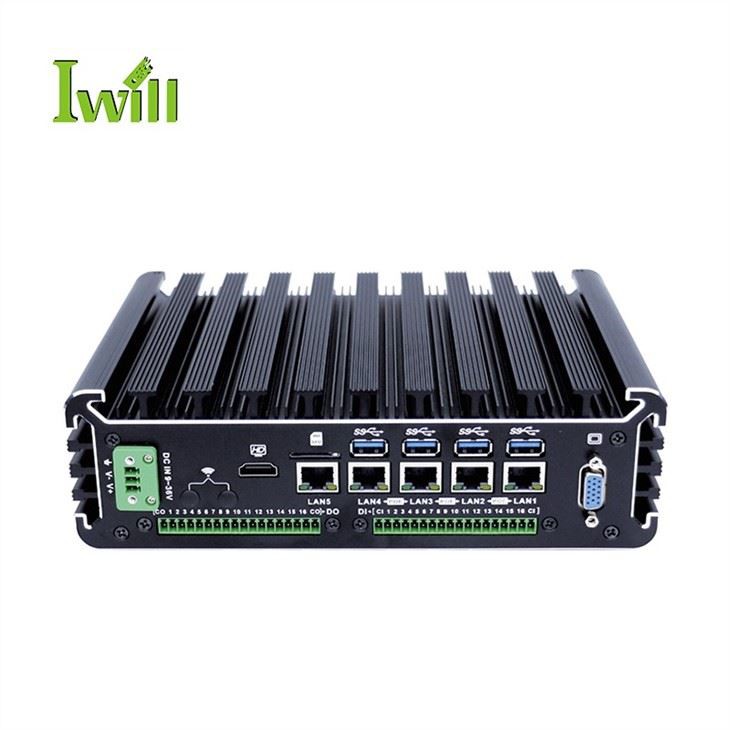

Product Details ofEmbedded I3 I5 I7 Muaj PC Rau Lub Koob Yees Duab
IBOX-603 Embedded fanless pc powered by Intel Celeron 3855U, 6th Generation Core i3 6100U,i5 6200U,i7 6500U Processor, txais Intel HD Graphics 510 / 520 zaub daim npav, dual zaub chaw nres nkoj 1 * VGA, 1 * HD-MI, muab rau koj txawv tshaj plaw kev paub.ultra Loj muaj peev xwm 1xDDR4 Max Txhawb 16GB nco, 2 * 18 PIN Phoenix Connector GPIO(Kev Txhawb Nqa Opto- couplers cais), 5 * Intel i211-AT 1000M LAN(Txhawb 4 * 802.3af tus qauv POE LAN), Fanless Industrial PC Rau Tshuab Vision, CCTV koob yees duab thiab lwm yam.
| Qauv | IBOX-603 |
| Processor | Intel Celeron 3855U, Intel Core i3 6100U, i5 6200U, i7 6500U dual core |
| RAM | 1 * DDR4 RAM Slot, Max 16GB |
| Cia | 1 * MSATA qhov, 1 * 2.5 "HDD |
| Pem hauv ntej I/O | 2 * COM, 1 * Fais fab hloov |
| Rov qab I/O | 4 * USB3.0, 1 * VGA, 1 * HDMI, 1 * 3 PIN Power Supply Phoenix Connector |
| 5 * Intel i211-AT 1000M LAN(Kev them nyiaj yug 4 * 802.3af tus qauv POE LAN), 2 * 18 PIN Phoenix Connector GPIO (Txhawb Opto-couplersmuab cais nyob ib leeg) | |
| Expansion Qhov | 1 * MINI PCIE Slot (WIFI / 3G / 4G yeem), Embedded SIM Slot |
| 1 * MINI PCIE Slot (Txhawb MSATA) | |
| Fais fab mov | DC 9-36V dav voltage Input |
| Ua haujlwm Temp | 0 degree - +50 degree (Commercial HDD), -20 degree - +60 degree (Industrial SSD), Deg cua ntws |
| Ua haujlwm av noo | 5% - 95% tsis-condensing |
| Dimension | 230 * 166 * 68mm 【Tsis suav nrog bracket】 |
| Net nyhav | 2.3 kg 【Tsis suav nrog bracket】 |

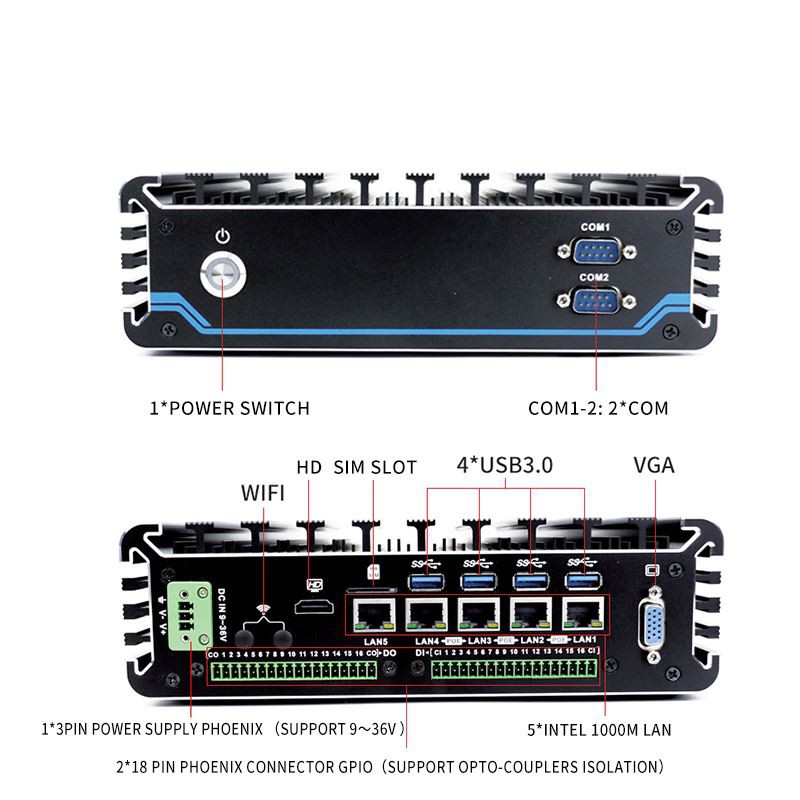

High kawg IPC, nplua nuj interfaces ua tau raws li koj xav tau:
4 * USB3.0+2*COM+1*VGA+1*HDMI+5*Intel 1000M LAN1*Power Switch+1*3 PIN Power Supply Phoenix Connector { {10}}* 18 PIN Phoenix Connector GPIO (Txhawb Opto-couplers cais)

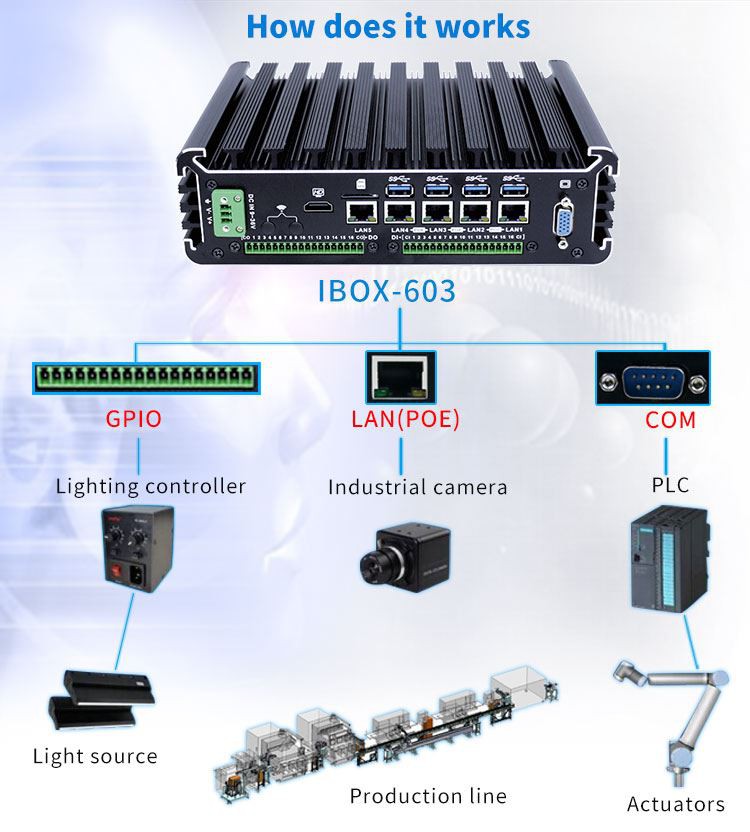

Nws ua haujlwm li cas?
Iwill Technology nrog cov cuab yeej zoo kuaj thiab muaj zog technical force.With ntau yam, zoo zoo, tsim nyog tus nqi, stylish designs thiab loj Tech pab neeg txhawb nqa, peb cov khoom tau siv dav hauv ntau industries.look forwarder los pib koom tes nrog koj !
