Specification | |
Qauv | Nano N1041 |
Xim | Titanium grey (Xim tuaj yeem kho tau) |
Khoom siv | High -zoo tag nrho cov txhuas,nto anodic oxidation |
Processor | Onboard Intel Celeron J4125（Quad core quad threading,4 MB Cmob,2. 0GHz,mem tes zaus 2.7GHz） |
CPU Architecture | Gemini Lake Refresh |
RAM | Txhawb 1DDR4 2400MHz SODIMMNcoQhov,Max. Txhawb nqa8gb ua |
BIOS | AMI UEFI BIOS |
Zaub Chip | Integrated Intel HD Graphics 600 |

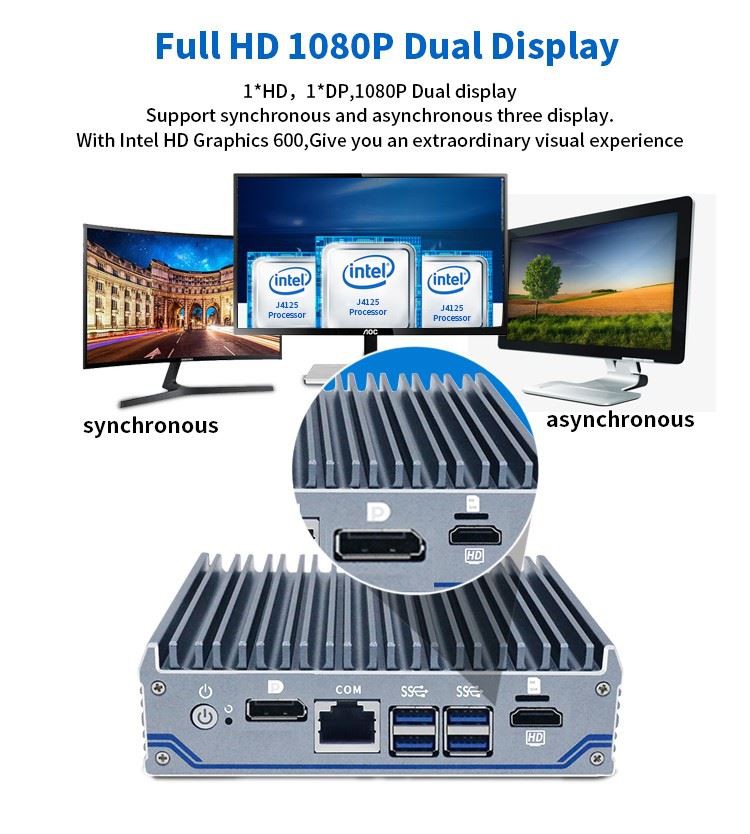

Display Port | 1 HDMI,1DP（Txhawb synchronous thiab asynchronousdual display,Max daws teeb meem txhawb 4096x2160 @ 60Hz） |

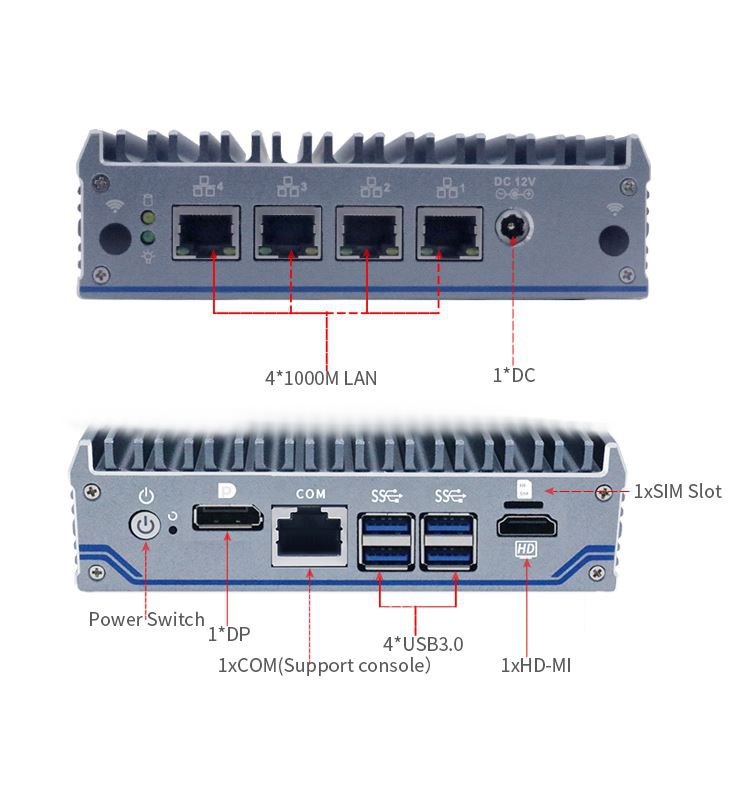

Pem hauv ntej I/O | 1 Lub zog hloov,1DP,1 HDMI,4USB3.0,1 SIM Slot |
1RJ45 COM（Txhawb console）,1 Rov pib dua | |
Rov qab I/O | 1DC,41000M LAN |
Expansion Qhov | Txhawb 1M.2 2280 M-qhov tseem ceeb（Txhawb SATA raws tu qauv） |
Txhawb nqa 1M.2 2230 E-key Qhov（Tsuas yog txhawb USB BT） | |
Txhawb nqa 1Mini PCIE Qhov（4G xaiv tau,External SIM qhov:tsuas yog txhawb USB Wifi / BT） | |
Network | 4Intel i211-AT 10/100/1000M Ethernet LAN |
Cia | 1M.2 2280SQhov,12.5'' HDD |
Input voltage | Txhawb nqa DC 12 V Tswv yim |
Lwm Txoj Haujlwm | Nws pib fais fab thaum muaj hluav taws xob,Timing khau raj,Wake ntawm LAN,PXE khau raj |
Ua haujlwm Temp | 0 degree- ntxiv 50 degree（Kev lag luam HDD）,-20 degree- plus 60 degree （Muaj SSD）,Surface air flow |
Ua haujlwm av noo | 0 feem pua- 95 percent non-condensing |
Daim ntawv pov thawj | CE, CCC, FCC Chav A, ROHS |
Dimension | 144 126.5 42 mm |
Net nyhav | 0.7 kg |
Daim ntawv thov | Firewall, VPN, Network Server, Network Security, Router thiab lwm yam. |
Accessories List | ||
Lub npe | Ntau | Specification |
Fais fab Adapter | 1 | 12V 4A/12V 5A |
Hwj chim Cord | 1 | xaiv tau (Tuam Tshoj, Asmeskas, EU, UK thiab lwm yam) |
VESA Bracket | 1 | Txuj |
Cov ntaub ntawv xaj | |||
Kev teeb tsa 1 | Nano N1041 | Intel CeleronJ4125 | Txuj Chaw nres nkoj |
