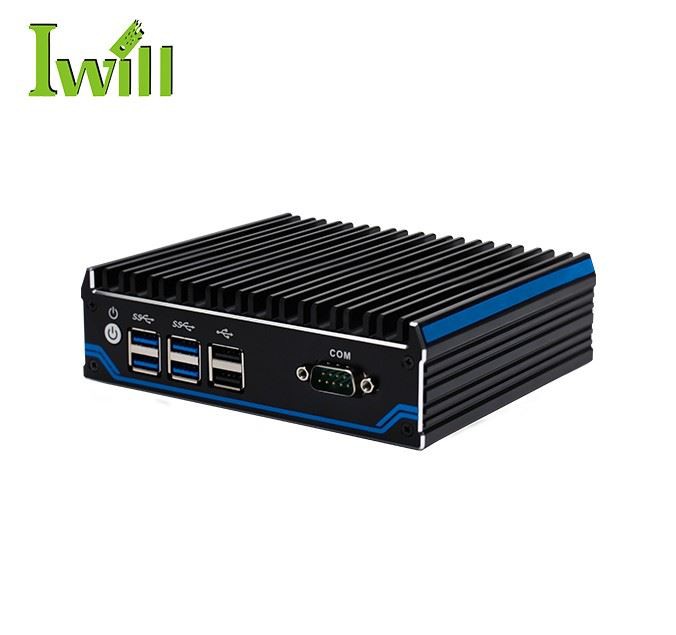

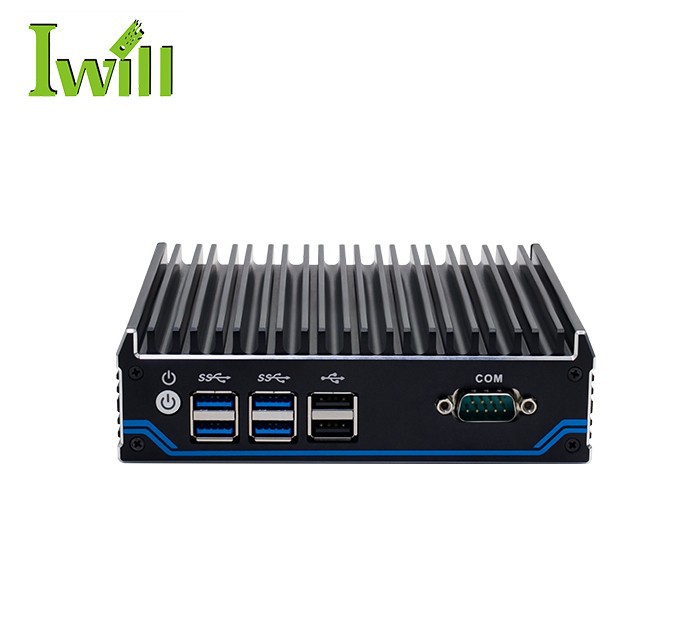

Tsawg Zog FANCESS Mini PC
Intel Celeron J4125 (Qua core quad xov, 2.0ghz, max turbo2.7ghz)
Txhawb Nqa 1 * DDR 4 2400} Sodimm Ram Qhov, max txhawb nqa 8GB
Intelated Intel ® UHD Graphics 600
1 * Fais Zog Hloov, 4 * USB3.0,2 * USB2.0,1 * com
Xa kev nug
Product Details ofTsawg Zog FANCESS Mini PC
Nano N1021yog qhov tsawg-zog, kiv cua mini pc nruab nrog ibIntel Celeron J4125Plaubd-Core processor . nws txhawb nqaQhov rai 10, Li linux, thiab lwm lub tshuab ua hauj lwm . nws kuj txhawb nqa1 × M.2thiab1 × 2.5 "sata HDD, ua rau nws yooj yim heev kom siv .
Tag nrho lub tshuab nta cov aluminium alloy pwm tsim qauv nrog cov qauv yooj yim, muab cov zoo tshaj plawsDustproof, Thaum tshav sov tsis kam, anti-kev vibration, thiabEMCKev Ua Haujlwm . Nws muab kev ntseeg siab siab thiab muaj zog yoog rau ntau qhov chaw.
|
Khoom npe |
Tsawg Zog FANCESS Mini PC |
|
Tus txiv yaj |
Txhawb Nqa 1 * DDR 4 2400} Sodimm Ram Qhov, max txhawb nqa 8GB |
|
Bios |
Ami Uefi BIOS |
|
Tso Chaw Nres Nkoj |
1 * HDMI, 2 * DP (txhawb nqa synchronous thiab asynchronous peb cov zaub, max daws teeb meem kev txhawb nqa 4096x2160 @ 60Hz) |
|
Pem hauv ntej i / o |
1 * Fais Zog Hloov, 4 * USB3.0,2 * USB2.0,1 * com |
|
Tsheb I / O |
1 * DC, 1 * HDMI, 2 * DP, 2 * LAN |
|
1 * SIM Slot, 1 * audio (txhawb nqa mic thiab hais lus tib lub sijhawm) |
|
|
Qhov nthuav tawm |
Txhawb Nqa 1 * M {.2 2280 qhov qis dua (txhawb sia) |
|
Txhawb Nqa 1 * M {{{.2 2242 b-key b-key (txhawb nqa 4g muaj nuj nqi), Embedded 1 * SIM Slot |
|
|
Txhawb Nqa 1 * M {{.2 2230 Qhov tseem ceeb E-Key (Txhawb WiFi, Bluetooth xaiv tau) |
|
|
Yeem nthuav kev muaj nuj nqi: TPM PIN (txhawb TPM 1.2 / 2.0 kev ruaj ntseg module), 1 * com ((tus qauv txheem tsis muaj cov haujlwm no) |
|
|
Lub network |
2 * 10/100 / 1000M RTL8111H LAN |
|
Lub network |
1 * m {.2 2280 Qhov, onboard 1 * 2.5 "Sata HDD |
|
Kev tawm tswv yim voltage |
Txhawb DC 12V tswv yim |
|
Lwm Yam Ua Haujlwm |
Auto Fais fab rau thaum muaj hluav taws xob, lub sijhawm khau raj, sawv ntawm Lan, PXE khau raj |
|
Ua haujlwm temp |
0℃- +50℃(ua lag luam HDD), {}}℃(muaj ssd) |
|
Ua Haujlwm Vaus Av |
{{00% - 95}% tsis-condensing |
|
Qho loj dav |
144 * 126.5 * 42 hli |
|
Daim ntawv thov |
0.8 kg |
Cov Lus Qhia Cia
Lub hauv paus qis-hluav taws xob tsis muaj zog Mini PC yuav tsum muab khaws cia rau hauv nws cov ntim qub ntim. Pom zoo rau qhov kub yog0℃rau 40 degree, nrogTus txheeb ze vaum ntawm 20% thiab 85%. Qhov chaw cia yuav tsum yog cov khoom siv phom sij, thiab cov khoom siv tawg, thiab cov qoob loo kom zoo nkauj .
Lub thawv ntim yuav tsum muab tso rautsawg kawg 10 cmsaum av thiabtsawg kawg 50 cmdeb ntawm cov phab ntsa, qhov chaw cua sov, txias chaw, qhov rai, lossis cua inlets .
Ceev faj - kev pheej hmoo ntawm cov khoom puas
Thaum thauj cov khoom hauv huab cua txias, tsis txhob hloov cov ntaub ntawv tam sim ntawdTsawg kawg yog 12 teevua ntej muaj hwj chim ntawm cov ntaus ntawv .
