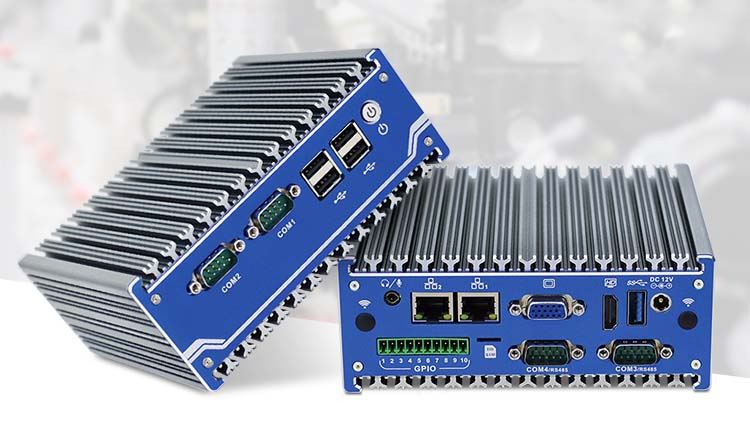

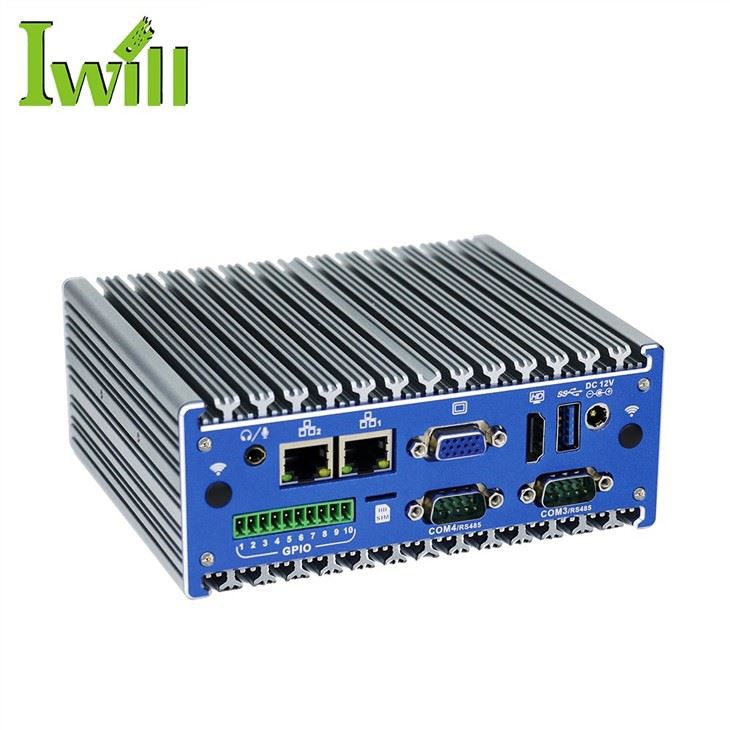

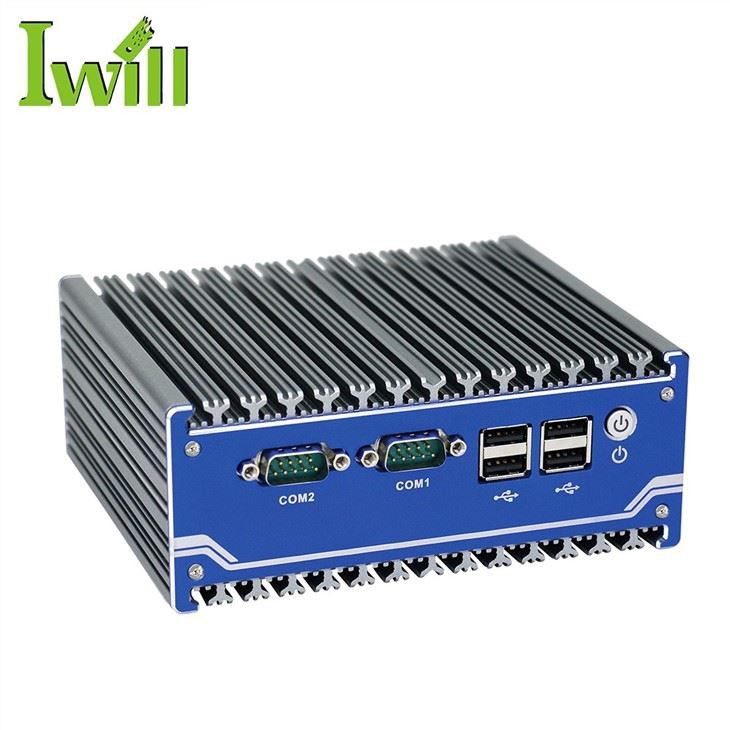

J1900 Muaj Mini PC RS232
◇ Intel Celeron J1900 quad core processor
◇ Onboard DDR3L 1600 4G RAM
◇1 * MINI PCIE (Txhawb MSATA; 3G / 4G / SIM Optional
◇ Txhawb 4 * COM (2 * COM RS232/485 yeem)
◇ OS:
Xa kev nug
Product Details ofJ1900 Muaj Mini PC RS232
NANO N11 yog lub zog qis J1900 Muaj Mini PC RS232. Nws siv Intel Celeron J1900 quad core processor, txhawb Windows 7/8/10 & Linux OS thiab lwm yam, txhawb 1 * MSATA, 1 * 2.5 "HDD: 1 * MINI PCIE (WIFI / Blue-tooth / 3G / 4G Yeem ; 1 * MINI PCIE (Txhawb MSATA; 3G / 4G / SIM Xaiv tau thiab yooj yim heev rau siv. Txhua qhov txhuas tsis muaj kiv cua tsim, qauv yog yooj yim, zoo plua plav, tshav kub dissipation, tiv thaiv kev vibration thiab EMC muaj nuj nqi, muaj kev ntseeg siab thiab muaj zog ib puag ncig siv tau.
| Processor | Intel Celeron J1900 Quad Core 1.9 GHz | |
| N11 | Duab | Intel HD Graphics, txhawb VGA, HD-MI |
| Nco | Onboard DDR3L 1600 4G (Onboard 2G/8G yeem) | |
| Network | 2*Intel i211-AT Gigabit LAN | |
| Hard Disk | 1 * MSATA, 1 * 2.5 nti SATA HDD | |
| Kev nthuav dav | 1 * Mini PCIE (WIFI / Blue-tooth 3G / 4G) | |
| USB | 1*USB3.0, 4*USB2.0 | |
| Dimension | 148 * 125 * 58 hli | |
| Qhov hnyav | 1. 0 kg | |
| Fais fab mov | DC 12 V | |
| Kev khiav hauj lwm Temp | 0 degree - +50 degree (Commercial HDD), -20 degree - +60 degree (Industrial SSD), saum npoo av |
Txhawb dual 4G kev sib txuas
2*Intel i211-AT 1000M Lan, Txhawb 1*MINI PCIE(WIFI/3G/4G yeem), Ua kom kev sib txuas hauv internet yooj yim dua.
Supuort TPM kev ruaj ntseg mdule, Tiv thaiv cov ntaub ntawv los ntawm kev txhaum cai (TPM1.2/2.0 Xaiv), barebone system tsis suav nrog TPM Module, yog tias koj xav tau nws lossis lwm yam ntaub ntawv ntxiv, thov hu rau peb!
Daim Ntawv Thov Kev Npaj
Kev thauj mus los
Cov khoom ntim tau zoo tuaj yeem los ntawm txhua txoj kev thauj mus los, mus rau txhua qhov chaw, nyob rau hauv kev thauj mus los ntev yuav tsum tsis txhob muab tso rau hauv qhov chaw qhib thiab cov tsheb thauj mus los, kev thauj mus los hauv nruab nrab yuav tsum tsis txhob muab khaws cia rau hauv qhov chaw qhib huab cua, tsis pub thauj mus los nrog cov khoom tawg. , tawg, corrosive khoom ua ke. Thiab cov khoom tsis raug tso cai kom ntub dej los ntawm nag, daus los yog kua tshuaj thiab cov neeg kho tshuab puas.
Cia
Qhov chaw cia khoom kub ntawm cov khoom yog 0 degree ~ 40 degree, tus txheeb ze av noo yog 20% ~ 85%. Txhua yam khoom siv phom sij, cov khoom tawg thiab tawg thiab cov tshuaj corrosive tsis raug tso cai nyob rau hauv lub tsev rau khoom, thiab tsis muaj zog txhua yam kev co, kev cuam tshuam thiab muaj zog magnetic teb nyhuv. Cov ntaub ntawv ntim khoom yuav tsum tau muab tso rau qhov deb tsawg kawg 10cm ntawm qhov av thiab tsawg kawg 50cm deb ntawm phab ntsa, qhov chaw tshav kub, qhov chaw txias, qhov rais lossis cua nkag. Ceev faj txog kev pheej hmoo ntawm kev puas tsuaj rau cov khoom siv! Kev hloov pauv kub heev yuav tsum raug sau tseg thaum thauj khoom hauv huab cua txias. Nyob rau hauv cov ntaub ntawv no, xyuas kom meej tias tsis muaj dej droplets (condensation) nyob rau hauv los yog nyob rau hauv lub ntaus ntawv. Yog tias cov ntaub ntawv condensation ntawm lub cuab yeej, thov tos tsawg kawg 12 teev ua ntej txuas lub cuab yeej.
2.3 Qhib thiab tshuaj xyuas cov khoom xa tuaj Thov nco ntsoov cov ntsiab lus hauv qab no thaum tshem cov khoom siv:
● Nws raug nquahu kom koj tsis txhob muab cov khoom ntim khoom pov tseg. Thov khaws cov khoom ntim khoom qub rau kev siv hauv kev thauj khoom dua.
● Thov khaws cov ntaub ntawv rau hauv qhov chaw nyab xeeb, rau qhov pib debugging ntawm cov khoom siv yuav tsum tau siv.
● Tshawb xyuas cov khoom xa tuaj kom pom seb puas muaj kev puas tsuaj loj hauv kev thauj mus los.
Cim npe nrov: J1900 Industrial Mini PC RS232, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, lag luam wholesale, yuav, nqe, pheej yig, kev muag, ua nyob rau hauv Suav teb
