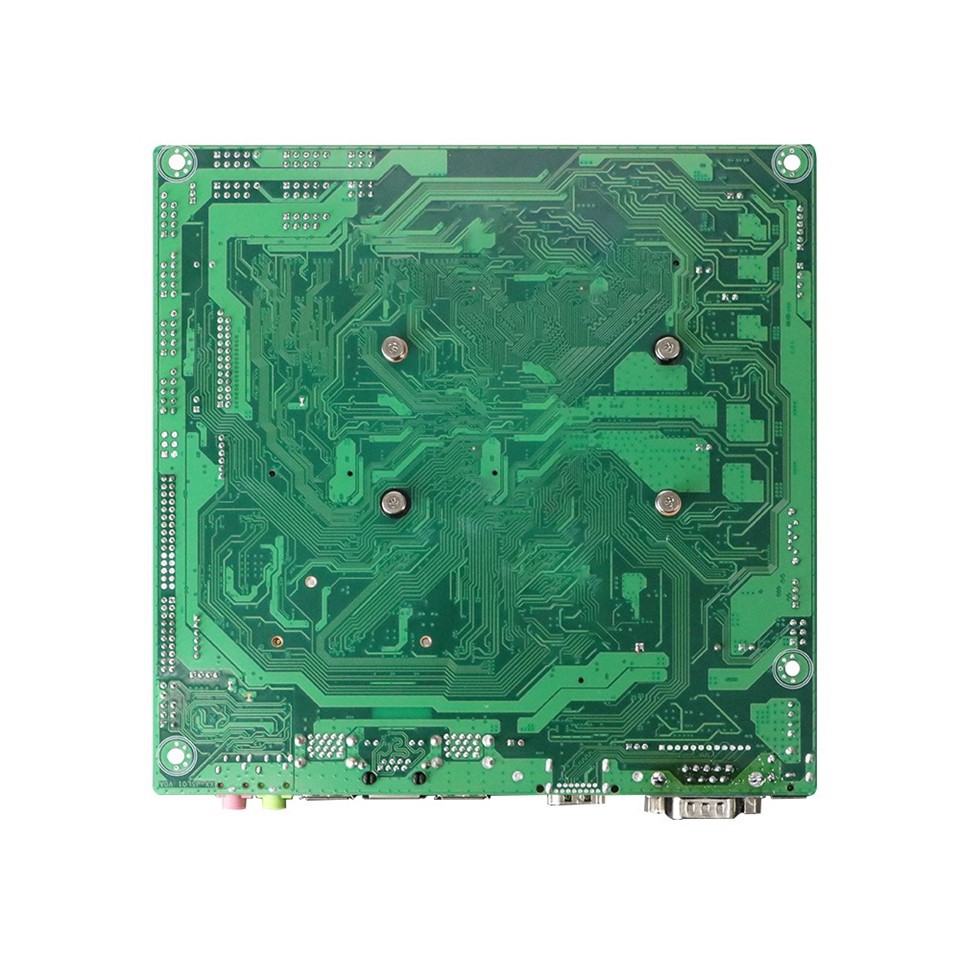

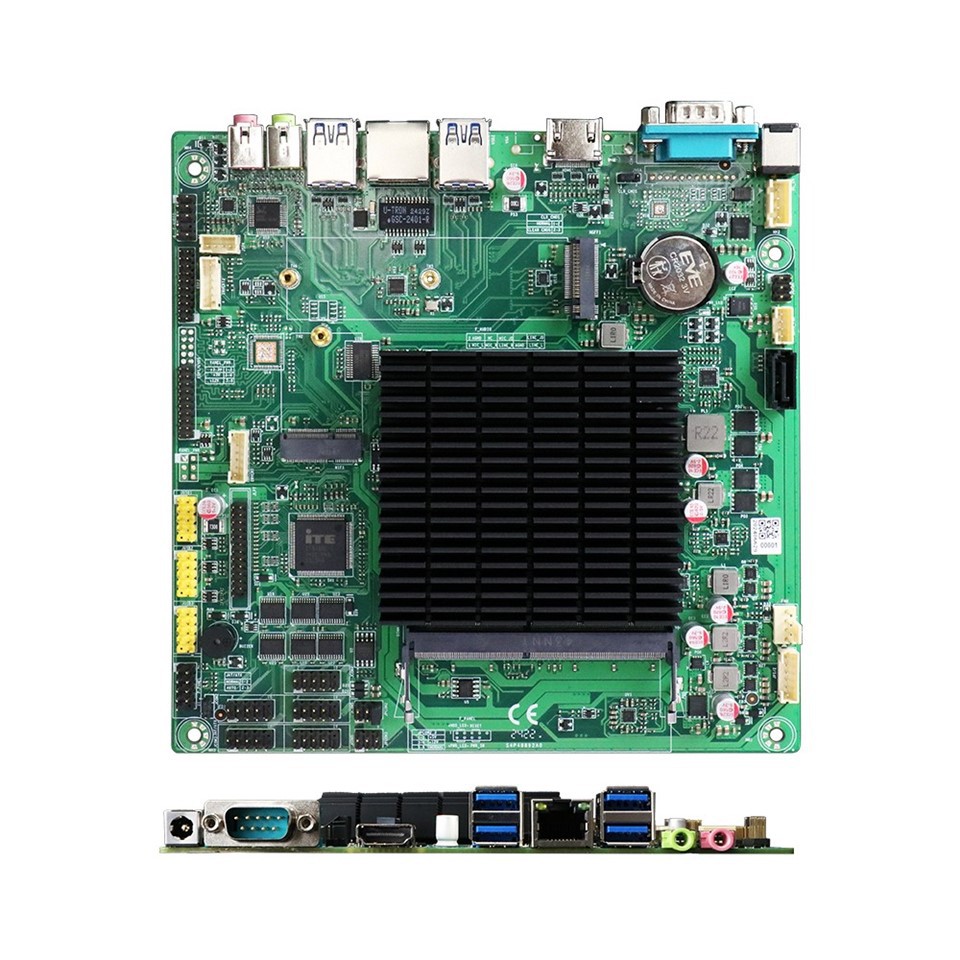

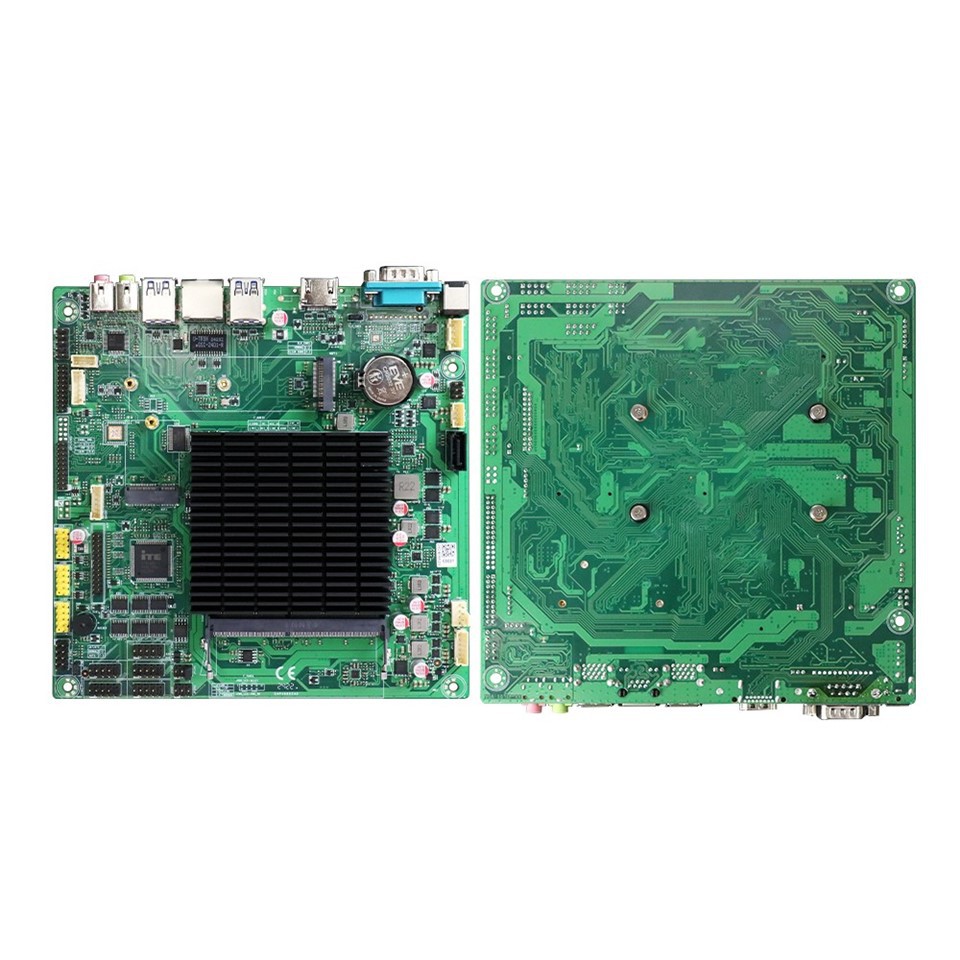

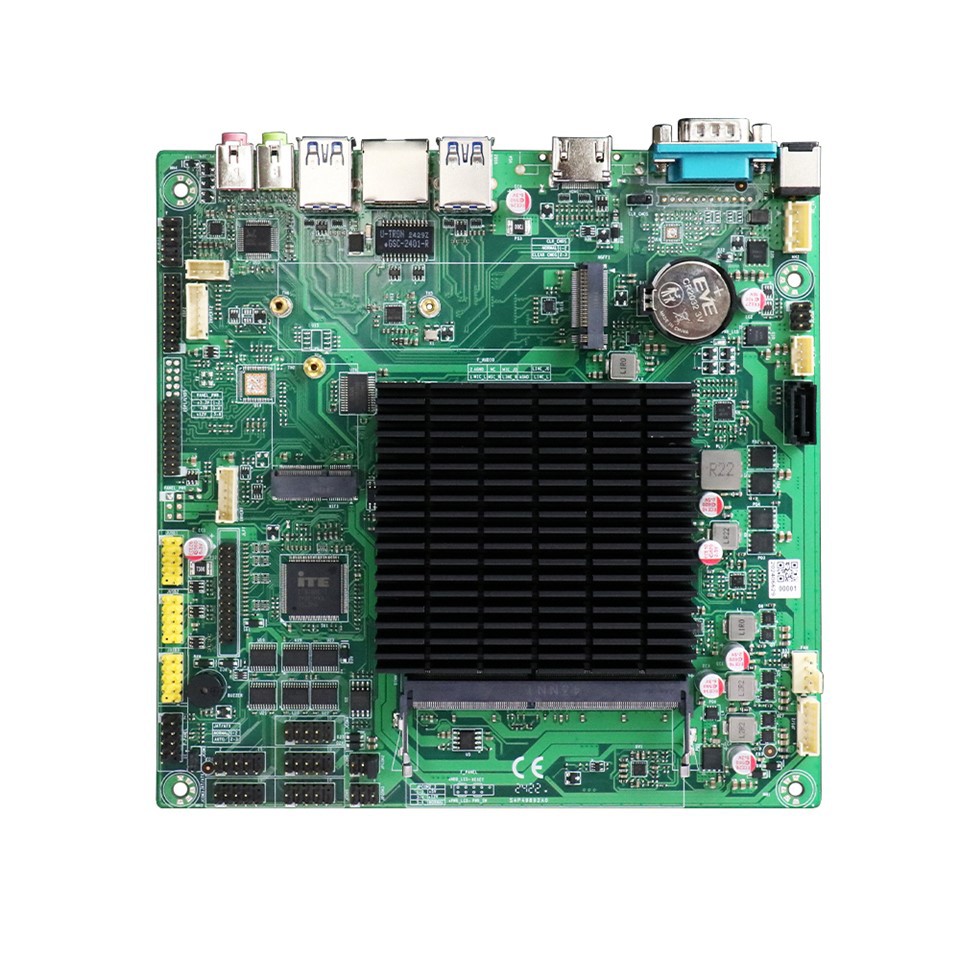

HM-N5095D16-UHL

◇ Txais Intel® Jasper Lake processor
◇ Intel® UHD Graphics
◇ 1 × DDR4 2933MHz SO-DIMM Ram, max 16GB
◇ VGA, LVDS, HDMI txhawb nqa triple zaub
◇ 4 × USB3.0, 6 × USB2.0
◇ 6 × COM, 1 × LPT, 1 × PS / 2
◇ 1 × RJ45 LAN (RTL8111H PCIe tsheb npav network daim npav nti), 1 × Mini-PCIe
◇ 1 × MSATA, 1 × SATA
◇ Kev them nyiaj yug saib xyuas, network wake-up thiab diskless khau raj.
◇ Tsim nyog rau cov khw muag khoom, kev pabcuam tus kheej, tag nrho-hauv-ib lub tshuab thiab kev lag luam tswj kev lag luam

HM-N5095D16-UHL

Nws yog Mini Itx Motherboard ntawm 170x170mm Loj, Yog Lub Ntiaj Teb Qhov Tsawg Tshaj Plaws X86 Platform.

◆ Txais Intel® Jasper Lake processor
◆ Intel® UHD Graphics
◆1 × DDR4 2933MHz SO-DIMM Ram, max 16GB
◆VGA, LVDS, HDMI txhawb nqa triple zaub
◆4 × USB3.0, 6 × USB2.0
◆6 × COM, 1 × LPT, 1 × PS/2
◆1 × RJ45 LAN (RTL8111H PCIe tsheb npav network daim npav nti), 1 × Mini-PCIe
◆1 × MSATA, 1 × SATA
◆ Txhawb kev saib xyuas, network tsim thiab khau raj diskless.
◆ Tsim nyog rau cov khw muag khoom, kev pabcuam tus kheej, tag nrho-hauv-ib lub tshuab thiab kev lag luam tswj kev lag luam

HM-N5095D16-UHL khoom parameters

CPU	Intel® Celeron® N{{0}}C/4T 2.0GHz (Tsawg 2.9GHz) 4M
Nco	1 x DDR4 SO-DIMM 2933MHz Ib Channel, Max 16GB
Duab	Intel® UHD Graphics
VGA	1 × DB15 (poj niam qhov) Chaw nres nkoj, 1 × Wafer
H-D-M-I	1 × Chaw nres nkoj
EDP1/LVDS	1 × Header (LVDS)
Multi Display	Triple Display
Cia	1 × SATA, 1 × MSATA
COM	6 × Chaw nres nkoj, COM2 txhawb RS232 / RS485, COM2 & COM3 txhawb RI / 5V / 12V yeem
Expansion Qhov	1 × Mini-PCIe, txhawb WIFI / BT 3G / 4G
Rov qab IO	1 × DC Jack 1 ×H-D-M-I 1 × VGA 4 × USB3 0 1 × RJ45 1000M LAN( RTL8111H) 1 × Kab-tawm, 1 × Mic-hauv
Sab hauv Txuas	1 × LVDS, 1 × JVGA 1 × Mini-PCIe, 1 × SIM 1 × F_Audio ,1 × JSPK 6 × JCOM 1 × JPS/2, 1 × JLPT 3 × JUSB , Expandable 6 × USB2 0 1 × SATA, 1 × MSATA 1 × F_PANEL ,1 × JCASH 1 ×CPU_FAN,1 ×SYS_FAN 1 × SATA_PWR ,1 × INVERT
Dimension	170 × 170 hli
PWR Input	DC 12 V
Kev ua haujlwm	0 ~ 60 degree, 10% ~ 90% RH, tsis-condensing
Cia	-25 ~ 75 degree, 5% ~ 95% RH, tsis-condensing
