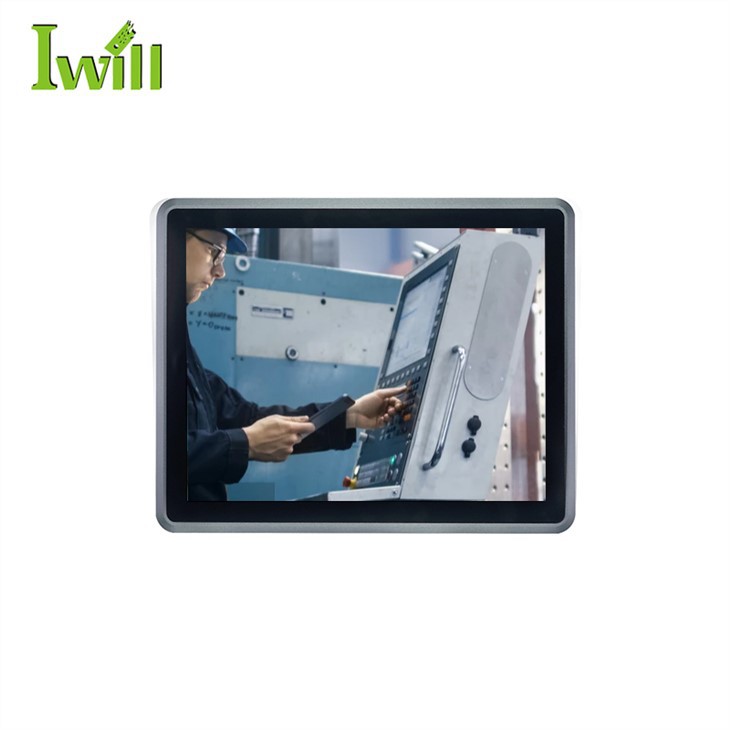

15 Nti Fanless Reselwelance Kov Vaj Huam Sib Luag
Tuag tuag nrum txhuas alloy moluding, fanless tsim;
◇ onboard Intel Whiskey Lake U series processor;
◇ Txhawb Nqa 9VV {{{- 36 V dav kev tawm tswv yim, thiab TPM2.0 kev ruaj ntseg encryption;
◇ Txhawb nqa TPM2.0, Windows 11;
Proportion 2 * RS232 / 422/485 com, 6 * com ntawm kev xaiv;
Txhawb 2 * Intle Lans, 4 * Intel Lans kev xaiv tau;
◇ IP65 tag nrho cov vaj huam sib luag hauv ntej;
◇ Thov OS:
Xa kev nug
Product Details of15 Nti Fanless Reselwelance Kov Vaj Huam Sib Luag
ITPC - A500 Intel Core Kuv} u 15 nti yog tib yam li A116 thiab A600 tab sis qhov loj me tab sis qhov loj me. Qhov no ib yog 15 nti, A116 yog 12.1 nti, thiab A600 yog 17 nti.
Qauv:ITPC - A500
- Xim:Titanium grey(customizable)
- Khoom siv:Txhuas Alloy Chassis
Cov kev xaiv processor:
- OnboardIntel Celeron 4205U(Dual - tus tub ntxhais, 2 xov, 1.8GHz, 2MB cache)
- OnboardIntel Core i5-8265U(Quad {- cov tub ntxhais, 1.6ghz, max turbo 3.9ghz, 6mb cache)
- OnboardIntel Core i7-8565U(Quar {- cov tub ntxhais, 1.8GHz, Max Turbo 4.6GHz, 8MB Cache)
Nco:
- Txhawb nqa 1 × ddr 4 2133 / 2400 sodimm qhov, txog 32GB max

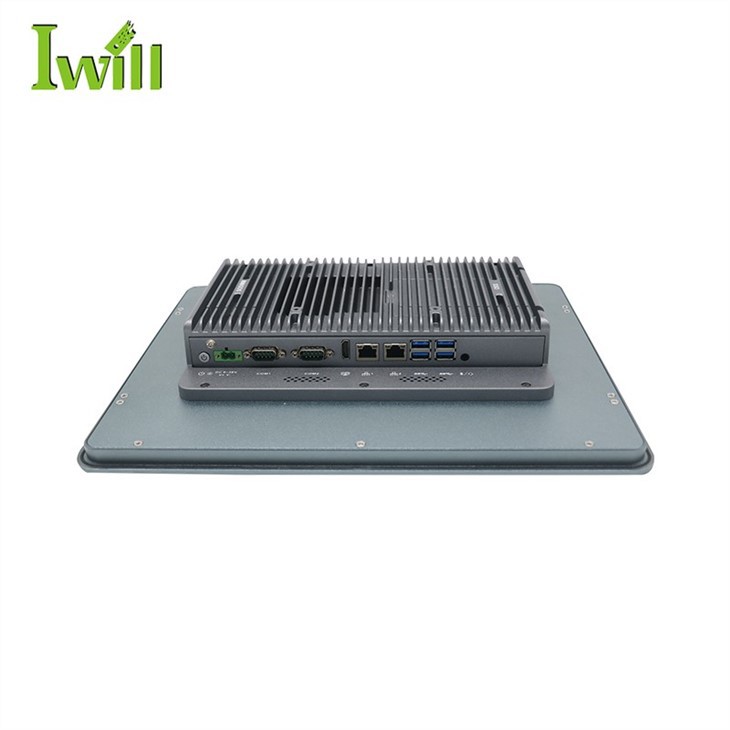

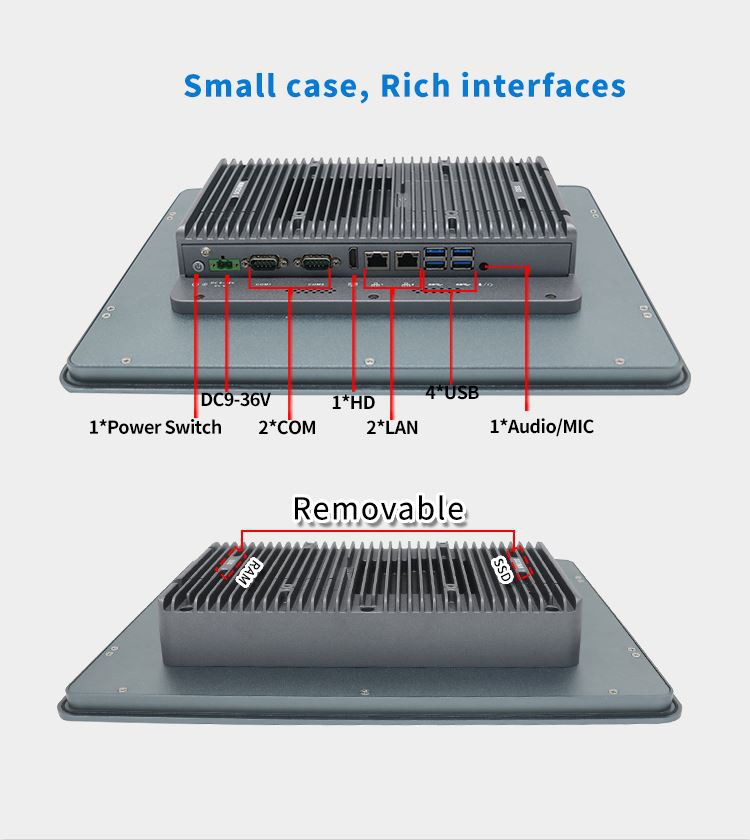

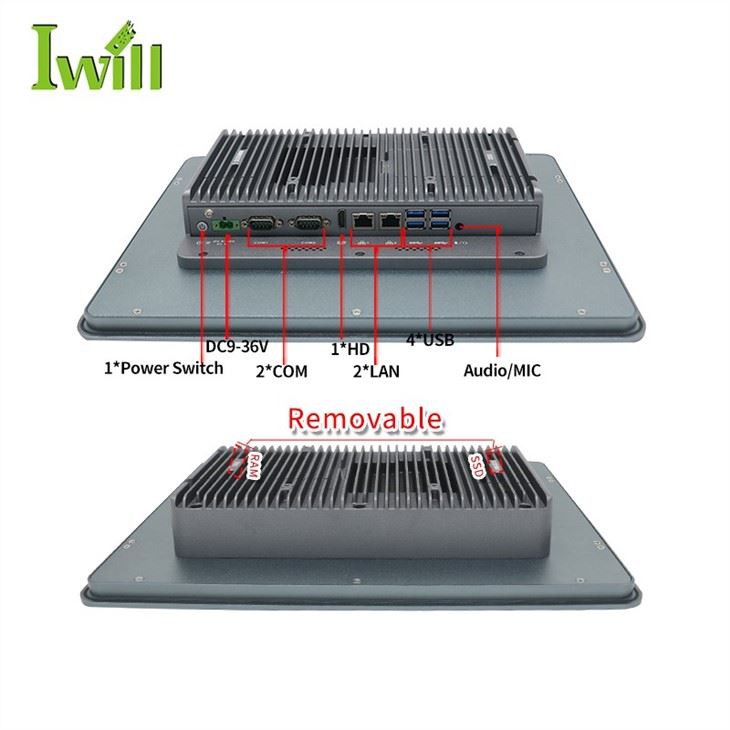

I / o interfaces:
- 1 × HDMI
- 2 × com (Com1 & com1 & com2: RS232 / RS422 / RS422 / RS485 yeem; nce mus rau 6 com
- 1 × hwj huam hloov
- 1 × 2-tus pin phoenix txuas rau lub hwj chim tswv
- 1 × audio tsho (txhawb nqa microphone thiab hais lus ib txhij)
- 4 × usb 3.0
- 2 × Intel 1000m lan (txog 4 lan ports xaiv tau)
Lwm Nta:
- TPM 2.0 Ruaj Ntseg Encryption
- Auto Power -} ntawm thaum lub hwj chim txuas nrog
- Teem Sij Hawm
- - ntawm - lan
- Pxe khau raj
- Watchdog timer (0-255 qib)
Nco tseg: Cov haujlwm no tsis tau qhib hauv cov qauv qauv.
Lwm txoj Kev Xaiv:
- GPO (8 inputs, 8 outducts)
- 2 × lan
- 4 × com
- 2 × USB 2.0
Nco tseg: Cov chaw nres nkoj no tsis suav nrog hauv cov qauv qauv.
Muab:
- Vijtsam loj:15 {- nti tft-lcd
- Brightness:350 CD / M²
- Saib lub kaum sab xis:Tag nrho saib lub kaum ntse ntse ntse
- Nam natio: 4:3
- Kev daws teeb meem: 1024 × 768
| Tus qauv | ITPC - A500 |
| Xim | Titanium grey (xim tuaj yeem yog customized) |
| Khoom | Txhuas Alloy Chassis |
| Processor | Intel Celeron 4205u Dual Cov Tub Ntxhais |
| Intel Me I5-8265U Quad Core | |
| Intel Core i7-8565U Quad Core | |
| Yam nco txog | 1 * DDR 4 2133} / 2400 sodimm nco qhov, max. Txhawb Nqa 32GB |
| Chaw ntim khoom | 1 * m {{.2 2280}}} Txoj Cai (SATA PROCOL), 1 * 2.5 "HDD, txhawb kev tua 0/1 |
| Os | Win10, Win11, Linux |
| Kev loj hlob | 1 * mini pcie slot (wifi / bluetooth / 3G / 4G xaiv, Embedded Sim Qhov) |
| Tso Chaw Nres Nkoj | 1 * HD, 1 * LVDs |
| 1 * Fais Zog Hloov, 1 * audio (txhawb nqa mic thiab hais lus tib lub sijhawm) | |
| 2 * com1 & com1 & com2 RS232 / RS422 / RS485 yeem, 6 * com yeem) | |
| I/O | 1 * 2pin fais fab mov Phoenix txuas |
| 4 * USB3.0, 1 * HD | |
| 2 * Intel 1000m Lan (4 * LAN yeem) | |
| Lwm Yam Ua Haujlwm | TPM2.0 Kev Ruaj Ntseg Ecryption, Auto Fais Fab Rau Thaum Muaj Hluav Taws Xob, Sij Hawm khau khiab, tsa rau Lan, PXE khau raj, Watchdog |
| Ua haujlwm temp | 0 Degree {{{{{}}℃(ua lag luam), - 20- +60℃(muaj ssd) |
| Ua Haujlwm Humi | 5% {- 95% tsis -}} kev ua yeeb yam |

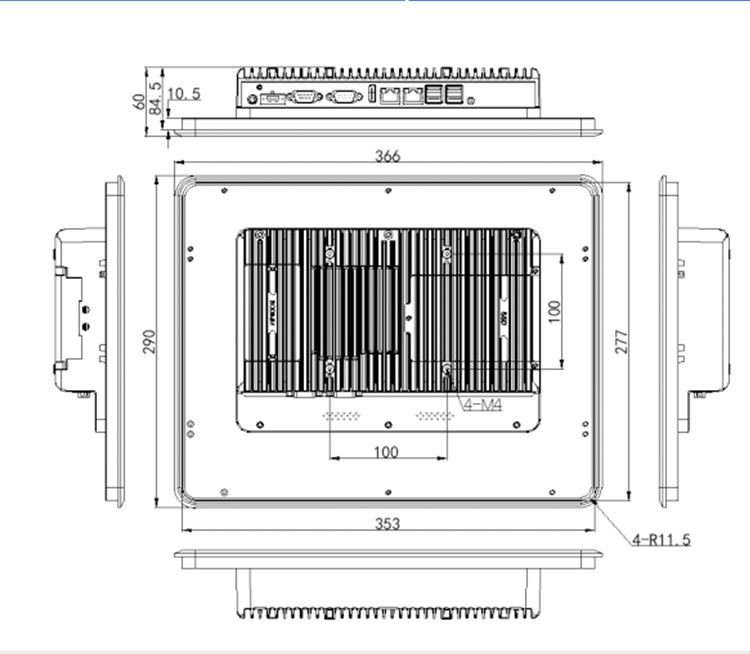

| Qho loj dav | 366 * 290 * 60 hli (Embedded Installation: 355 * 279 hli) |
| Qho hnyav | 3.9 kg |
Cov lus qhia sov:Yog tias koj nyiam nyob rau hauv no 15-nti fanless kev tsis kam kov vaj huam sib luag, cov khoom siv, kev daws teeb meem, thiab lwm yam. Txais tos hu rau!
